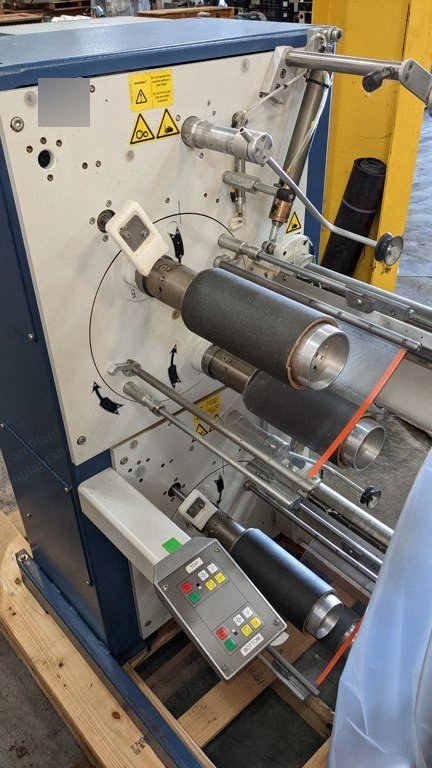

Sahm, 370XE, 2009, 2 Turret Winders, 220 to 3300 dtex, Traverse Length 190mm

Sahm, 370XE, 2009, 2 Turret Winders, 220 to 3300 dtex, Traverse Length 190mm

Description

  1. Overview
    1. No control cabinet included
    2. Voltage of the control cabinet was 400 volts, 3-phase, 50/60 Hz, but this is not included

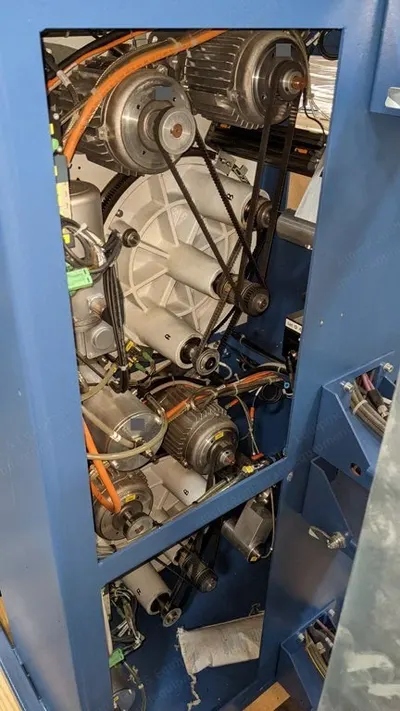

    3. Drives within the winders are 230 volts, 50/60 Hz
  2. Specifications
    1. Tube length: 200 mm
    2. Tube diameter: 100 mm
    3. 2 turret winders per section with automatic change
    4. Multifilament 220 to 3,300 dtex
    5. Tube I.D. 94 mm (3.7 inch)
    6. Tube O.D. 104 mm (4.09 inch)
    7. Tube length 216 mm (8.5 inch)
    8. Traverse length 190 mm (7.5 inch)
    9. Max diameter package 12.6 inches
    10. Speed 460 to 1,050 m/min
    11. Tension 50 to 1,200 grams
  3. Condition
    1. No control cabinet
  4. Included
    1. Pallet weight: 591 kg
    2. Pallet dimensions: 965 mm x 1,320 mm x 1,625 mm high
