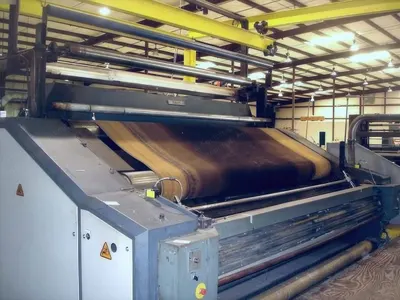

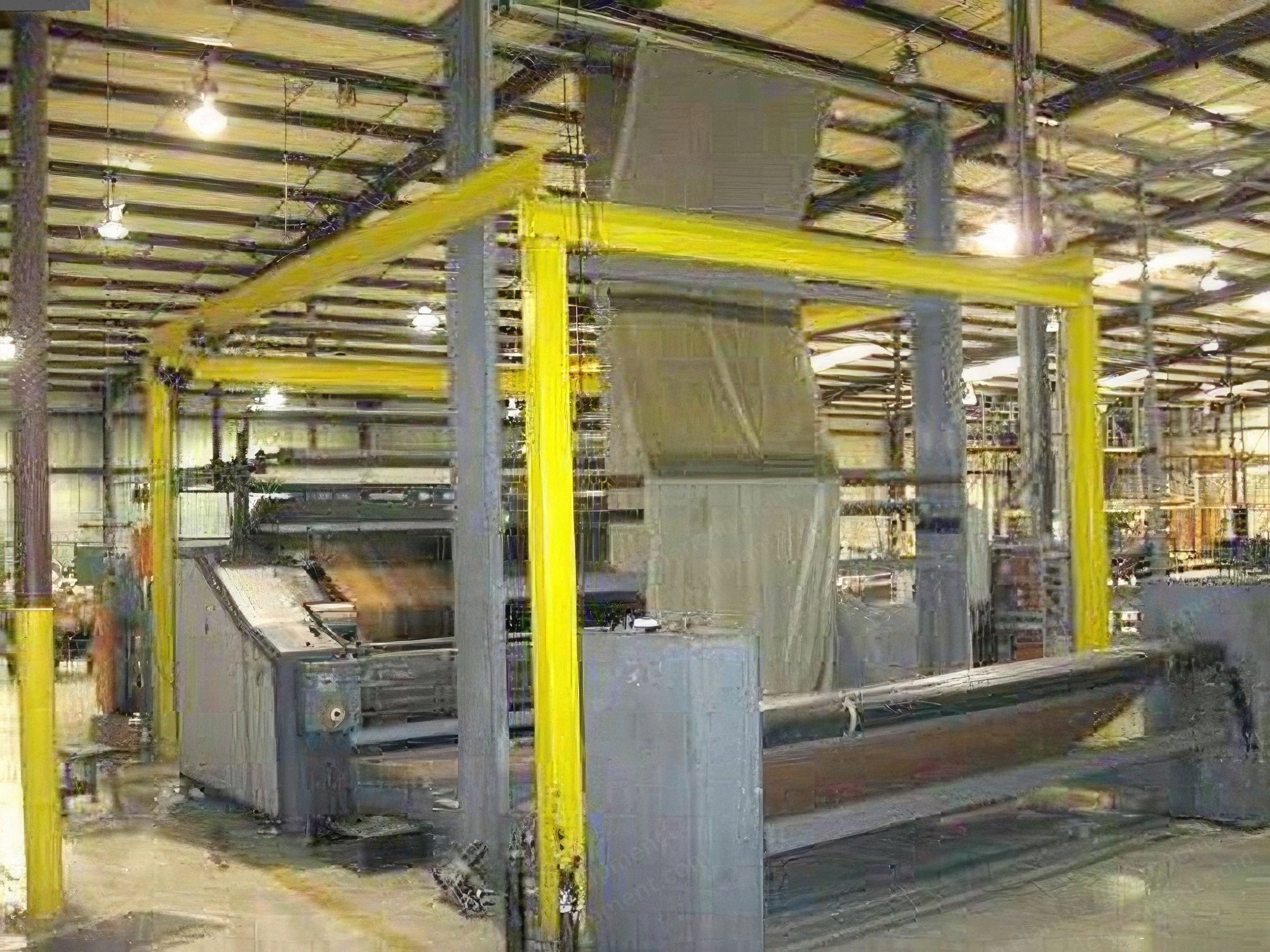

Klieverik, TC131, 1995, Transfer Calender, Printer, Laminator, 126" Belt, 30" Drum Diameter

Klieverik, TC131, 1995, Transfer Calender, Printer, Laminator, 126" Belt, 30" Drum Diameter

Description

  1. Overview
    1. 126-inch belt
    2. Year: 1995
    3. 30-inch diameter x 138-inch face cylinder with 126-inch blanket (Nomex)
    4. Onboard enclosed heating system
    5. Includes scray
    6. High entry with E&L KF-2040 guider
    7. Operator platform
    8. E&L width monitor
  2. Specifications
    1. Operating speed: 2 to 20 meters per minute
    2. Maximum drum temperature: 220° C / 464° F
    3. Diameter of heated drum: 760 mm (30.4)
    4. Blanket width: 3500 mm (140)
    5. Approximate footprint: 28 feet long x 16 feet wide
    6. Weight: 7400 kg (16,314 lbs)
    7. Drum diameter: 30 inches
  3. Included Components
    1. 4-roll accumulator 136-inch with 12 yard capacity

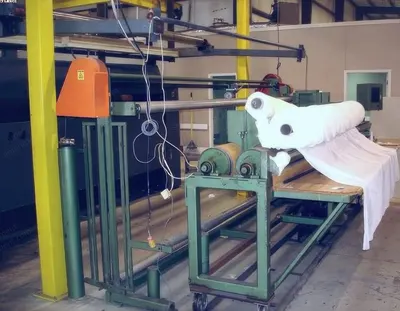

    2. 2-roll surface take-up with edge guiding and yardage counters
