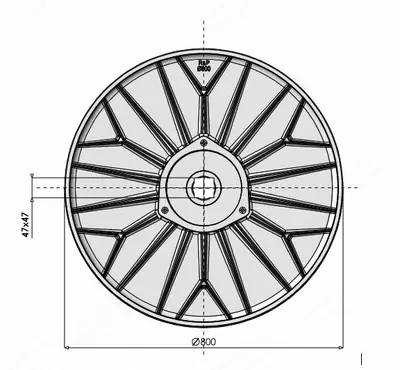

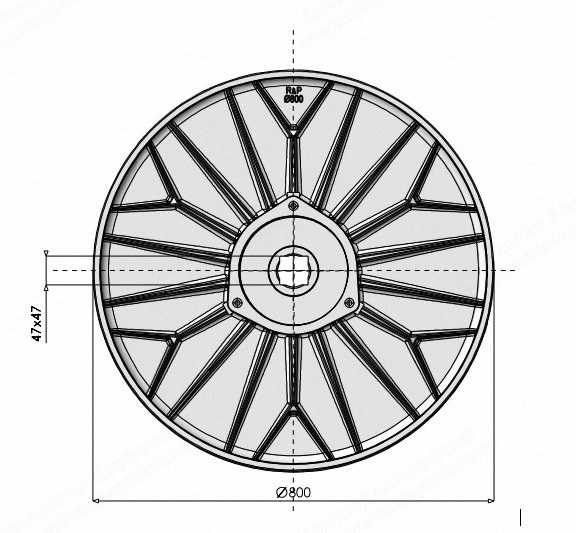

Description Item 001 Q2 type Warp beam MW 210 to suit Dornier looms Steel tube raw diameter: 219 mm Thickness: 6 mm Overall length: 2370 mm Threaded at both ends for the barrel for 700 mm each side Threaded at diameter 218 mm step 7 Steel forged end pieces with square hole 47 x 47 For bar 45 x 45 mm with 4 screws G ½” Without knotholes Outside surface electronically zinced Light metal alloy flanges, diameter 800 mm Suitable for natural and mixed yarns Equipped with light metal alloy clamping ring Item 002 Q1 type Warp beam MW 210 to suit Dornier looms Steel tube raw diameter: 219 mm Thickness: 6 mm Overall length: 2370 mm Threaded at both ends for the barrel for 700 mm each side Threaded at diameter 218 mm step 7 Steel forged end pieces with square hole 47 x 47 For bar 45 x 45 mm with 4 screws G ½” Without knotholes Outside surface electronically zinced Beams with flange diameter 900 mm Suitable for natural yarns
