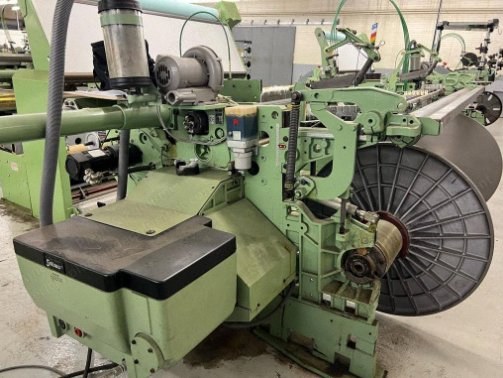

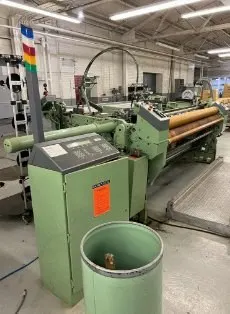

Dornier, HTVS 4/SD, 1995/1996, Rapier Weaving Machine, 2200mm Width, 4 Colors, Staubli 2667 RS Dobby

Dornier, HTVS 4/SD, 1995/1996, Rapier Weaving Machine, 2200mm Width, 4 Colors, Staubli 2667 RS Dobby Sold

Description

  1. Overview
    1. Working width: 2200 mm
    2. Year: 1995 (10 sets) and 1996 (3 sets)
    3. Electronic controller: Dialog 1
    4. Made for 480 voltage, 3-phase, 60 Hz
  2. Specifications
    1. Staubli 2667 RS dobbies with capacity 12 harness and 4 installed
    2. No filling feeders are supplied with the machines
    3. 2 steel heddle harness frames per machine
    4. 6 drop wire contact bar per machine
    5. One 1000 mm warp beam per machine
    6. 4 color mechanical color selectors
    7. With electronic warp let-off and take-up
  3. Condition and Features
    1. Full width temple bars installed on 9 machines with hot wire cutters installed
    2. Including Alexco of loom cloth take up with inspection screen
