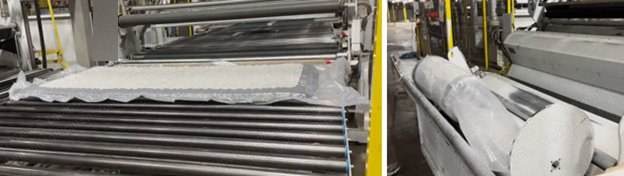

Teknomac, TK381/2+390, 2018, Mattress Roll Packing Machine, Max 14 inch Mattress Thickness, 13750 kg

Description

Overview
1. Make: Teknomac
2. Model: Tk381/2+390
3. Year: 2018
4. Total weight: 13750 kg
Specifications
1. Thickest mattress possible: 14” hybrid king mattress, fits in a 19” x 19” x 44” box
2. Largest dimensions of mattress we have run: California king 76” x 80” and 72” x 84”
3. Can comfortably run 12” mattress heights; thicker mattresses may run but depends on design of the bed “fill” material
4. Thinnest mattress possible is 6” high but anything smaller than that should run as well provided it is heavy enough for the belt to push it through the machine
5. Minimum diameter at exit: 10”
6. Maximum diameter at exit: 18”
7. Standard box size for 12” or less beds is 17.5” for king/queen and 14.5” for twin/full
8. Standard dimension at this point is 18.5” x 18.5” x 43”
9. Air pressure: 6 bar
10. Voltage: 400 volts, 3-phase + neutral, 50 Hz, 30 kW
11. Max exit diameter: 18 inches
12. Min exit diameter: 10 inches
Included
1. Includes entry conveyor and exit conveyor

Capacity	Max 14 inch mattress thickness, Min 6 inch mattress thickness
Included	Entry conveyor and exit conveyor
Largest Mattress Run	California King 76x80 inches & 72x84 inches

Motor power	30 kW
Voltage	400 V
