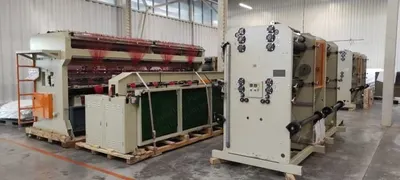

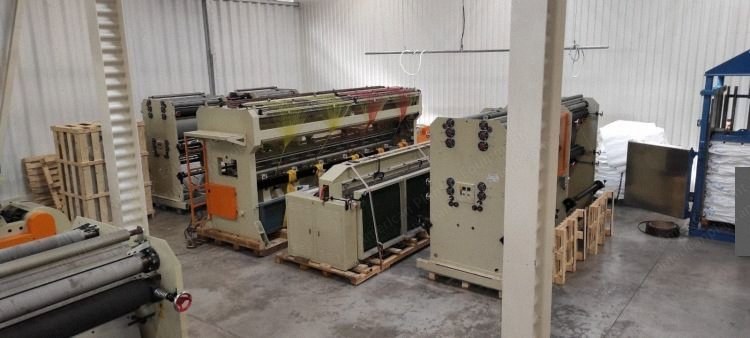

Description Overview Consisting of 2 raschel knitting lines Item 001: Raschel Knitting Line With Auto-Cutting Device Complete line for onion / potatoes / fire log nets, year 2020 Model: DR2-170-F Width of needle bar: 170 inches Gauges of needle bed: 6G per inch Number of guide bars: 9 bars (4 ground bars + 5 function bars) Number of needle bar: 2 individual bars with latch needle Guide and latch needle: 2G per inch Drive of knitting element: eccentric shaft driving Yarn supply: slitting and extension machine synchronized with knitting machine Yarn feed and tension: 4 sets of 3 rollers unit controlled by motor with inverter Pattern drive: pattern drum with chain link Main motor: TECO (Taiwan), 10 HP Inverter: Delta (Taiwan) Inching drive: controlled by main motor with inverter Fabric take-up drive: 3-rollers driven by gear box Auto cutting device: heat cutting device, 3 kW; driven by 0.5 HP motor with PLC control Electric counter with panel control box Item 001: Operation Condition Room temperature: not over 40°C, difference is less than +/- 10°C Air humidity: around 65% Floor loading: minimum 1000 kg/m², better over 1500 kg/m² Item 002: Raschel Knitting Line With Auto-Cutting Device Complete line for onion / potatoes / fire log nets, year 2020 Model: SE-120-N2 Available film width: 1180 mm Available roll diameter: 1000 mm Take-off roller: 3 pcs/unit roller x 16 units driven by motors with inverter Blade thickness: 0.25 mm Washer: 5 mm for main use, 3.5 mm for spare Electric control synchronized with knitting machine Item 002: Operation Condition Room temperature: not over 40°C, difference is less than +/- 10°C Air humidity: around 65% Floor loading: minimum 500 kg/m², better over 800 kg/m² Item 002: HDPE Film Requirement Blow-up ratio: 1.2 ~ 1.5 Film width (max.): 560 mm or 1180 mm Film thickness: 60 micron ~ 80 micron (0.06 mm ~ 0.080 mm) Film condition: good quality film without wrinkle or fold inside Iron pipe: I.D. 84 mm to 89 mm
