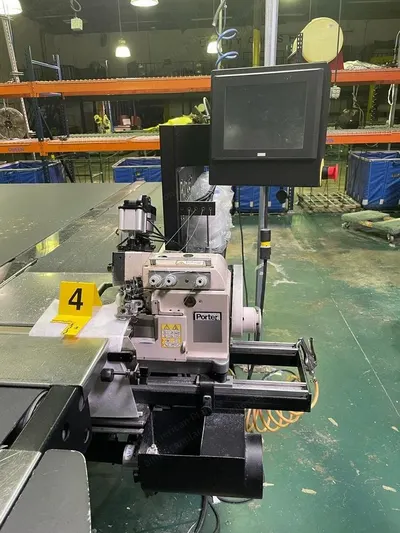

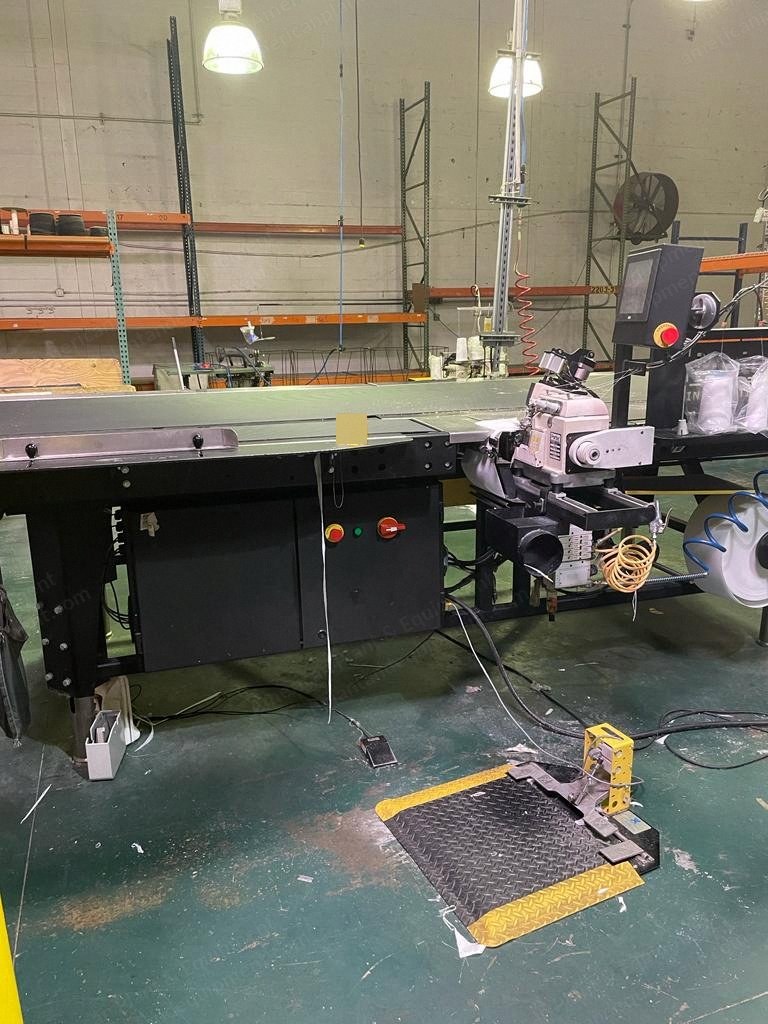

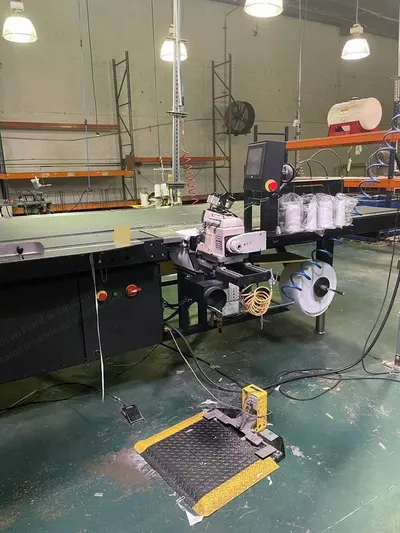

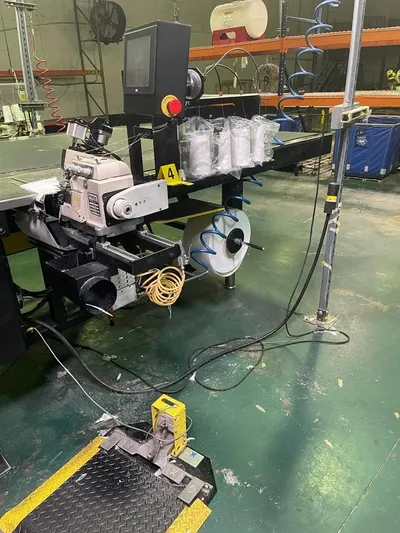

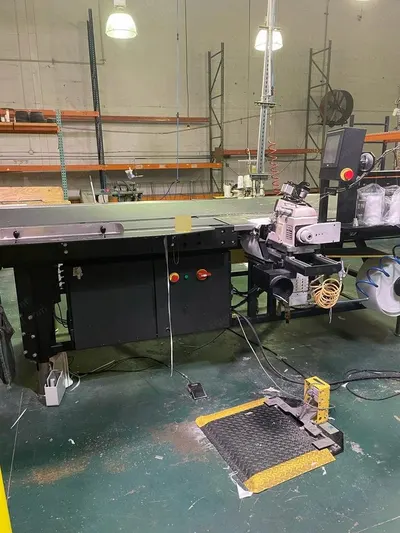

Porter, EST-501, Serger Flanger, with Automatic Conveyor Feed, 4000 RPM Max Sewing Speed

Porter, EST-501, Serger Flanger, with Automatic Conveyor Feed, 4000 RPM Max Sewing Speed

Description

  1. Overview
    1. Model number: Est-501

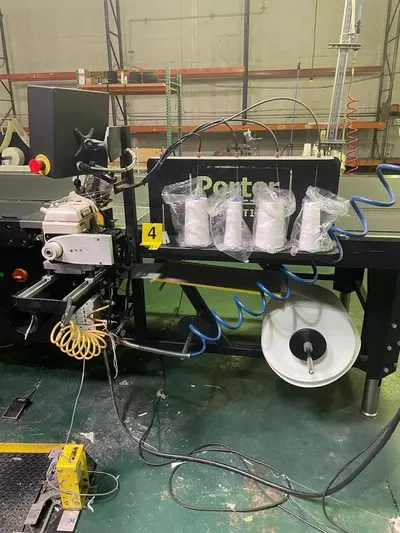

    2. Ergosmart table from Porter International, a motorized belt table equipped with a powerful Pfm-4000 flanger
    3. Designed to flange the thickest, densest mattress panels in the industry
    4. May improve production by reducing operator fatigue, simplifying training, and improving finished quality of mattress panels
    5. With automatic conveyor feed
  2. Specifications
    1. Max sewing speed: 4000 rpm
    2. Recommended sewing speed: 3600 rpm
    3. Max panel thickness: 4 in (100 mm)
    4. Min panel thickness: 1/2 in (12 mm)
    5. Spi: 4
    6. Yield: 900 +/- panels per 8-hour shift
    7. Seam width: 1 in (25 mm)
    8. Presser foot height: 5/32 in (12 mm)
    9. Needle type: 135 x 7
    10. Needle size: 22-24
    11. Needle size: 6z7027 135 x 7 #24
    12. Voltage: 220/240 vac single phase (alternative voltages available)
    13. Current: 30 amp (max)
    14. Air pressure: 80 psi
    15. Air consumption: 6.00 scfm @ 80 psi
    16. Weight (gross): 2800 lbs (1270 kg)
    17. Shipping dimensions: 192 in x 72 in x 60 in (4880 x 1830 x 1520 mm)

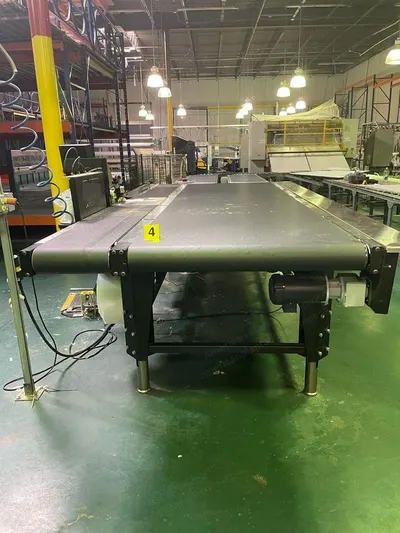

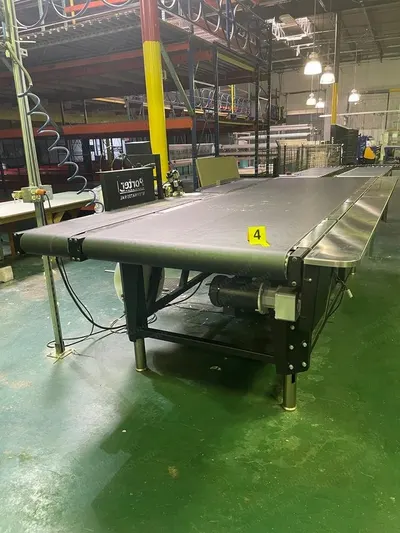

  3. Conveyor System
    1. Conveyor is rubber belt
    2. Width: 46 3/4 inches
    3. Length: 150 inches (12 feet 6 inches)
    4. 4 thread positions
    5. 1 foot pedal
    6. Under the conveyor belts there are 3 motors
    7. Motor brand: Marathon
    8. Motor model: Lvg
    9. Motor poles: 4
    10. Motor volts: 230/460
    11. Motor hz: 4-60-120
    12. Motor hp: 05-1-1
    13. Motor rpm: 90-1725-3520
    14. Motor volts: 0-460-460

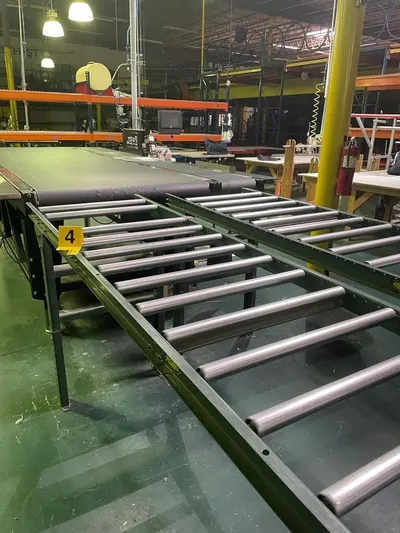

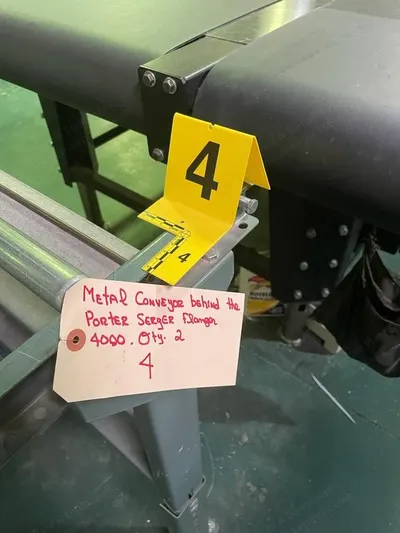

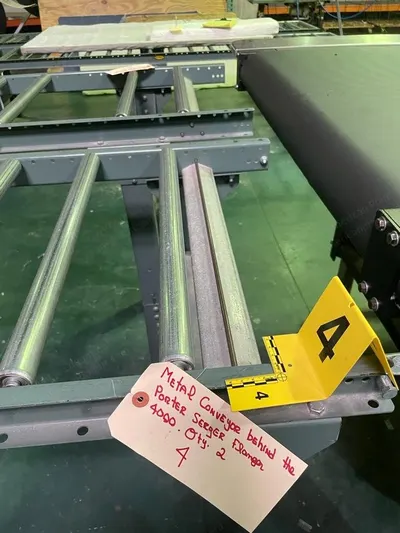

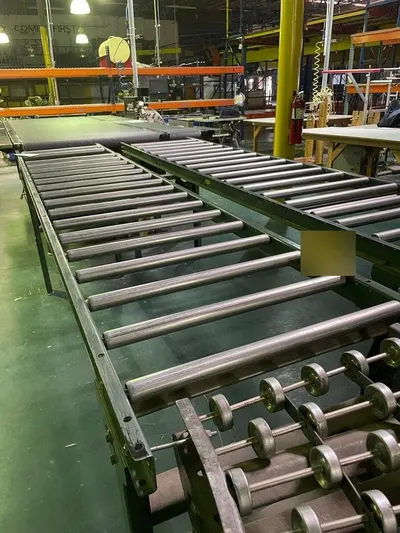

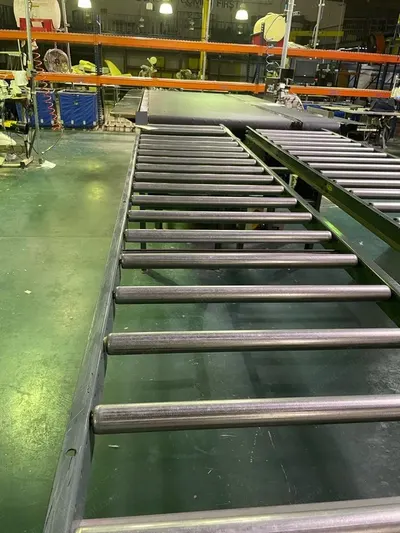

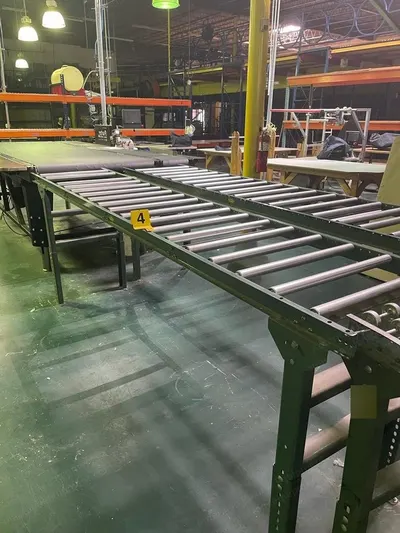

    15. (2) conveyors with rollers attached to the serger flanger: working width 21 1/2 inches, overall width 24 inches, length 10 feet each

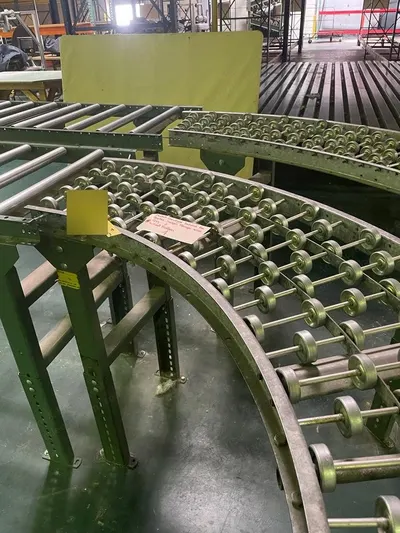

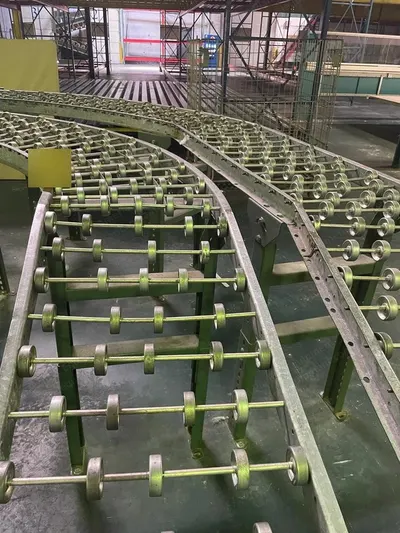

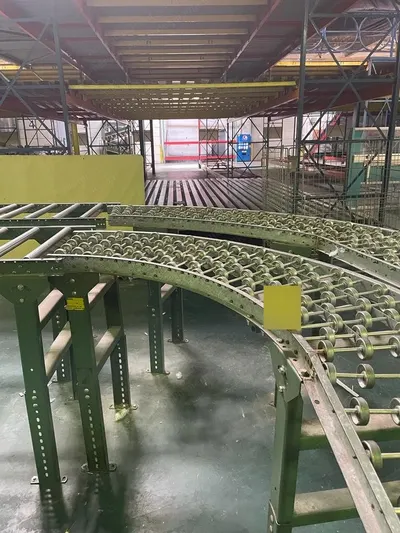

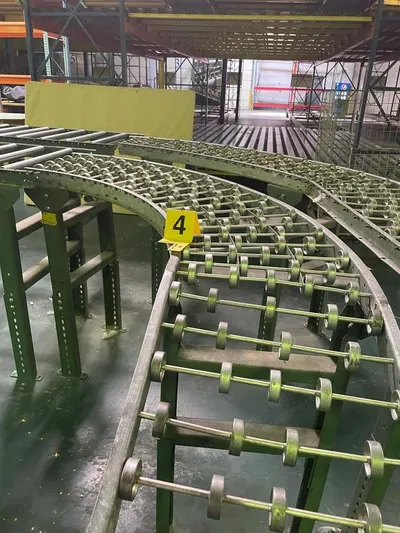

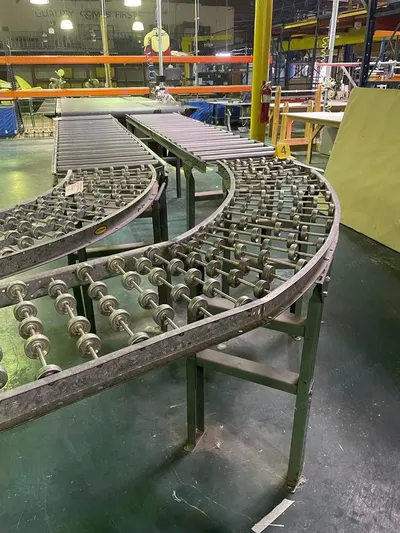

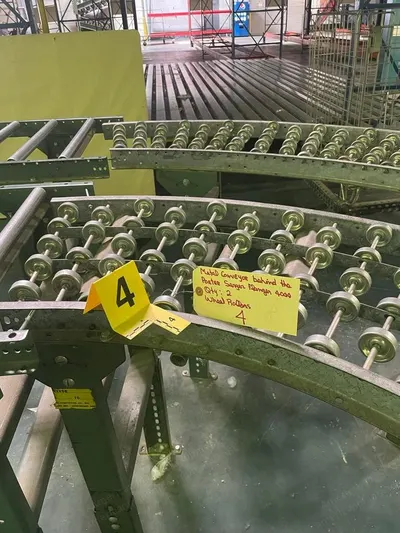

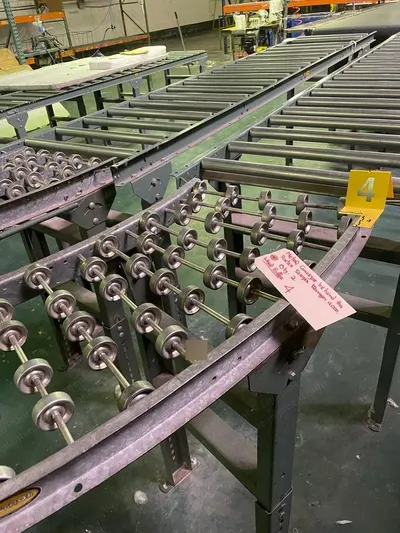

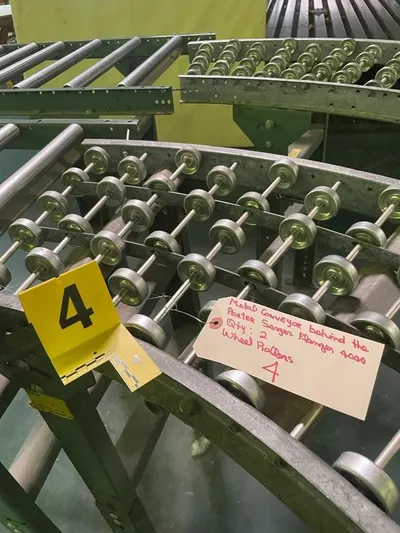

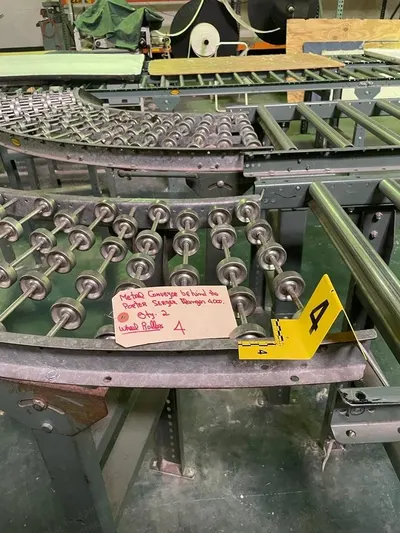

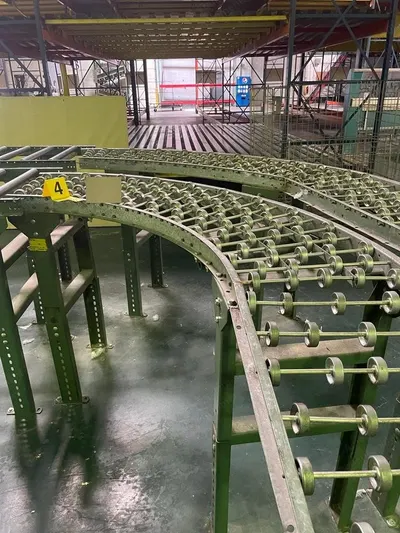

    16. (2) conveyors with wheel rollers (curve conveyors) attached to the serger flanger
  4. Features and Benefits
    1. The table can be raised or lowered for operator comfort at the touch of a button
    2. The motions of the belts are synchronized with the flanger sewing head, effortlessly moving panels through the flanging operation with minimal effort from the operator
    3. A built-in guide helps ensure panels are finished with clean, straight edges
    4. The Est 4000 helps create more consistently sized panels
    5. Sensors communicate the position of the panel to the belt motors, indicating whether they need to move in the same direction for straight-line flanging or turn in opposite directions to rotate the panel for the next side
  5. Condition
    1. Used industrial machine
