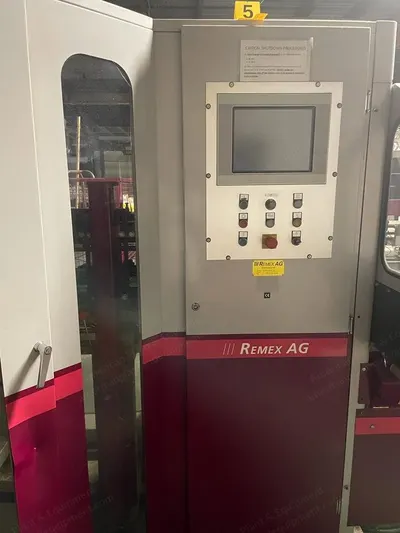

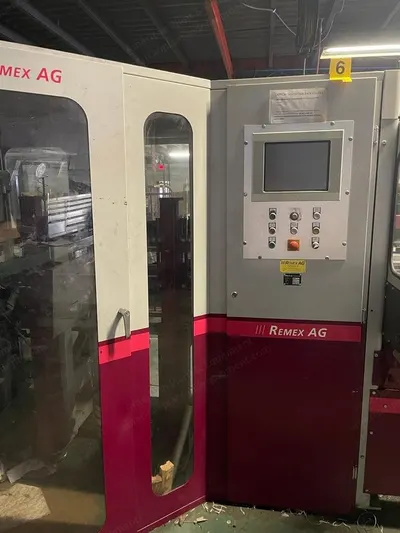

Remex, RC-247, 2009, Coiler and Assembler Tandem Machine, 100 Coils per Minute, 2100mm Working Width

Remex, RC-247, 2009, Coiler and Assembler Tandem Machine, 100 Coils per Minute, 2100mm Working Width

Description

  1. Overview
    1. Make: Remex

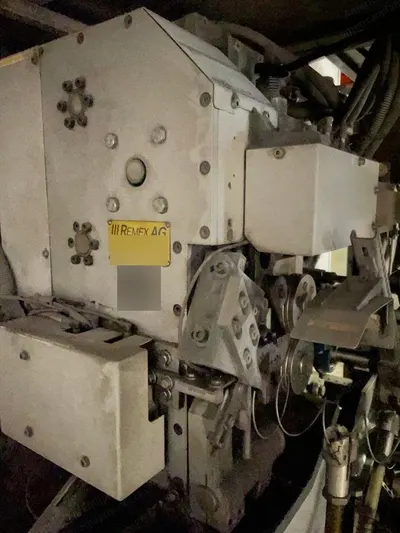

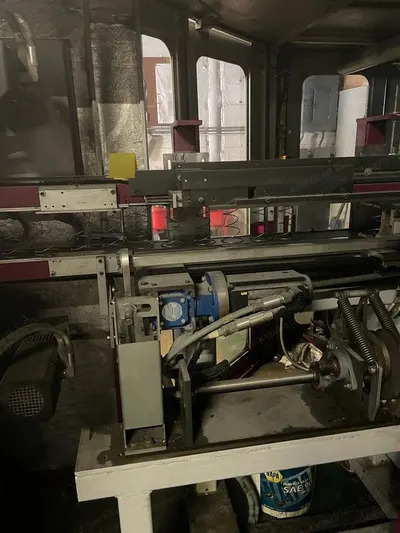

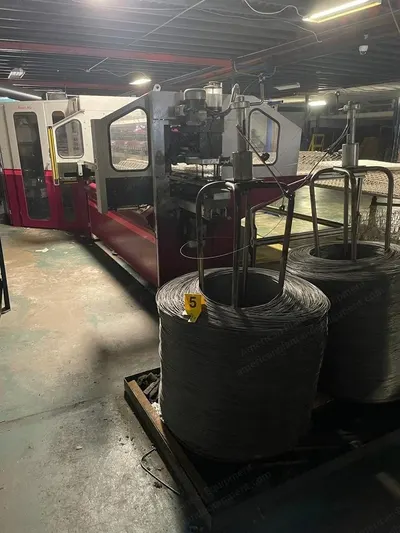

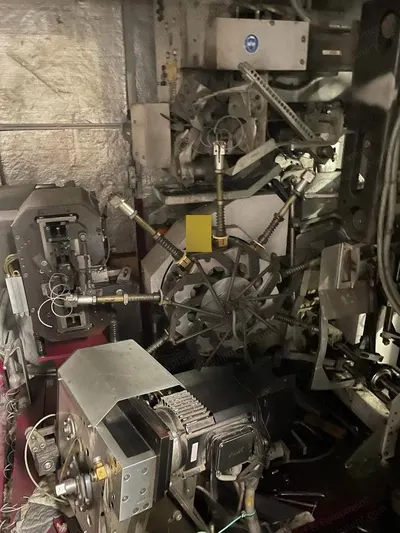

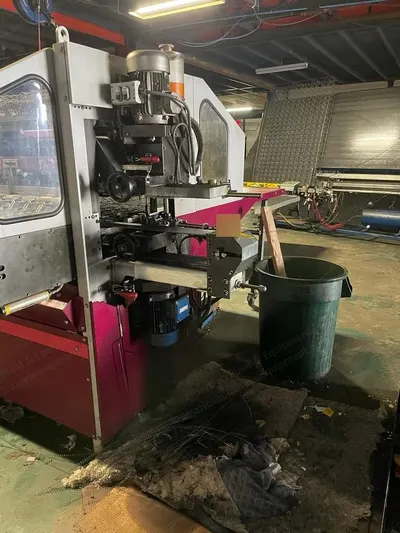

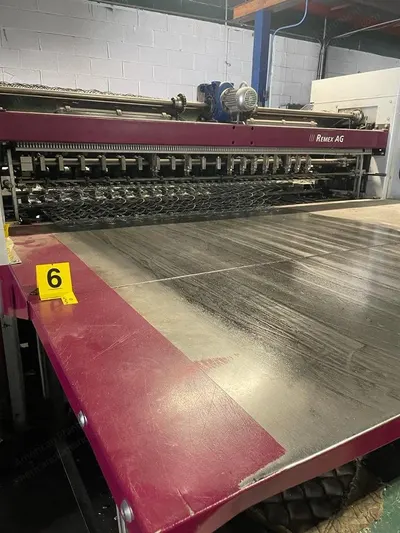

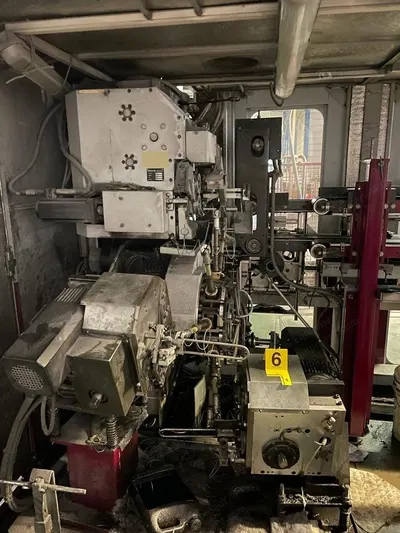

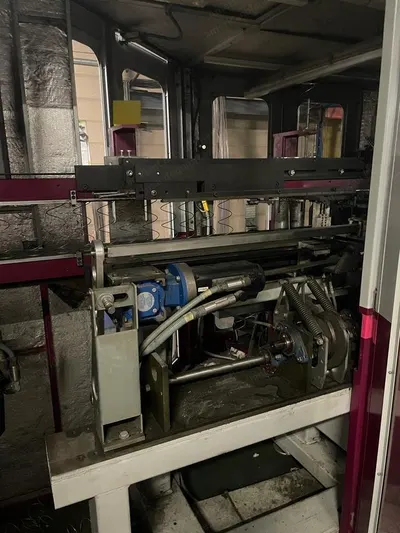

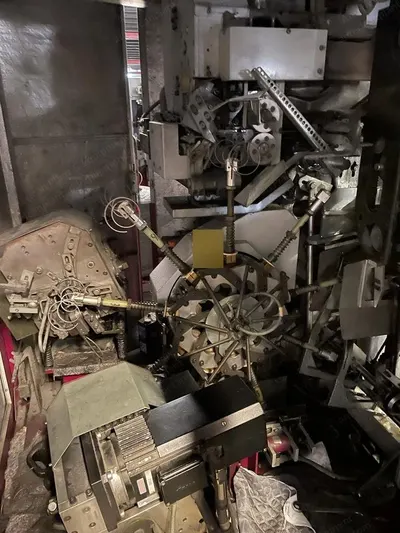

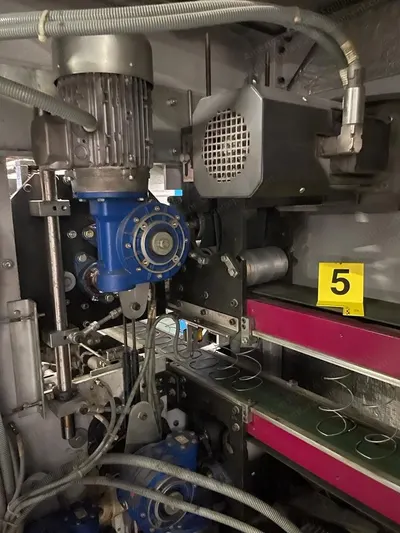

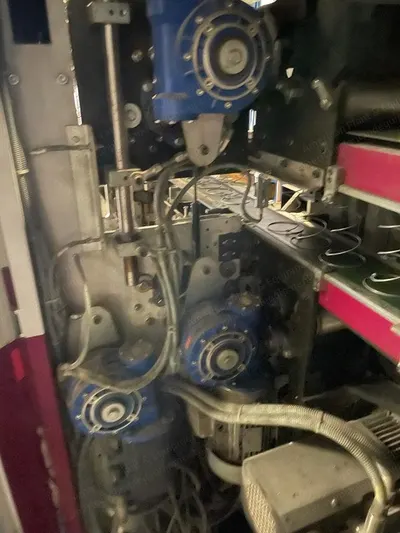

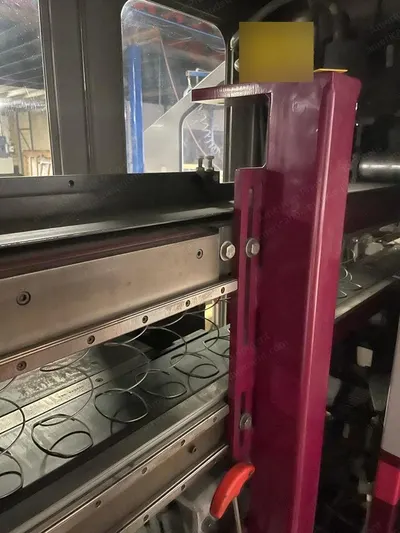

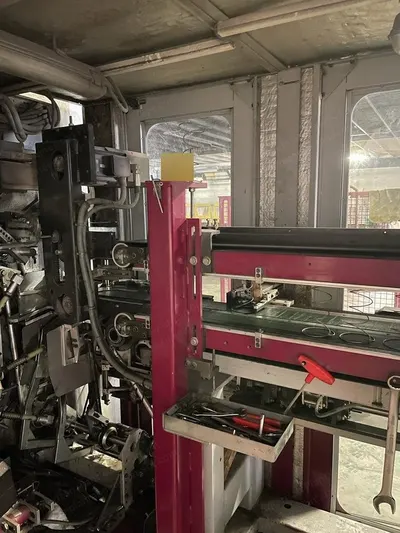

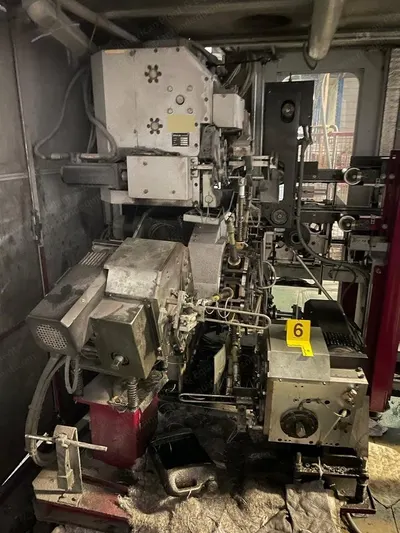

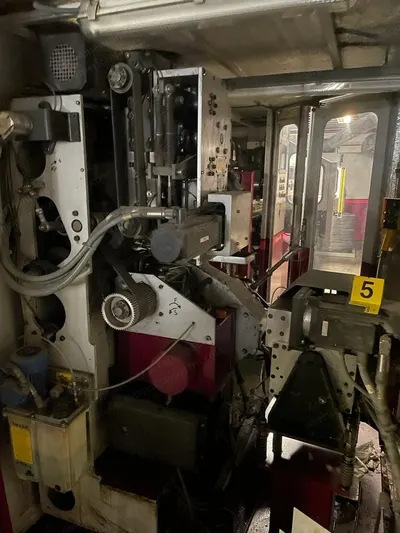

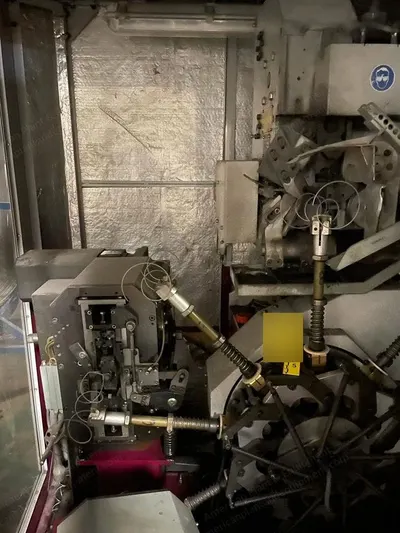

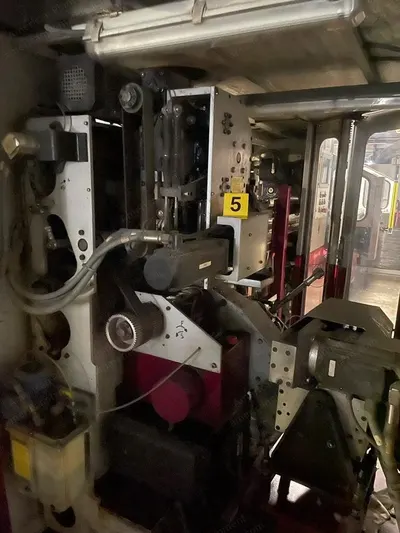

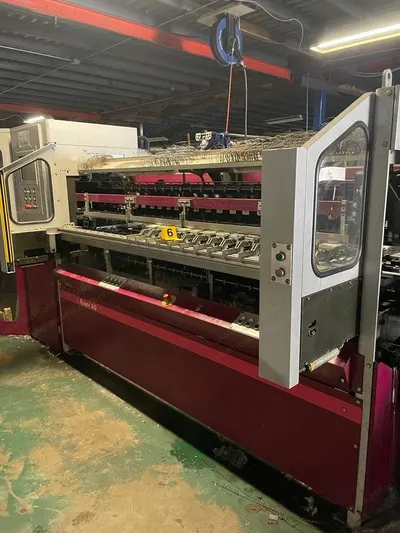

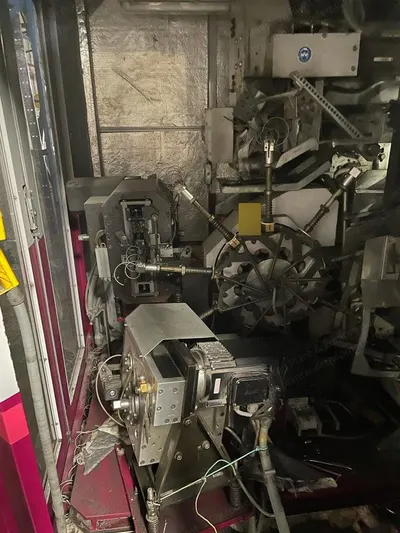

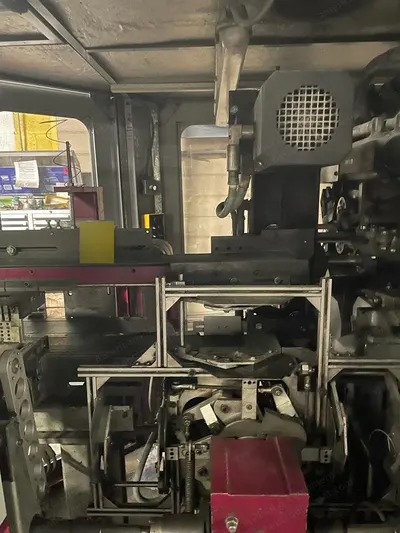

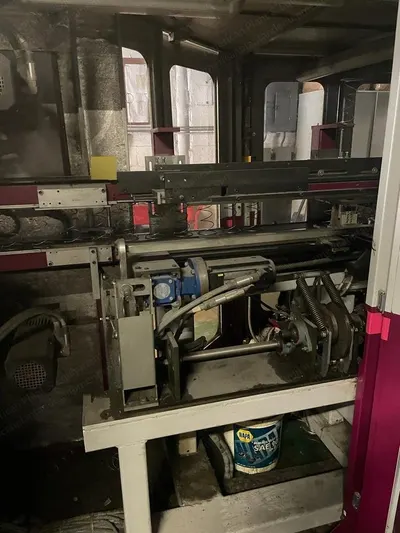

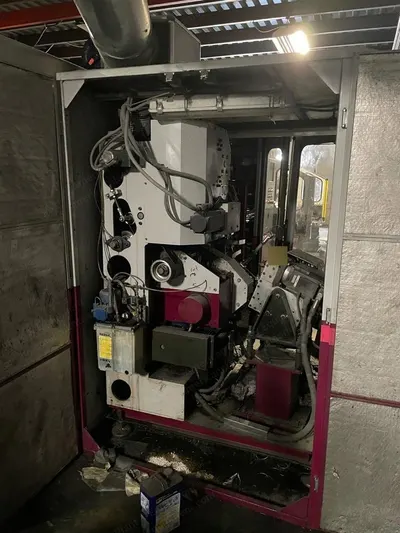

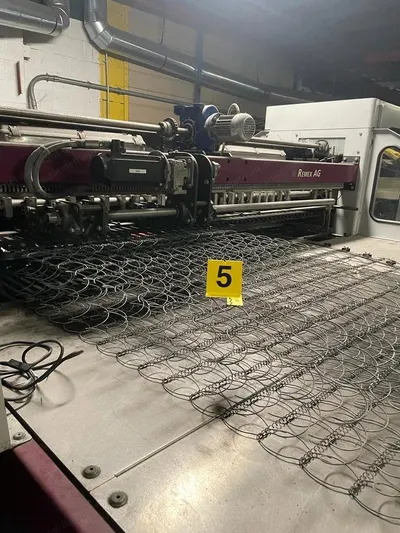

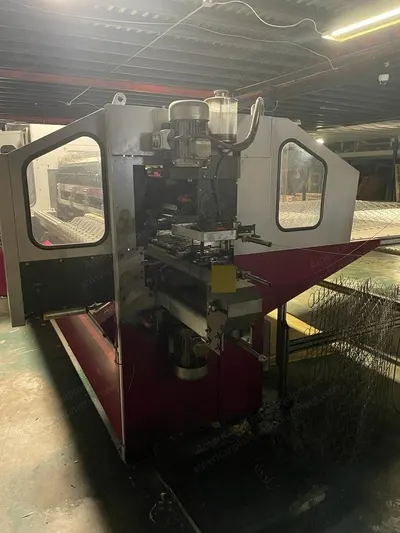

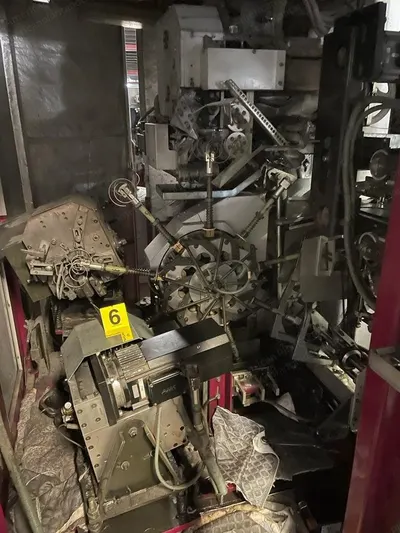

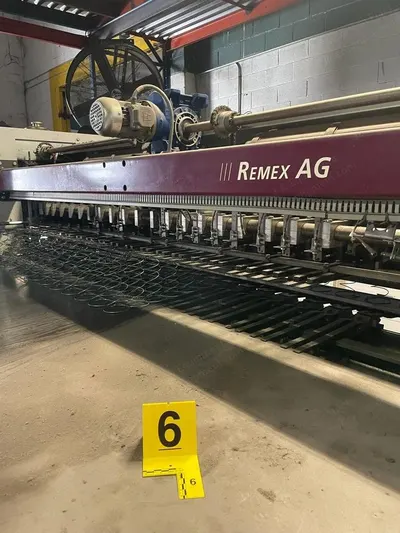

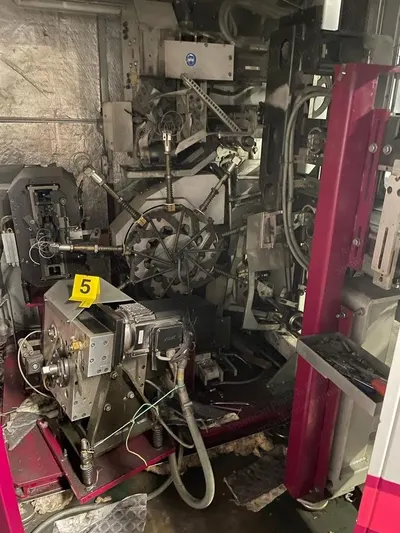

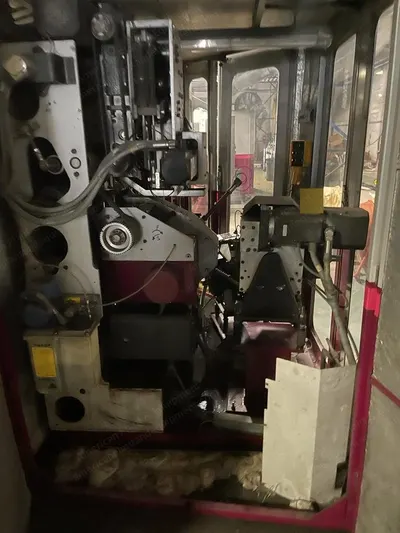

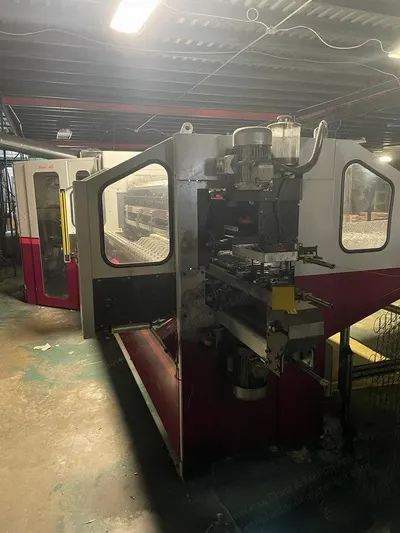

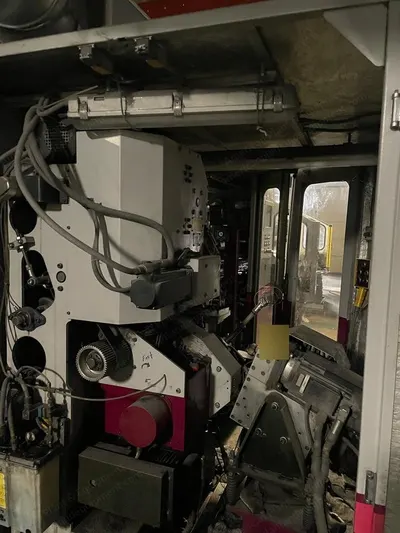

    2. One coiler placed in tandem with one assembler
    3. These are tandem machines

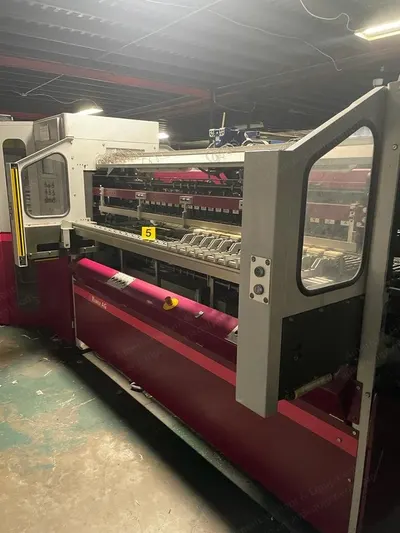

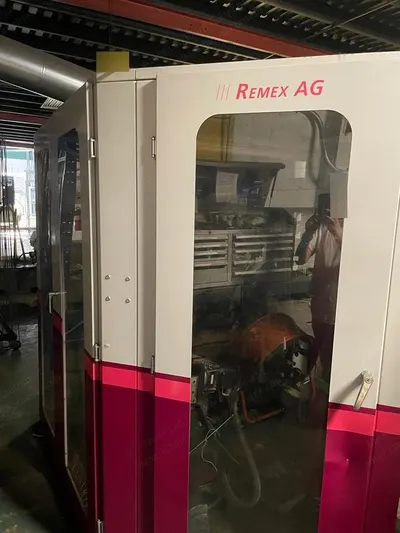

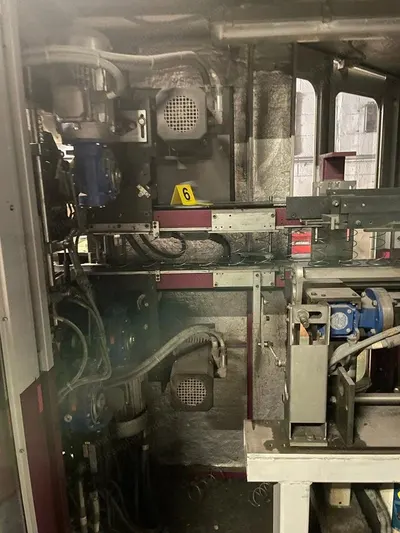

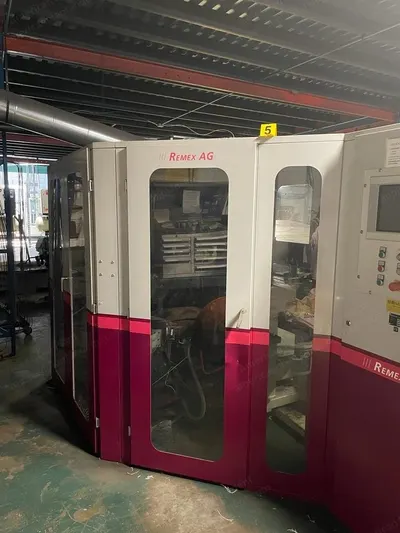

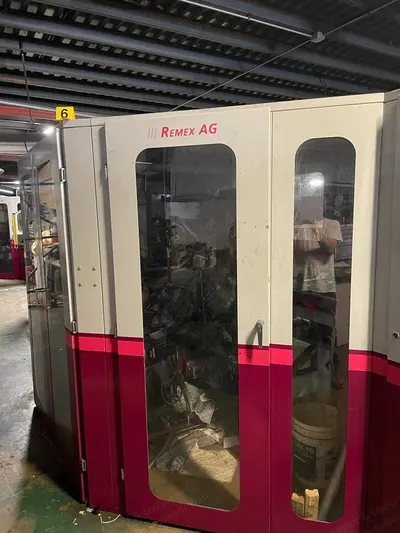

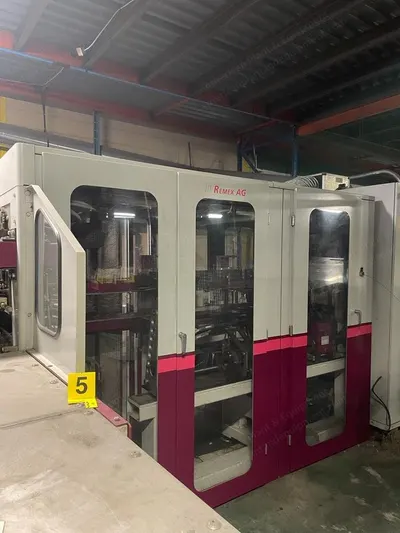

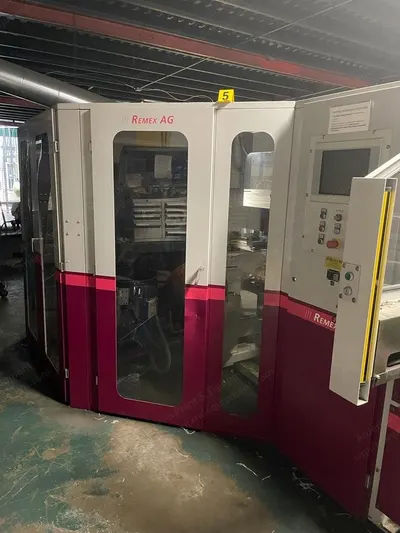

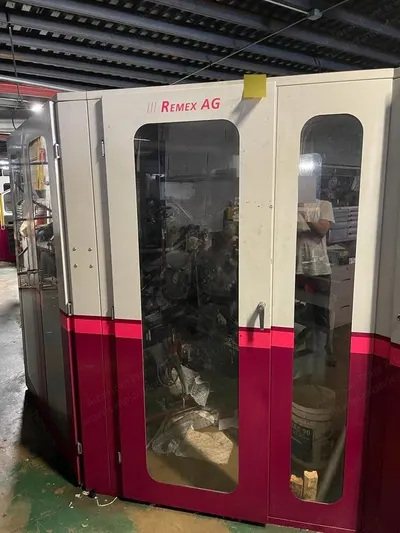

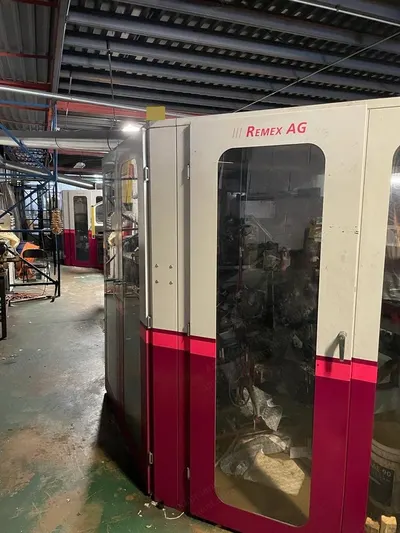

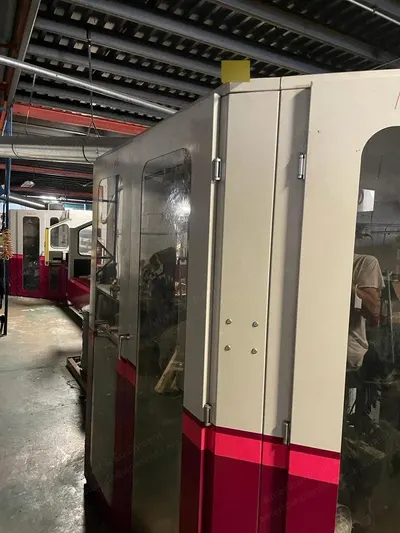

    4. All contained in a sound-proof enclosure
  2. Specifications

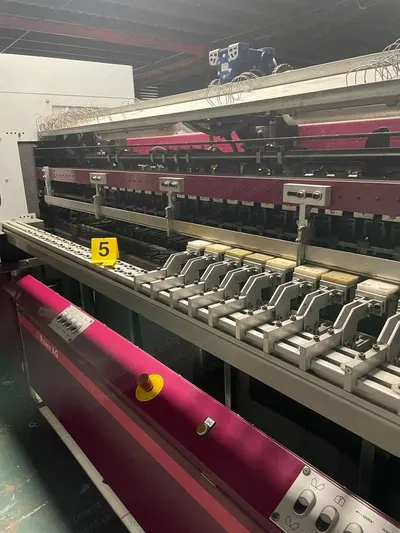

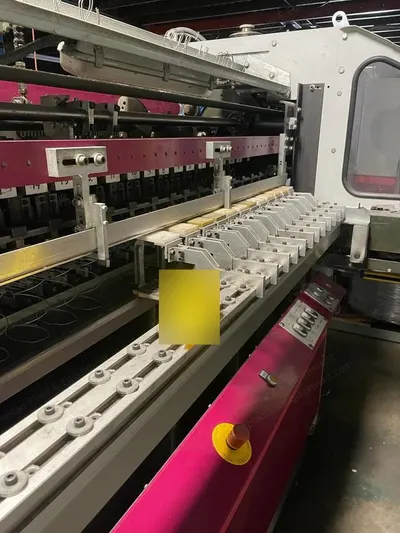

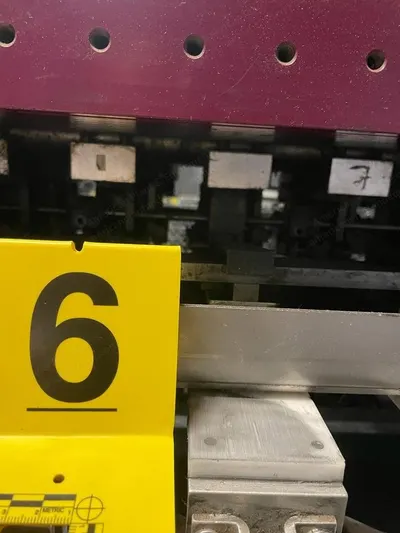

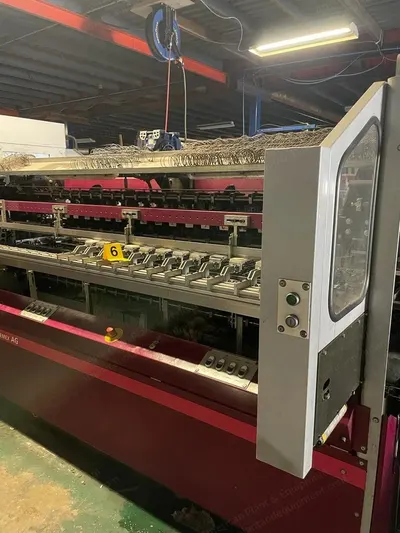

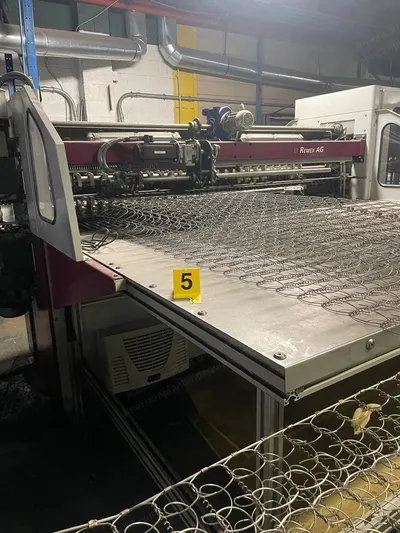

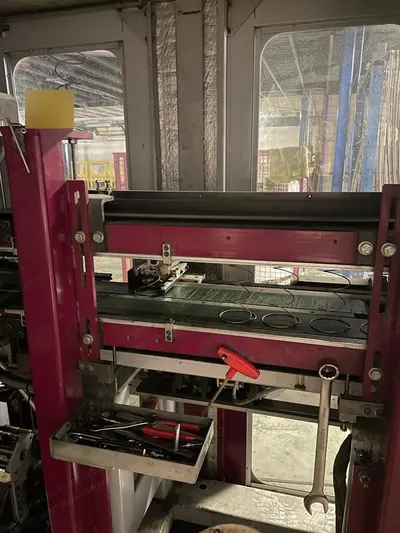

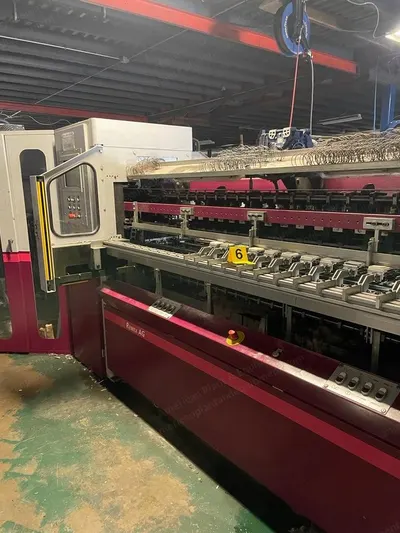

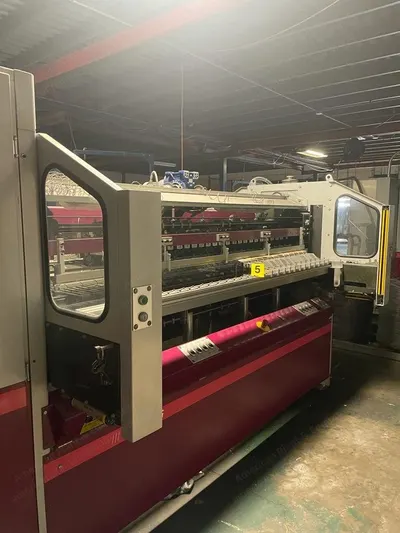

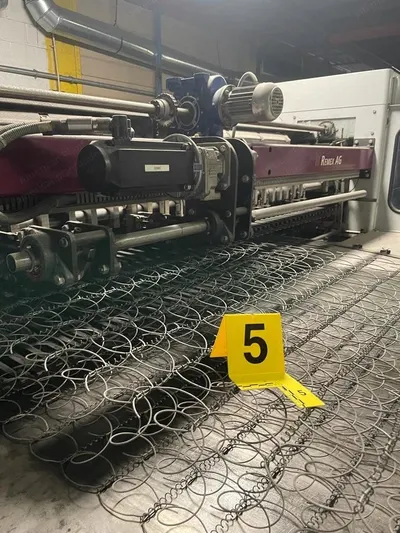

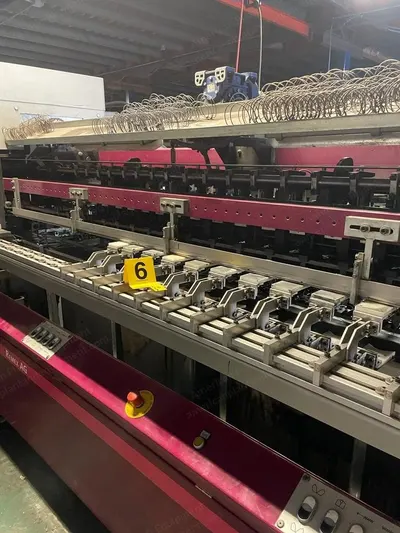

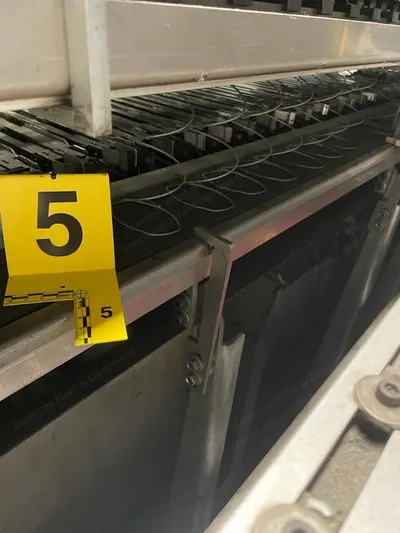

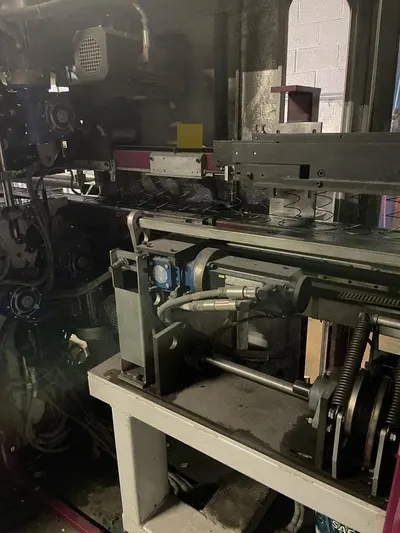

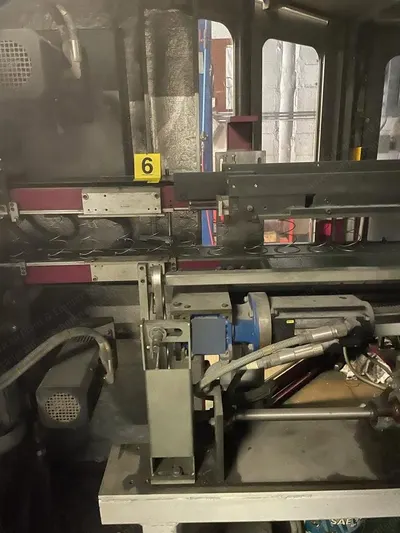

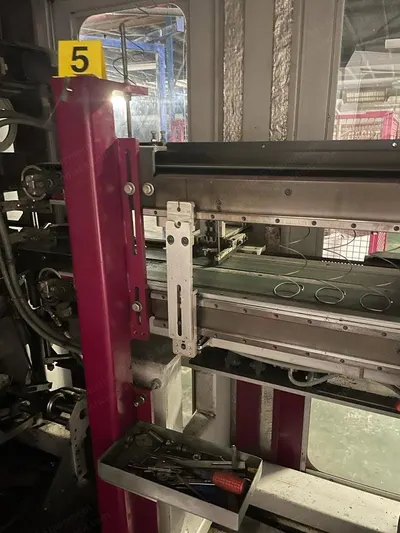

    1. 24 jaws on the assembler
    2. Coil count per full size mattress: 425

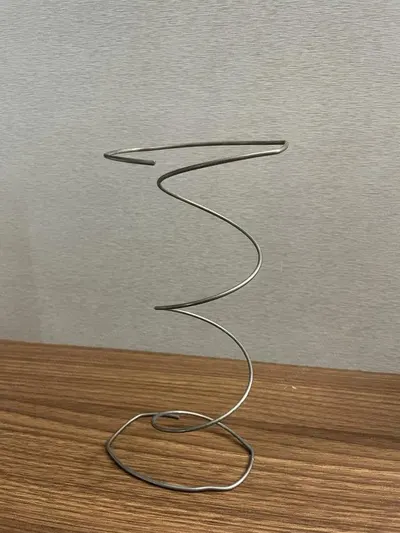

    3. Coils are 6 1/2 inches tall
    4. 5 1/2 turns per coil
    5. Coil diameter: 2 1/2 inches
    6. Coil height: 6 1/2 inches
    7. The coil is open at the bottom and on the top; it does not have a knot at the bottom or the top
    8. Working width: 2100mm (83 inches)
    9. Capacity: 100 coils per minute
    10. Voltage: 220 / 60 Hz / 3-phase
    11. Serial number: 509043
  3. Dimensions
    1. Floorspace: length 12 to 14 feet x width 30 to 32 feet (approximately)
