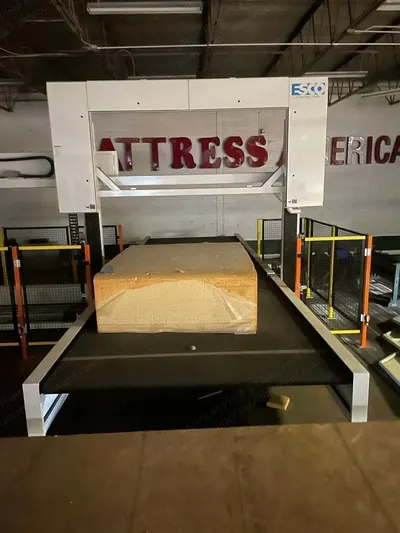

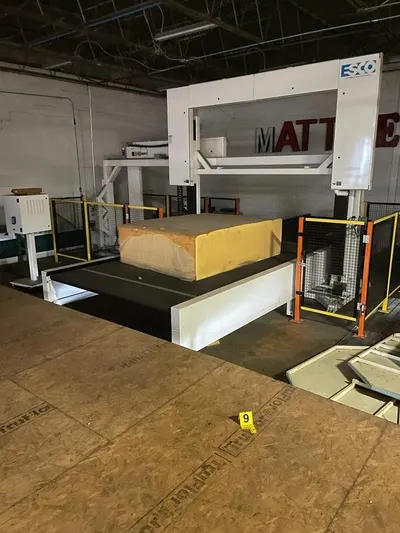

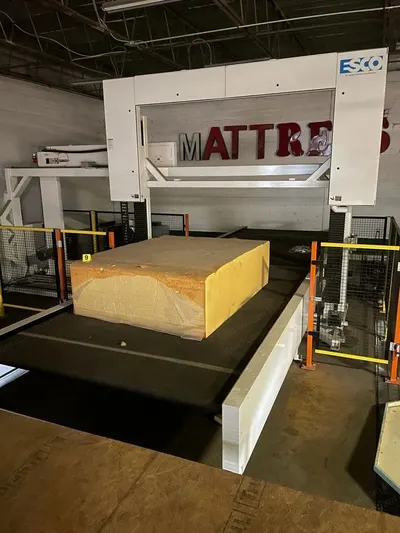

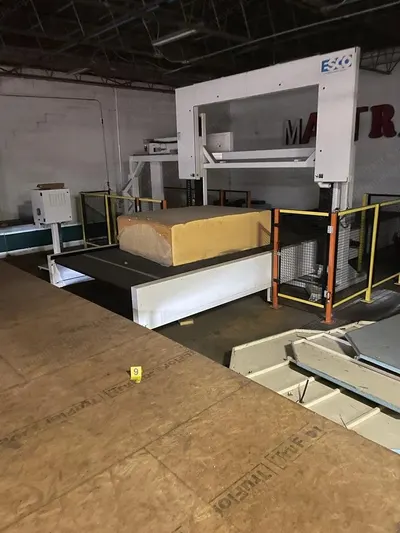

Edge Sweets, DPW 50-88, 2009, Horizontal Foam Cutting Machine, 84" Working Width, 10' Length, 51" Bun Height, CNC Dual Wire

Edge Sweets, DPW 50-88, 2009, Horizontal Foam Cutting Machine, 84" Working Width, 10' Length, 51" Bun Height, CNC Dual Wire Sold

Description

  1. Overview

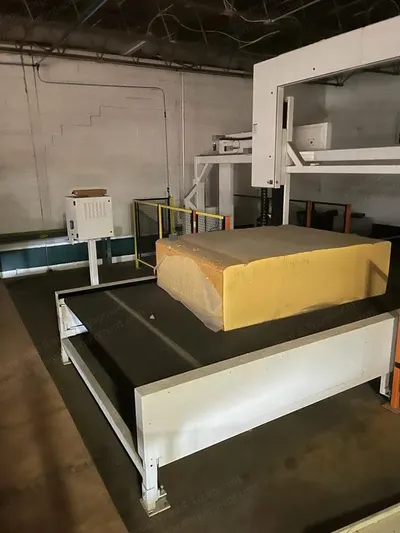

    1. 84 inches wide x 10 feet long x 51 inch tall bun with fully automatic cnc controls, vertical wire and horizontal wire
    2. Make: Edge Sweets
    3. Model: DPW 50-88
    4. Year: 2009
    5. Shipped: November 2009

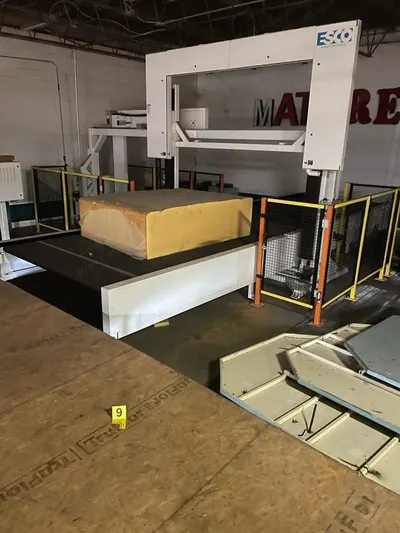

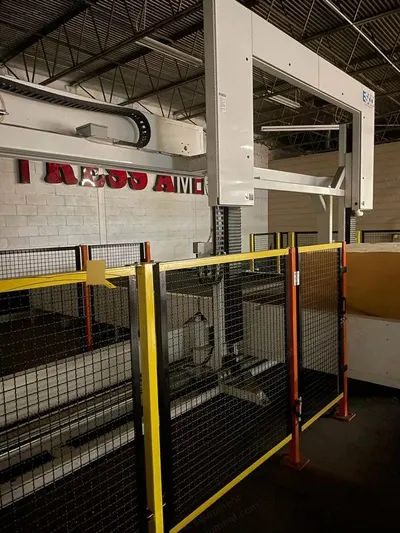

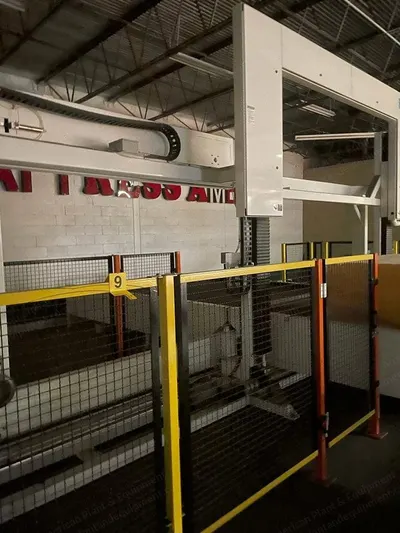

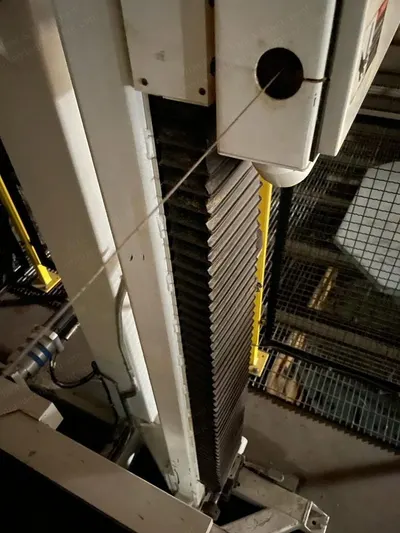

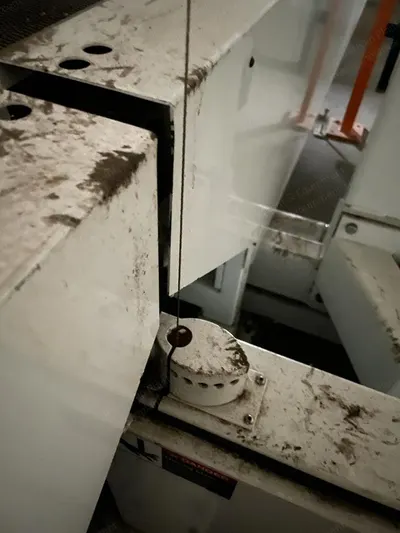

    6. Esco’s DPW (short for dual profilematic wire) employs both vertical and horizontal cutting wire heads wrapping the functionality of two machines into one robust package
    7. The DPW contour wire saw may be used to process both flexible PU foams and rigid PU foams such as polyisocyanurate (PIR)
    8. Esco’s DPW profile wire saw can create complex finished parts by passing the foam from one cutting head to another
    9. In addition to high-speed dual-axis contour cutting, the DPW can be utilized as a blocking saw to prepare buns for final processing
  2. Specifications
    1. Power: 240Y-137V/3-phase/60 Hz
    2. Amps: 81.2
    3. Blade length: 10230 mm
    4. Maximum width of blade: 108 inches (9 feet)

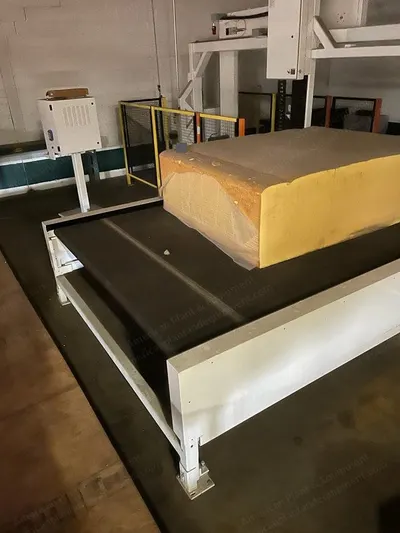

    5. Conveyor belt: width 89 inches / length 26 feet (approximately)
    6. Cutting height: 50 inches (1270 mm)
    7. Cutting width: 88 inches (2235 mm)
    8. Max cutting speed: 65 feet per minute (20 meters per minute)
    9. Floorspace: width 290 inches (7366 mm) x length 330 inches (8382 mm) x height 150 inches (3810 mm)
    10. Job number: E-4476
    11. Project number: 6208
  3. Standard Features
    1. PC based operator terminal
    2. Industrial handheld remote control

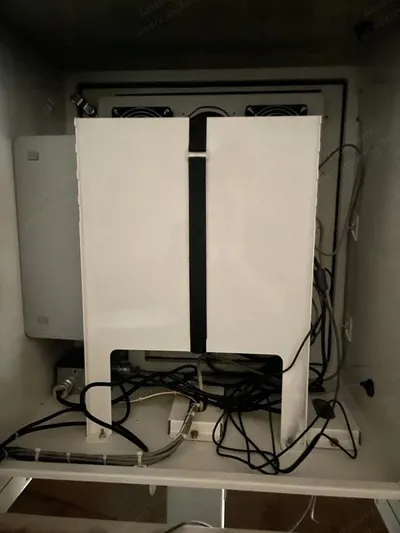

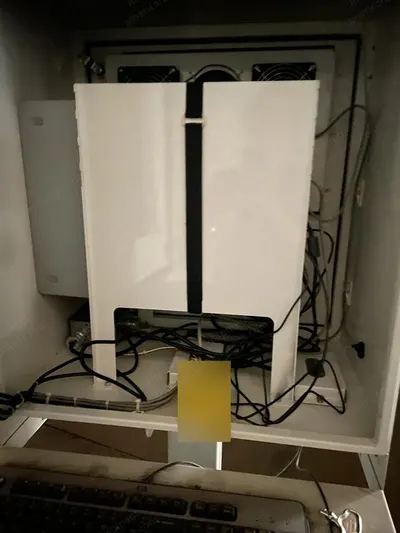

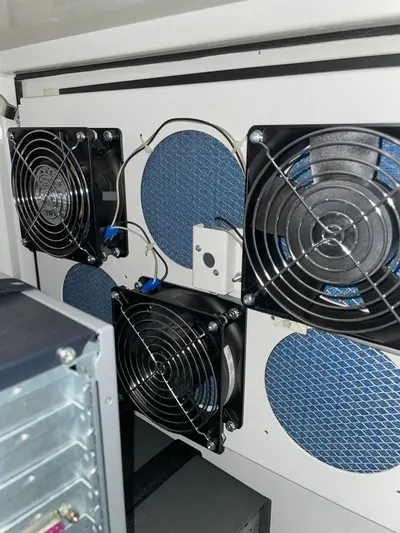

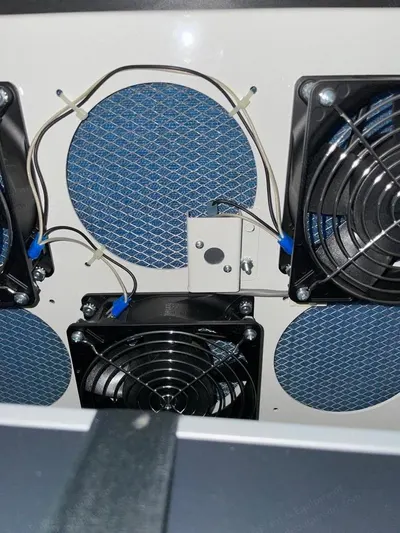

    3. Air-conditioned main control panel
    4. Siemens CNC motion controls
    5. Escodraw standard
  4. Operator Controls

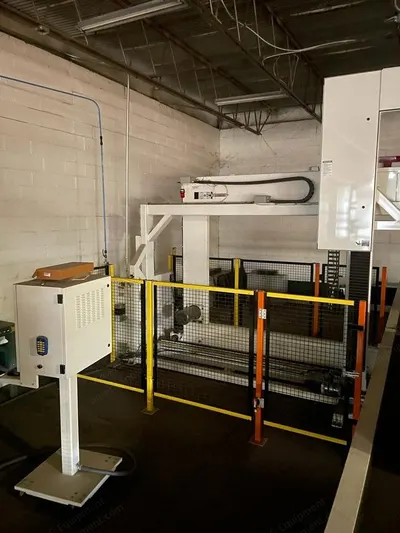

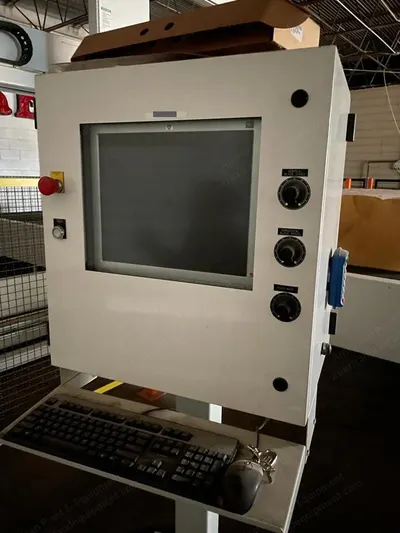

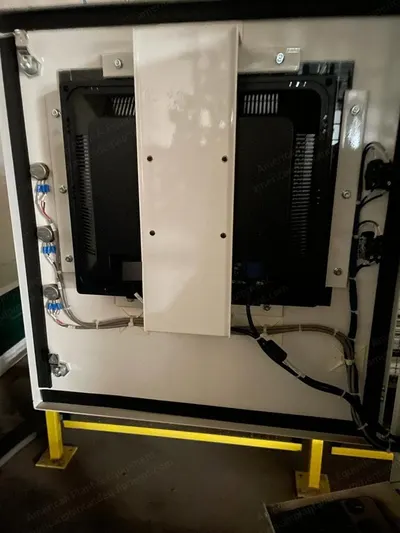

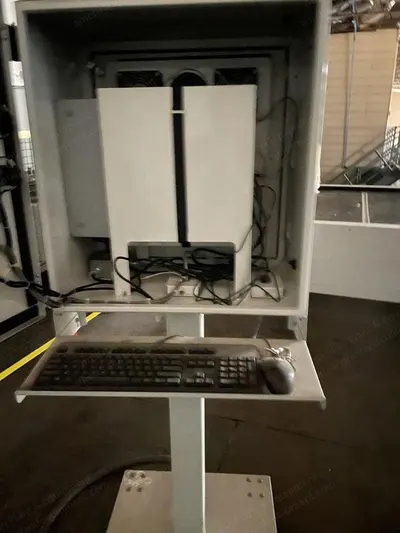

    1. PC based operator terminal mounted on freestanding podium
    2. Industrial handheld remote control
  5. Power Requirements
    1. 380/500 VAC, 3-phase, 50-60 Hz
    2. Clean, dry compressed air
  6. Condition
    1. Used industrial machine
