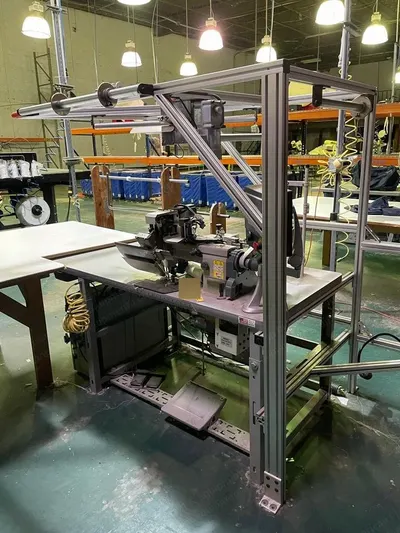

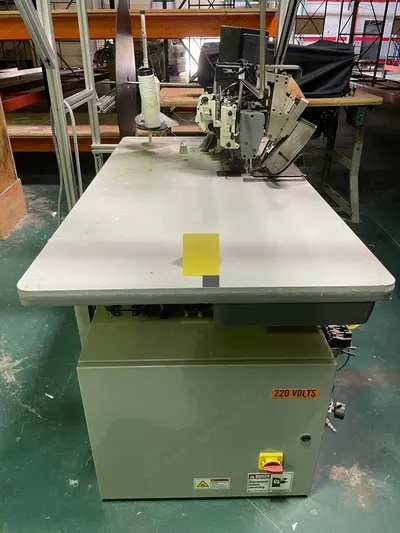

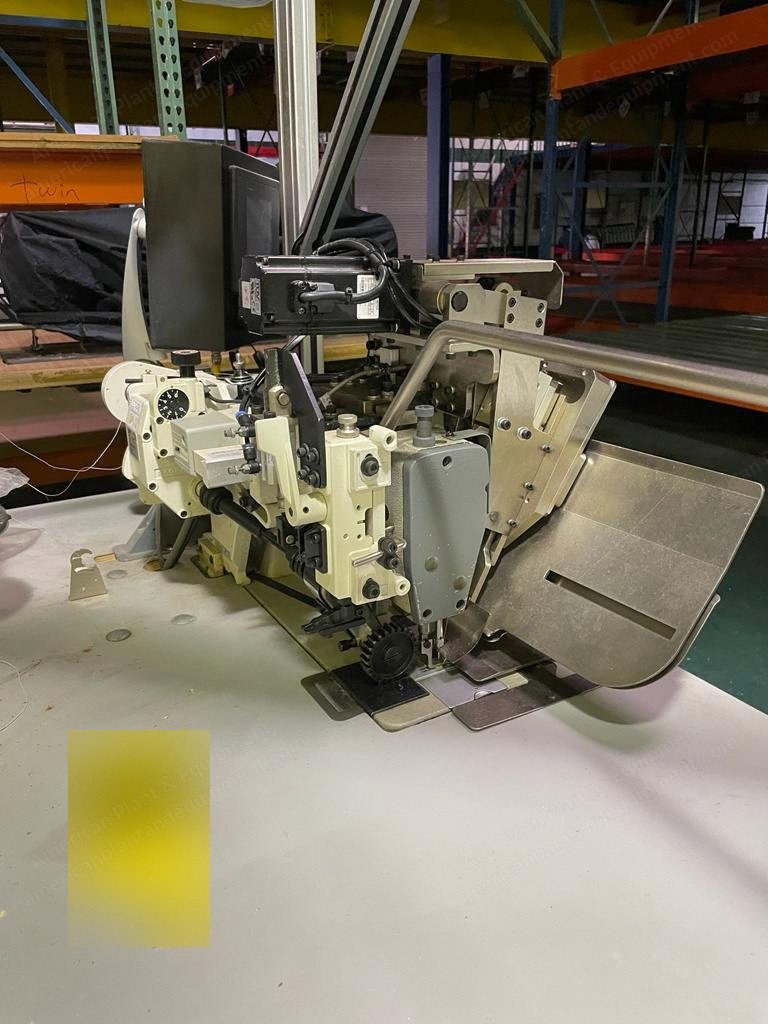

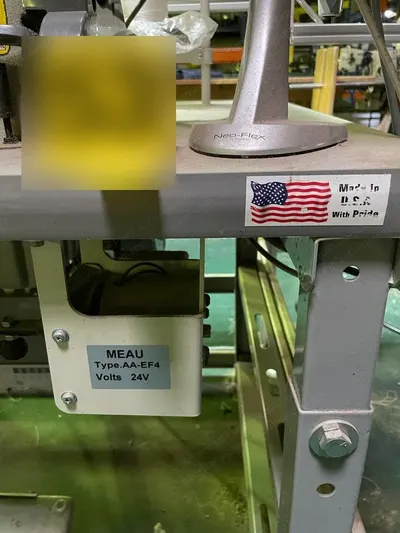

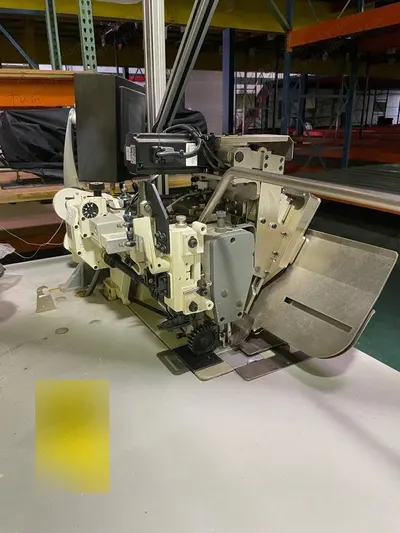

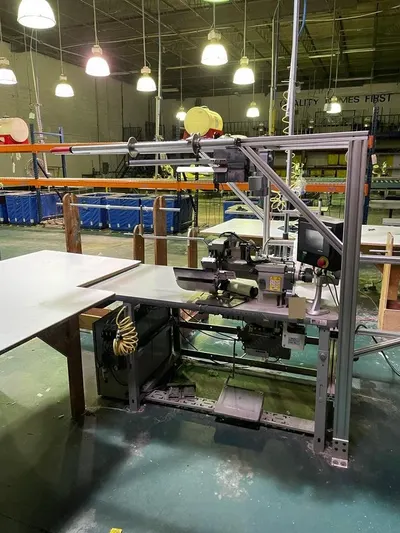

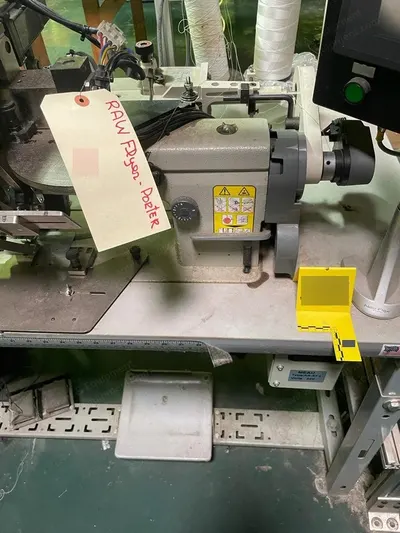

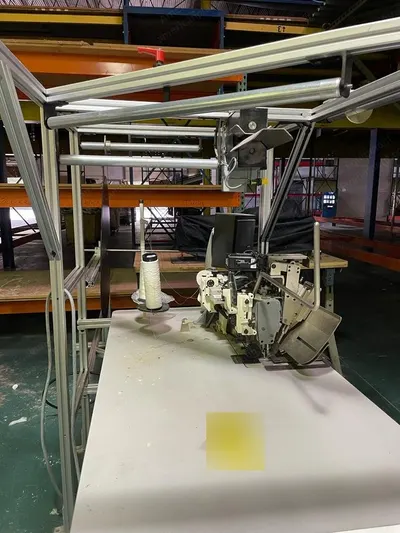

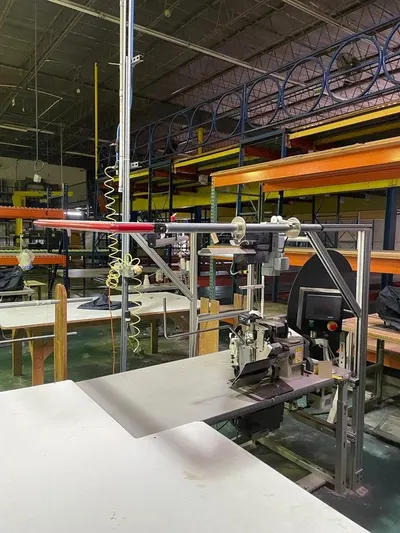

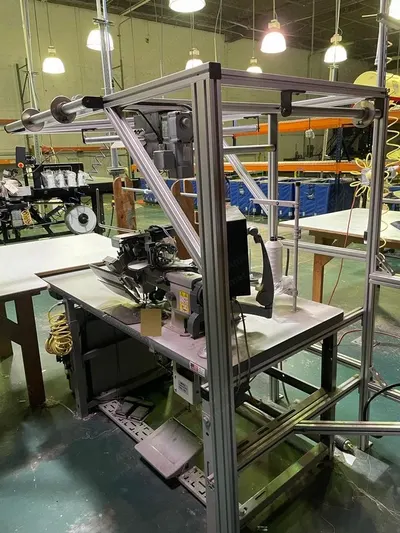

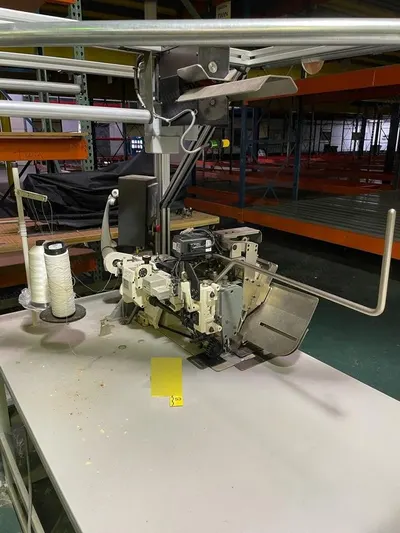

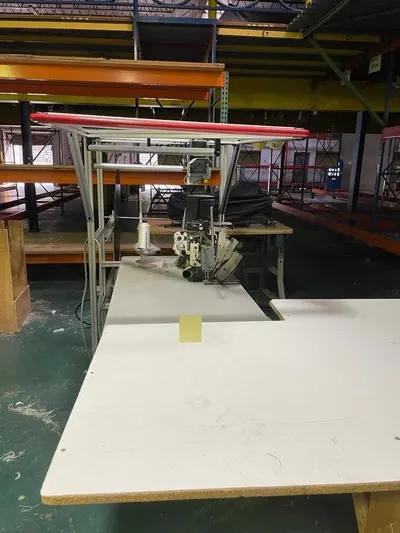

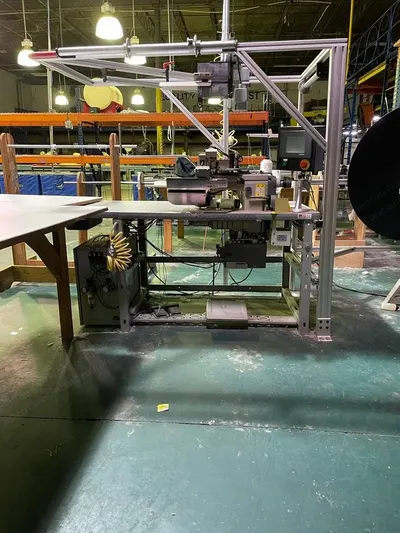

Description Overview Raw flyer from Porter Ruffler Meau Type: AA – EF4 Voltage: 24 V Motor information: Mitsubishi type XL-G554-20Y Voltage: 200-240 No nameplate on the machine Information from manufacturer’s website Features And Benefits Flexible gusset sizes Sews either pillowtop or eurotop gussets to inner panels and closes Sews continental boxspring borders to non-skid decking and closes Accepts quilted and non-quilted gusset Electronic needle positioner Operator touch screen interface handles 30 skus Material: 4” – 15” width (101 mm – 381 mm) Speed: 5,000 rpm @ 5 spi Footprint: 60” x 30” (1.5 m x.76 m) Yield: 240+/- panels/8-hour shift Specifications Max sewing speeds: 5,000 rpm Recommended sewing speed: 4,000 rpm Max material thickness: 1/4" Min material thickness: flat Material width: 4" - 20" width (101 mm - 760 mm) Stitches per inch: 6 spi Yield: 240 +/- panels/8 hr. shift (160 +/- foundations) at speed of 5000 rpm @ 5 spi Needle type: 135 x 17 Needle size: 22 Voltage: 220 (alternative voltages available) Current: 5 amps Air pressure: 80 psi Air consumption: 2 cfm Weight: 1080 lbs (490 kg) Shipping dimensions: 99 x 51 x 79” (252 x 130 x 201 cm)
