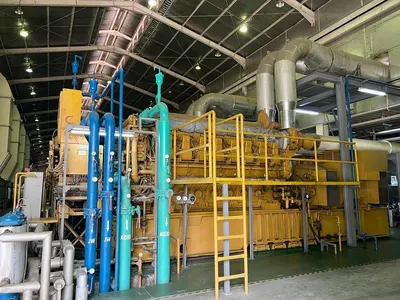

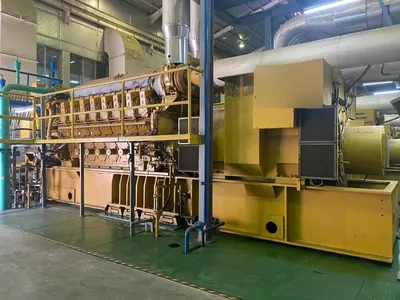

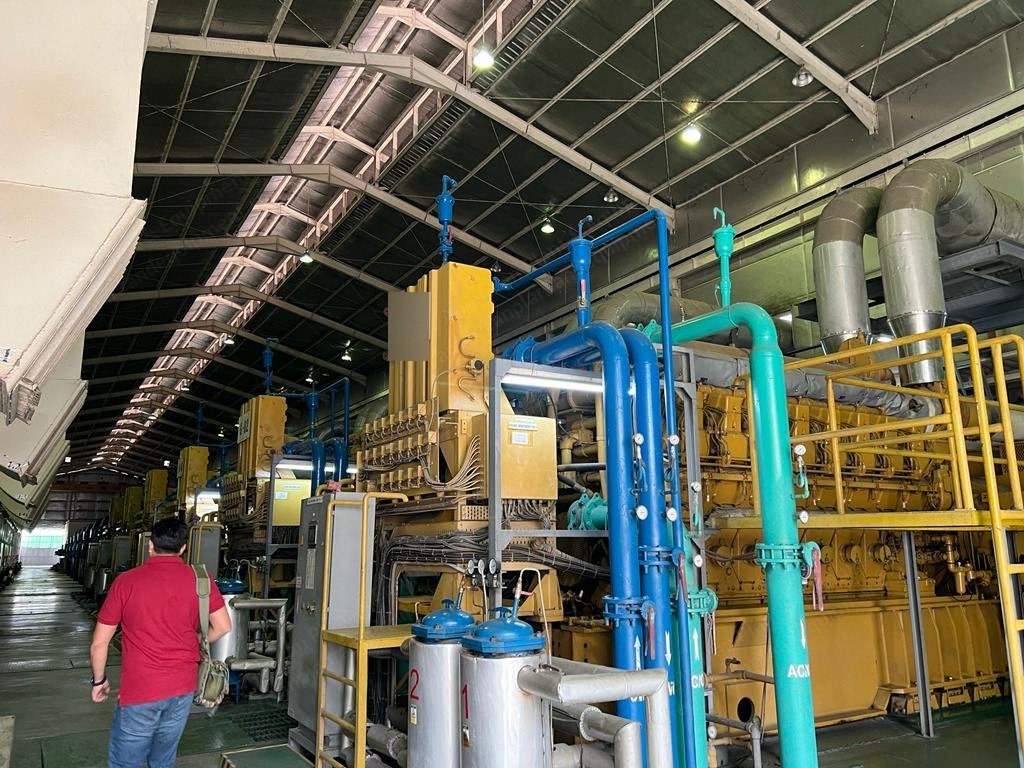

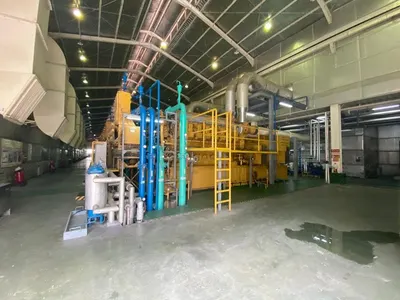

Caterpillar, 3616, 1998, 4.32 MW, 11000V, HFO/Diesel Generator Set

Caterpillar, 3616, 1998, 4.32 MW, 11000V, HFO/Diesel Generator Set

Description

  1. Item 001 - Engine 1
    1. Freshly overhauled.
    2. Engine specifications
      1. Brand: Caterpillar Overseas.
      2. Capacity: 4320 kW.
      3. Year: 1998.
      4. Speed: 1000 rpm.
      5. Type: 3616.
      6. Number of cylinders: 16.
      7. Cylinder bore diameter: 280 mm.
      8. Cylinder stroke length: 300 mm.
      9. Operating fuel: HFO/diesel.
    3. Alternator details
      1. Brand: Kato Engineering.
      2. Year: 1998.
      3. Capacity: 5400 kVA.
      4. Voltage: 11000 V.
      5. Amps: 283.4 A.
      6. Speed: 1000 rpm.
      7. Power factor: 0.8.
      8. Insulation class: F.
      9. Excitation voltage: 100 V.
      10. Excitation current: 6.6 A.
    4. Operating history
      1. Engine running hours: 27265.
      2. Hours at which last overhaul was done: 21131.
      3. Number of hours run after last overhaul: 6134.
  2. Item 002 - Engine 2
    1. Engine specifications
      1. Brand: Caterpillar Overseas.
      2. Capacity: 4320 kW.
      3. Year: 1998.
      4. Speed: 1000 rpm.
      5. Type: 3616.
      6. Number of cylinders: 16.
      7. Cylinder bore diameter: 280 mm.
      8. Cylinder stroke length: 300 mm.
      9. Operating fuel: HFO/diesel.
    2. Alternator details
      1. Brand: Kato Engineering.
      2. Year: 1998.
      3. Capacity: 5400 kVA.
      4. Voltage: 11000 V.
      5. Amps: 283.4 A.
      6. Speed: 1000 rpm.
      7. Power factor: 0.8.
      8. Insulation class: F.
      9. Excitation voltage: 100 V.
      10. Excitation current: 6.6 A.
    3. Operating history
      1. Engine running hours: 22738.
      2. Hours at which last overhaul was done: 20131.
      3. Number of hours run after last overhaul: 2607.
  3. Item 003 - Engine 3
    1. Engine specifications
      1. Brand: Caterpillar Overseas.
      2. Capacity: 4320 kW.
      3. Year: 1998.
      4. Speed: 1000 rpm.
      5. Type: 3616.
      6. Number of cylinders: 16.
      7. Cylinder bore diameter: 280 mm.
      8. Cylinder stroke length: 300 mm.
      9. Operating fuel: HFO/diesel.
    2. Alternator details
      1. Brand: Kato Engineering.
      2. Year: 1998.
      3. Capacity: 5400 kVA.
      4. Voltage: 11000 V.
      5. Amps: 283.4 A.
      6. Speed: 1000 rpm.
      7. Power factor: 0.8.
      8. Insulation class: F.
      9. Excitation voltage: 100 V.
      10. Excitation current: 6.6 A.
    3. Operating history
      1. Engine running hours: 27476.
      2. Hours at which last overhaul was done: 27434.
      3. Number of hours run after last overhaul: 42.
