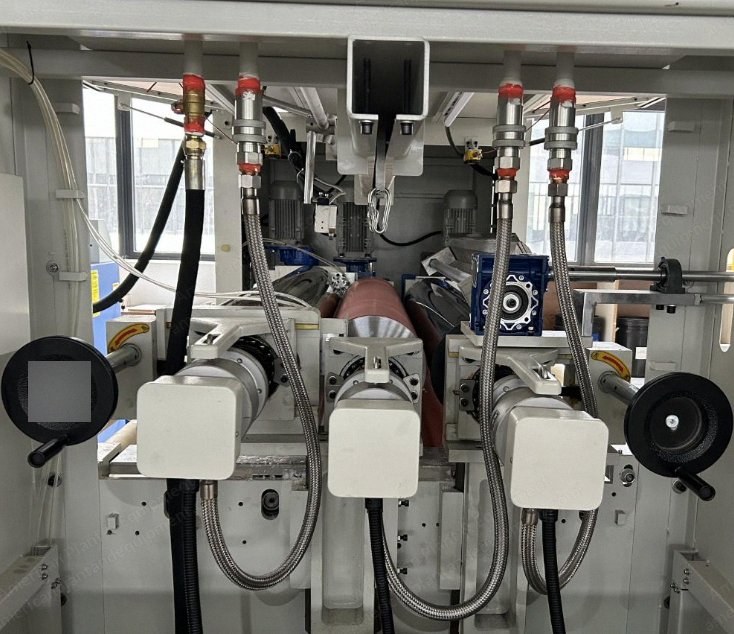

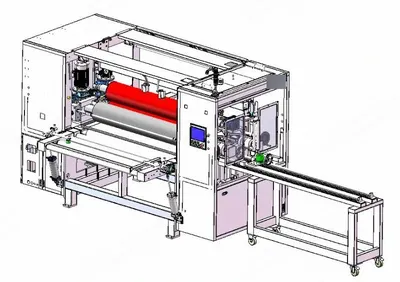

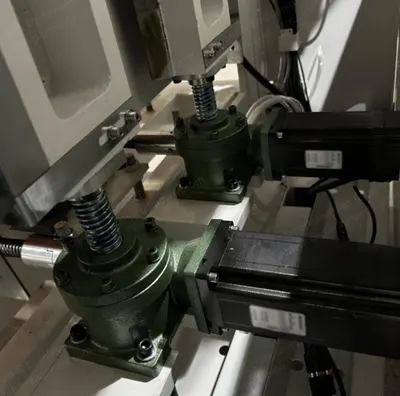

Description Overview Specially designed for coating hot melt adhesive on board or foam. Application roller and doctor roller are made of cast structure and equipped with automatic lifting devices. Each roller can be independently controlled. Both feeding and discharging ends are equipped with flipping devices for easy cleaning. Equipped with a fast roller changing device to save time on roll replacement. Each roller is heated with hot oil internally. Specifications Working width: 0 to 1600 mm Working thickness: 3 to 80 mm Minimum length: 600 mm Conveyor speed: 5 to 25 m/min Total power: 21 kW (not including glue melter) Machine size: 2350 mm x 3040 mm x 2100 mm Applicable temperature range: EVA glue 130°C to 170°C; special customization max temp 200°C for rollers Rollers Application roller: size 240 x 1600 mm, 8 kW, material 45# seamless pipe 20 mm thickness, process laser engraving, quantity 1 pc Doctor roller: size 240 x 1600 mm, 8 kW, material 45# seamless pipe 20 mm thickness, process chromium plating 0.08, quantity 1 pc One set of quick roll changing device (2180 x 500 x 1000 mm) Electric Components Inverter: brand Taiwan Shilin, 0.75 kW x 2 sets, 1.5 kW x 2 sets, quantity 4 sets HMI: brand Taiwan Shilin, model PI3070I, quantity 1 set PLC: brand Taiwan Shilin, model LV5S-2424MR-AN, quantity 1 set Motor of roller: brand Siemens, 1.5 kW x 1 set, 0.75 kW x 1 set, 0.55 kW x 1 set, quantity 3 sets Reducer: brand RV series, 75# hyperboloid 60:1 x 1 set, 90# + PC 60:1 x 1 set, 63# 60:1 x 1 set, quantity 3 sets Motor: brand Yongkun, 1.5 kW, 30:1, quantity 1 set Lifting motor and reducer: brand Lord, TY-3T 12:1, quantity 2 sets Low voltage electrical parts: brand Delixi Included Glue Melter Machine includes the melter which sends the glue to the machine, including hose, nozzle, etc. Melter capacity: 200 kg if the EVA glue is like PUR; if EVA glue is granular, then the glue melter has a 50 kg capacity
