NovaStar, FN267, Foam Sheet Tri-Fold Roll Packing Line, Capacity 15 Seconds Per Sheet, Max Mattress Size 2200x1500x150mm (New)

Description

  1. Overview
    1. Suitable for foam roll wrap
    2. Foam density: 25 kgs/m³ to 45 kgs/m³
    3. Capacity: 15 seconds per sheet, continuous operation
    4. Maximum mattress size: 2200 x 1500 x 150 mm
    5. Roll diameter: 50 to 300 mm
    6. Voltage: 380 volts, 50 Hz or 220 volts, 60 Hz
    7. Total power: 25 kW
    8. Weight: 6.5 tons
  2. Line Composition

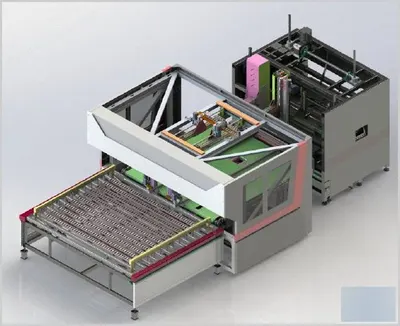

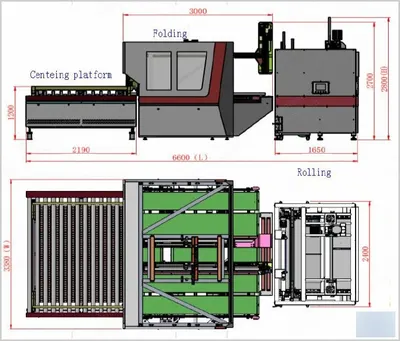

    1. The line is composed of three machines: automatic centering, automatic folding or triple folding, and automatic film pulling and roll forming
    2. Packaging machine configuration: servo + high-quality belt
    3. The rear roll wrap uses a 4c grabbing membrane
    4. Folding and forming: servo control for folding in half and three, with complete functions
    5. Folding machine configuration: servo + high-quality belt, folded in half without damaging materials
  3. Condition and Warranty
    1. After-sales service for 2 years
    2. One year warranty
    3. The wrapping machine will not wrap the mattress poorly due to high static electricity of the film; this is avoided
  4. Shipping
    1. Requires one 40 foot high cube container to ship
  5. Specifications
    1. Weight: 6500
