NovaStar, DG334, Laboratory Washing Line, 1200mm Roller Width, 4 Washing Chambers, 4 Padders, Plaiter (New)

NovaStar, DG334, Laboratory Washing Line, 1200mm Roller Width, 4 Washing Chambers, 4 Padders, Plaiter

Description

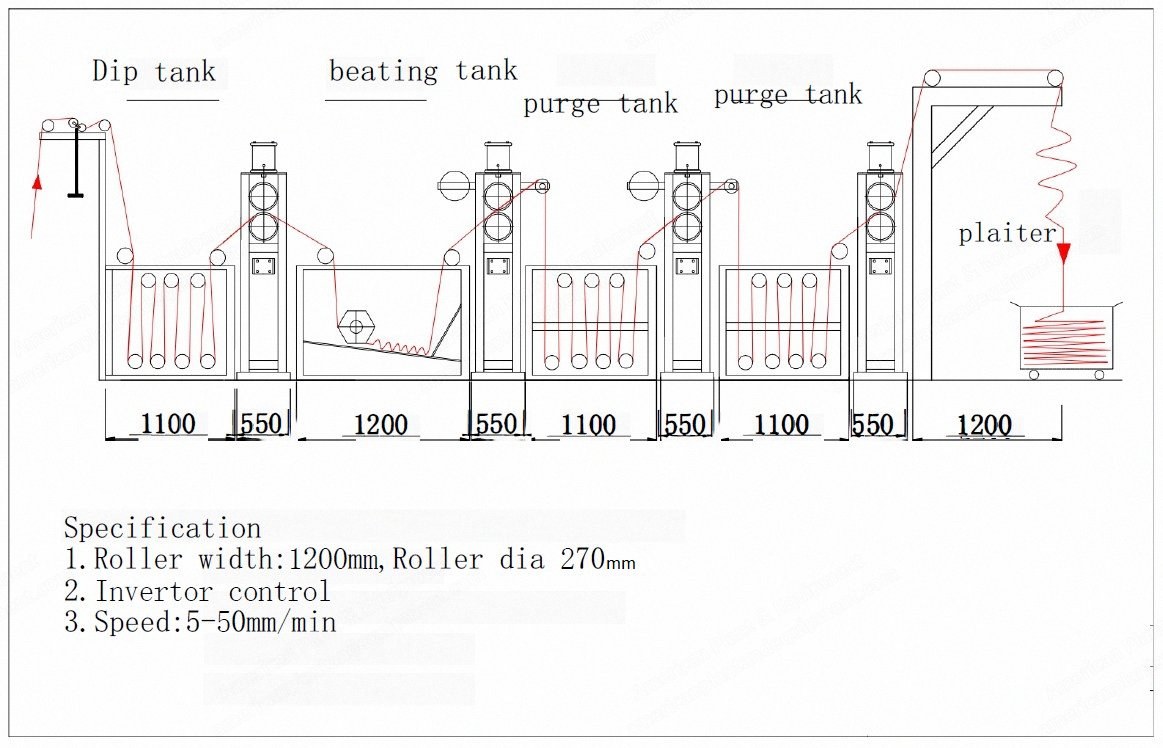

  1. Overview
    1. Fabric entry
    2. 4 washing chambers
    3. Fabric plaiter
  2. Specifications
    1. Roll diameters on the first three nips: 270 mm
    2. Roll diameter on the last nip: 320 mm
    3. Roller diameters within the washbox: 108 mm
    4. Roller width: 1200 mm
    5. Tank fabric guide roller diameter: 108 mm
    6. Speed: 10 to 30 meters per minute
    7. Total power: 20 kW
    8. Dryer rollers: 8 pieces, diameter 800mm
  3. Condition
    1. Air pressure in first three wash boxes: 5 tons
    2. Air pressure in the last wash box: 10 tons
