Speed in advance of cart of putting: 0.001 to 9.999 mm per turn
Precision of positioning of there section: ≤ 0.01 mm
Positioning of point of departure of cone: automatic
Positioning of the sections: automatic
Beach defined of there width of section: 0 to 500 mm per section
Positioning of point of departure of there section can be ruler by a button
Electrical and Control
Power supply: 3-phase, 400 volts, 50 Hz
The warping machine sectional east equipped of components electric of high quality
12 inch touch screen for simple use
The different servos engines can answer has all your different process warping
Mechanical and Braking
The system of braking hydraulic of brand Brembo you offer a braking stable and complete and thus increases your productivity
The measuring carriage can be moved back and forth with increasing wire thickness, controlled by a motor, it maintains a constant distance between the measuring roller spacing and there surface of thread. There is distance can be defined in function of the requirements of your son
The movement of your warping machine can be moved on rails on the ground in order to maintain your cart of put, center on your creel all at long of your warping, in order to ensure your even tension on both sides of your section
Barriers intangible has warping thus than to beaming guaranteeing optimal safety for all operators

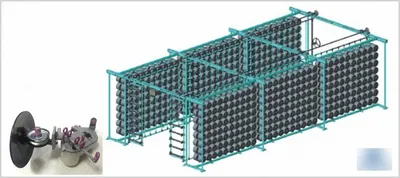

Creel – Swivel Frame with Tensioner
Cantre has frame swivel with tensioner
3.1 has swing frame
3.2 tensioner with 2 systems of cup for there tension
640 positions
Center distance of the reels 300 mm
Breakages son with detector infrared
Guide son has the interior of there creel
System antistatic

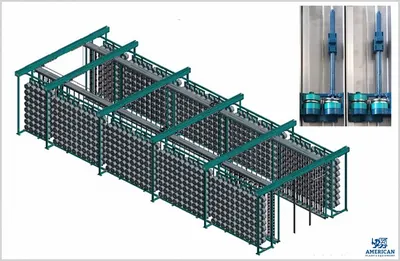

Creel – Swivel Frame with Positive Tensioner
640 positions
Tensioners with setting of 0 to 70 cN
Regulation of automatic tension
Has swing frame
6 heights
Structure steel in tube
Spacing horizontal 300
Spacing vertical 300
Wire breakers electronic
Creel Features and Benefits
Assured automatically a tension constant all at long of your warping operation
Appropriate has all the types of threads
Appropriate for a wide fan of numbers of thread
Setting centralized of there tension of thread
Setting automatic of voltage
Unrolling of thread has great speed
Cleaning of there surface of the cups by rotation of these
Device of blowing individual internal
Functioning simple and practical
Regulation reliable of the tensions: there tension east obtained in applying pressure from the upper cup on the lower cup
There first series of cups of braking ensures a movement stable wires and the second set applies the appropriate voltage
The setting of the voltage of thread east carried out on a touch screen
The setting can be carried out, either for each sides of creel either for the totality
