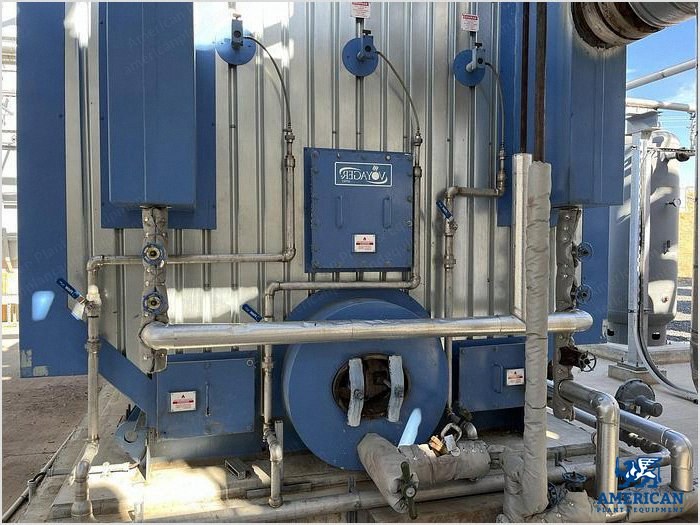

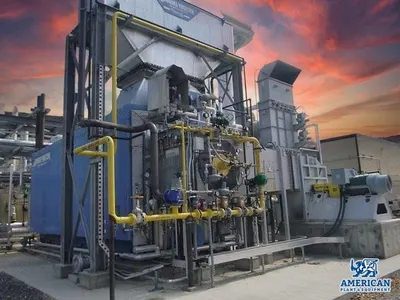

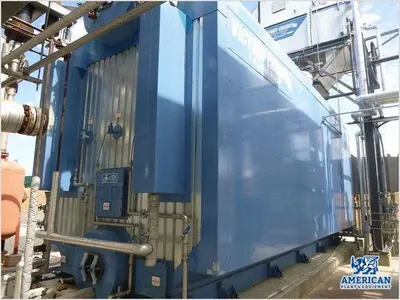

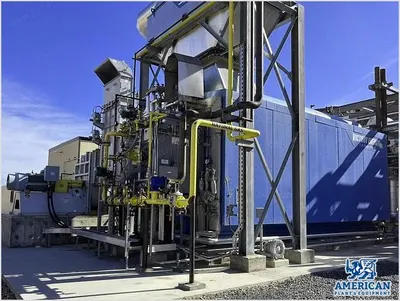

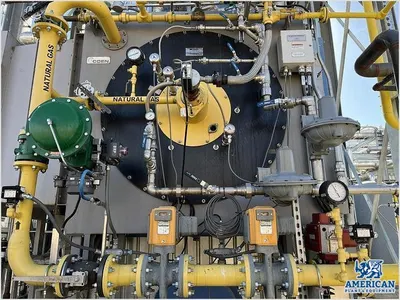

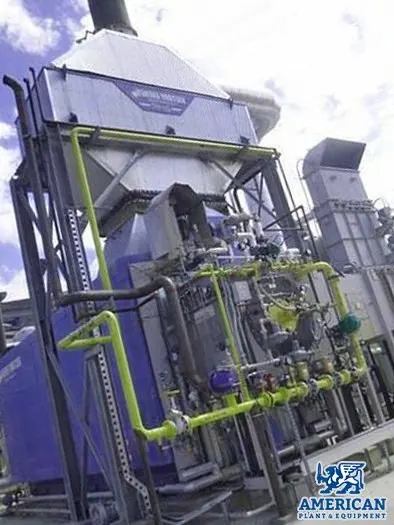

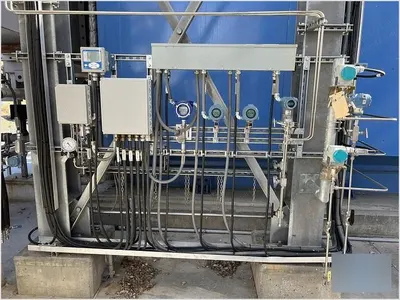

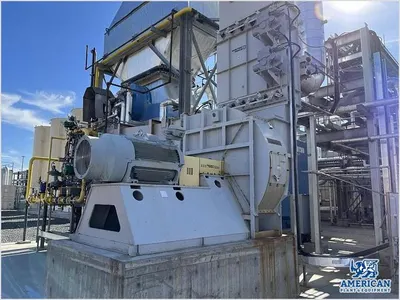

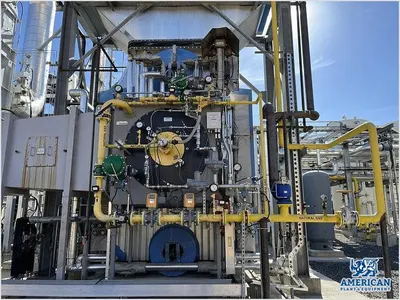

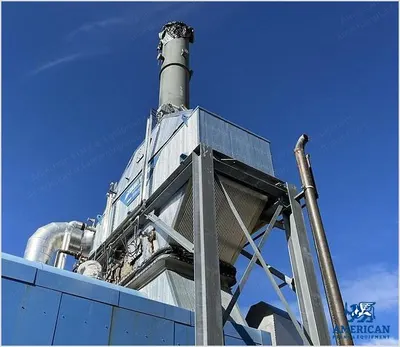

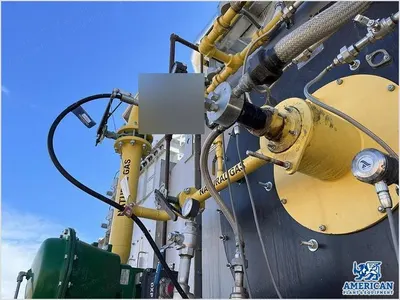

Description Overview Victory Energy Voyager series model VS-5-78SP SH 90,000 lbs per hour pph natural gas package boiler Rated 90,000 lbs per hour saturated steam Built 2018 In operation only 1 year Specifications Design pressure: 950 psig Operating pressure: 800 psig Operating temperature: 863°F SH steam at the NRV outlet Feedwater temperature: 227°F to economizer inlet Primary fuel: natural gas Complete economizer system Furnace radiant heating surface: 889 square feet Boiler convective heating surface: 6,455 square feet Total heating surface: 7,344 square feet Superheater surface: 980 square feet Furnace volume: 1,633 cubic feet Stock number: 10992051Serial number: 13288 Dimensions Overall width: 8 to 10 inches Average height: 8 to 6 inches Furnace length: 21 feet 11 inches Overall height: 50 feet Construction Drums submerged arc automatic welded and stress relieved with radiographed weld seams Drum material is SA-516 GR 70 Tubes are rolled and expanded into the drum Mud drum is provided with a 12” x 16” hinged manway access in each drumhead Steam drum is provided with a 12” x 16” hinged manway access in each drumhead All tubes enter the drum radially with full parallel bearing through the drum plate All tubes are full diameter tubes with no swaging Tube Specifications Front wall: 2” OD, 0.135” MW, SA-178 A Rear wall: 2” OD, 0.135” MW, SA-178 A Furnace floor, sides and roof: 2” OD, 0.135” MW, SA-178 A Convection: 2” OD, 0.120” MW, SA-178 A Outer side wall: 2” OD, 0.135” MW, SA-178 A Superheater: 2” OD, 0.180” MW, SA-213TP304H, NB 589
