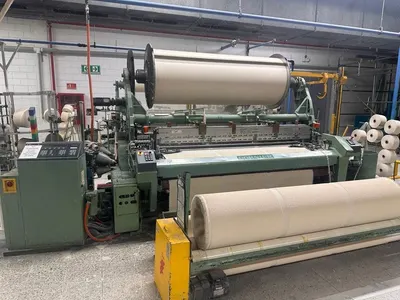

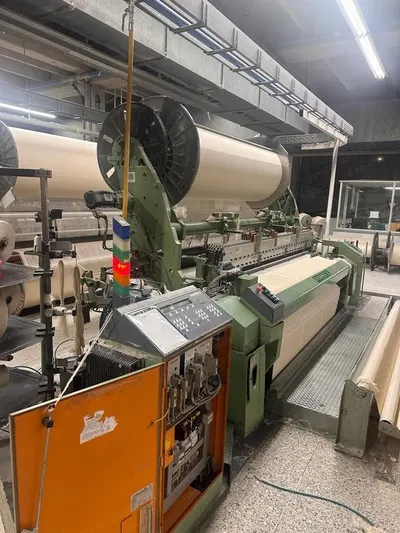

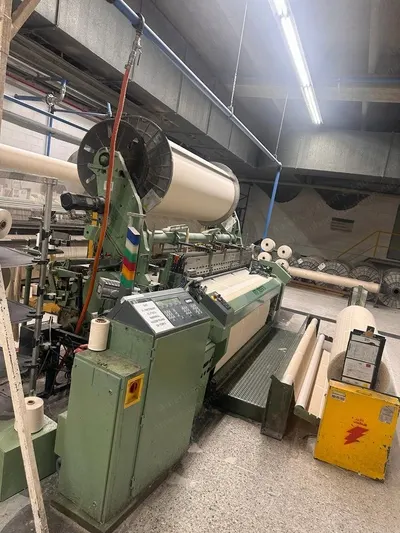

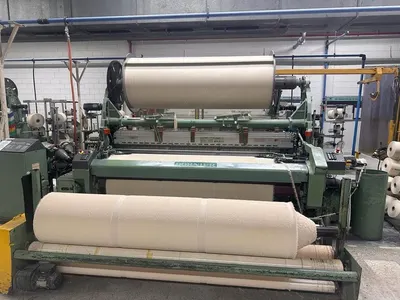

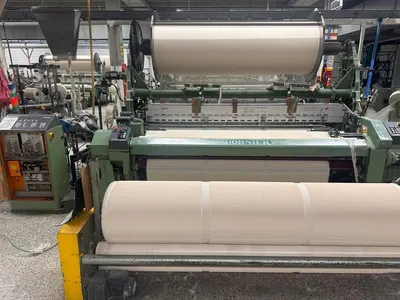

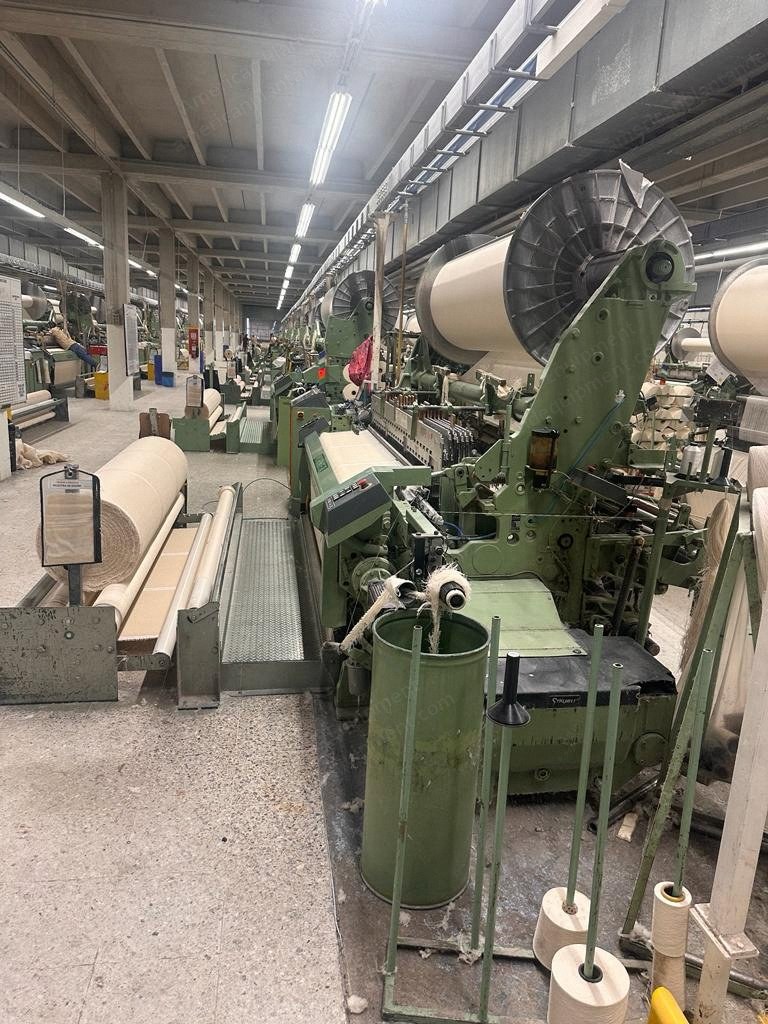

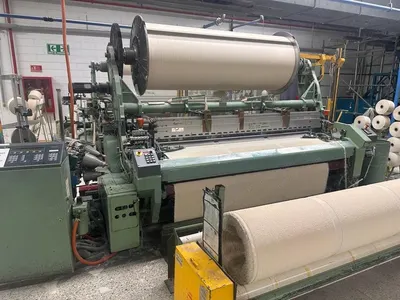

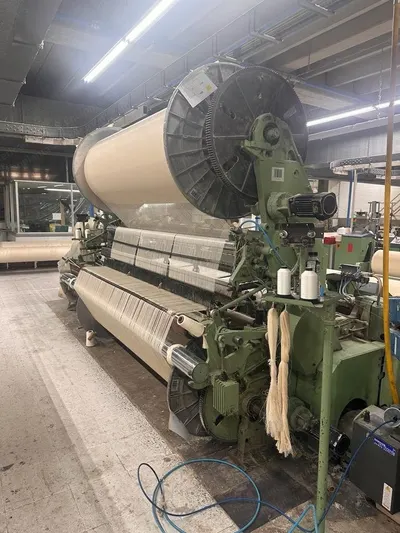

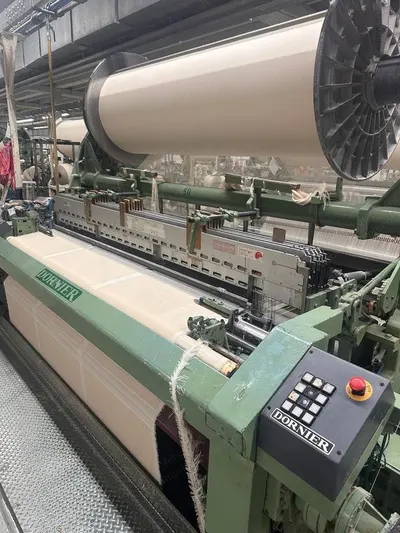

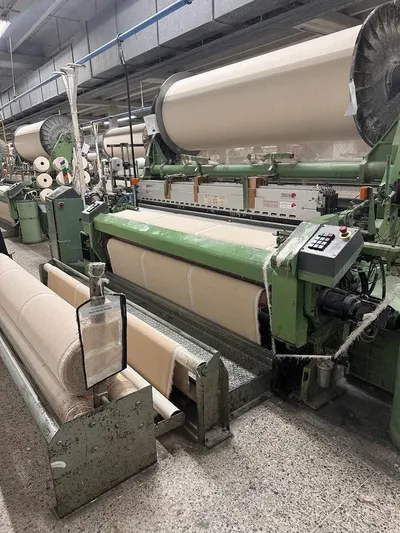

Dornier, LTNF 4S, 1992-1997, 2600mm Working Width, Staubli Dobby 2667, Air Jet Terry Looms

Dornier, LTNF 4S, 1992-1997, 2600mm Working Width, Staubli Dobby 2667, Air Jet Terry Looms

Description

  1. Overview
    1. 31 Dornier looms, sold without converter, fixed pulley at 400 rpm
    2. Working width: 2600 mm
    3. All looms currently working
    4. The first 11 looms were stopped April of 2016
    5. 3 looms fit in one container
  2. Specifications
    1. Main motor: 440 volts, 60 Hz
    2. Motor clutch with fixed pulley at 400 rpm
    3. Dialogue panel control
    4. Weft insertion with relay nozzle
    5. Pendular pile system (flexible blade)
    6. Reed support
    7. Temple support
    8. Pin roller (with take up system)
    9. Cloth winder system
    10. Pile beam unwinding system
    11. Ground beam unwinding system
    12. Warp stop motion
  3. Dobby Description by Loom Group
    1. 1 loom LTNF 4S 1992: Staubli dobby 2667-007 with terry system 1/3 (of 3 picks)
    2. 10 looms LTNF 4S 1993: Staubli dobby 2667-007 with terry system 1/3 (of 3 picks)
    3. 12 looms LTNF 4S 1995: Staubli dobby 2667 RSV with terry carter system 1/3 (of 3 picks)
    4. 8 looms LTNF 4S 1997: Staubli dobby 2667 RSV with terry carter system 1/3 (of 3 picks)
  4. Components per Loom
    1. 6 frames (capacity for 12 frames per loom)
    2. 1 reed
    3. 2 weft feeders (capacity for 4 feeders per loom)
    4. 1 pile beam: diameter 1000 mm, width 2900 mm core
    5. 2 ground beams: diameter 800 mm, width 2900 mm core
    6. 1 cloth take up system
  5. Total Quantities
    1. 186 frames (6 per loom)
    2. 31 reeds
    3. 62 weft feeders (2 per loom)
    4. 31 pile beams (diameter 1000 mm, width 2900 mm core)
    5. 69 ground beams (diameter 800 mm, width 2900 mm core)
    6. 31 cloth take up systems
