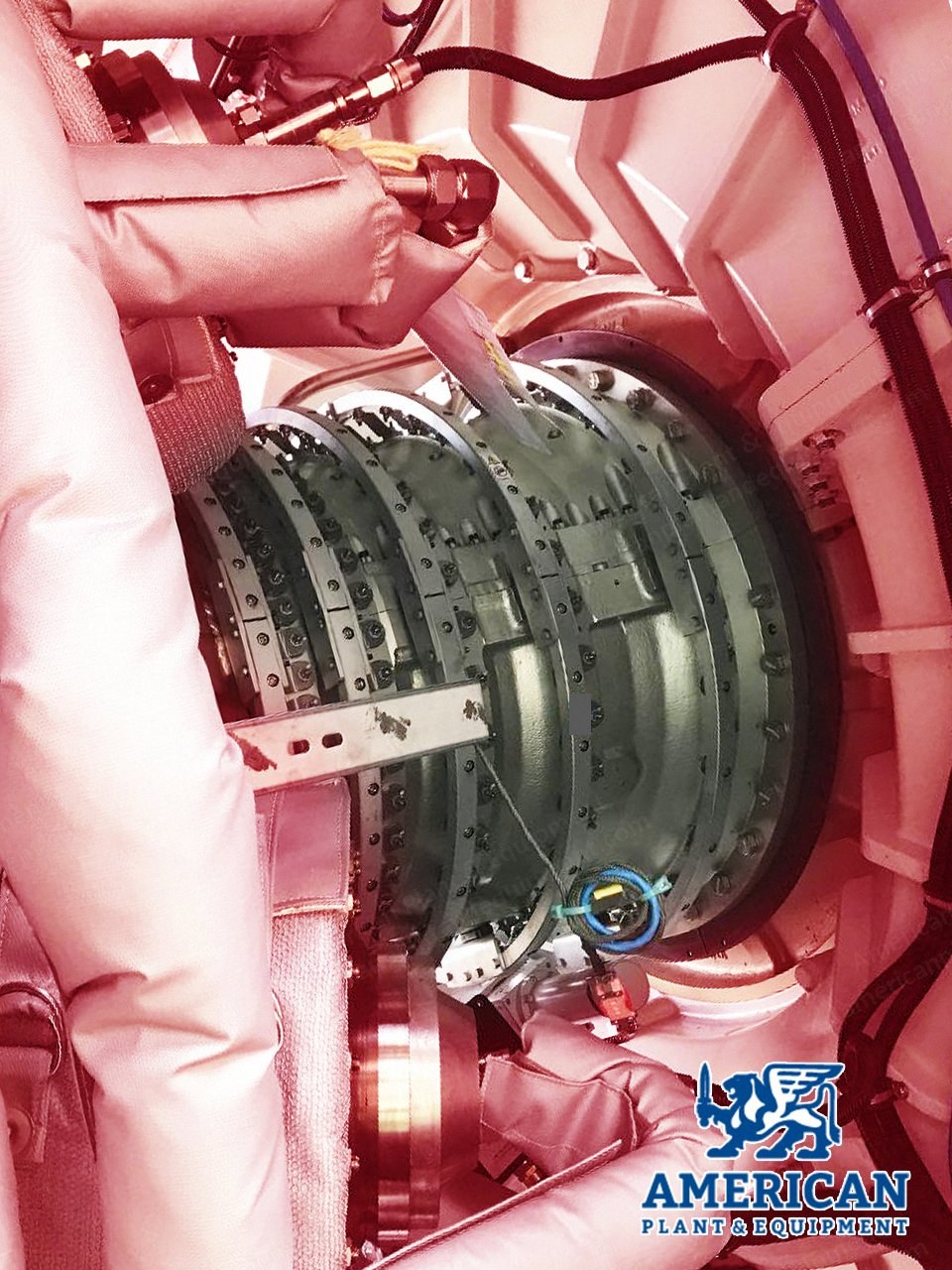

Siemens, SGT-400, 2022, 13 MW, 50 Hz, 11 kV, Natural Gas (New)

Siemens, SGT-400, 2022, 13 MW, 50 Hz, 11 kV, Natural Gas

Description

  1. Core Engine
    1. Make: Siemens
    2. Model: SGT 400
    3. Wattage: 13 MW
    4. 50 Hz
    5. Year: 2022
    6. Fuel: Natural gas
    7. Condition: New
    8. Voltage: 11,000
    9. Reduction gear
    10. Integral lube oil system
    11. Gas fuel system
    12. Electro-hydraulic gas turbine start system
    13. Dual mode compressor wash system
    14. Outdoor acoustic enclosure 80 dBA
    15. Control cabin
  2. On-Skid Control Panels
    1. Gas turbine control and protection section
    2. Motor control center
    3. Battery charger and uninterruptible power supply
    4. Generator control and protection section
    5. Synchronizing equipment section
    6. Fire protection and gas detection systems and uninterruptible power supply
    7. AC generator, 11 kV, 3-phase, 50 Hz, 4 pole, 0.8 power factor
    8. Enclosure vent system (80 dBA)
    9. Turbine air intake system 80 dBA
    10. Air intake filter access platform
    11. AC generator vent system 80 dBA
    12. Oil cooler air blast system 80 dBA
    13. Exhaust system
