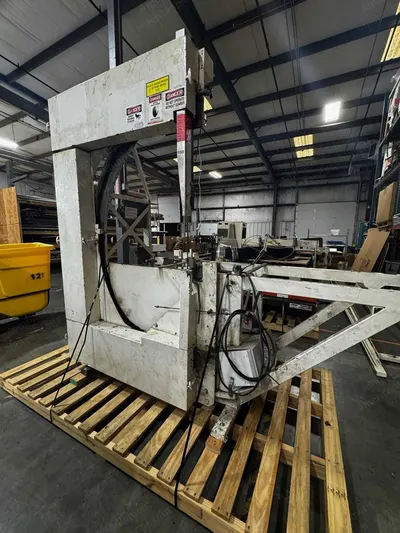

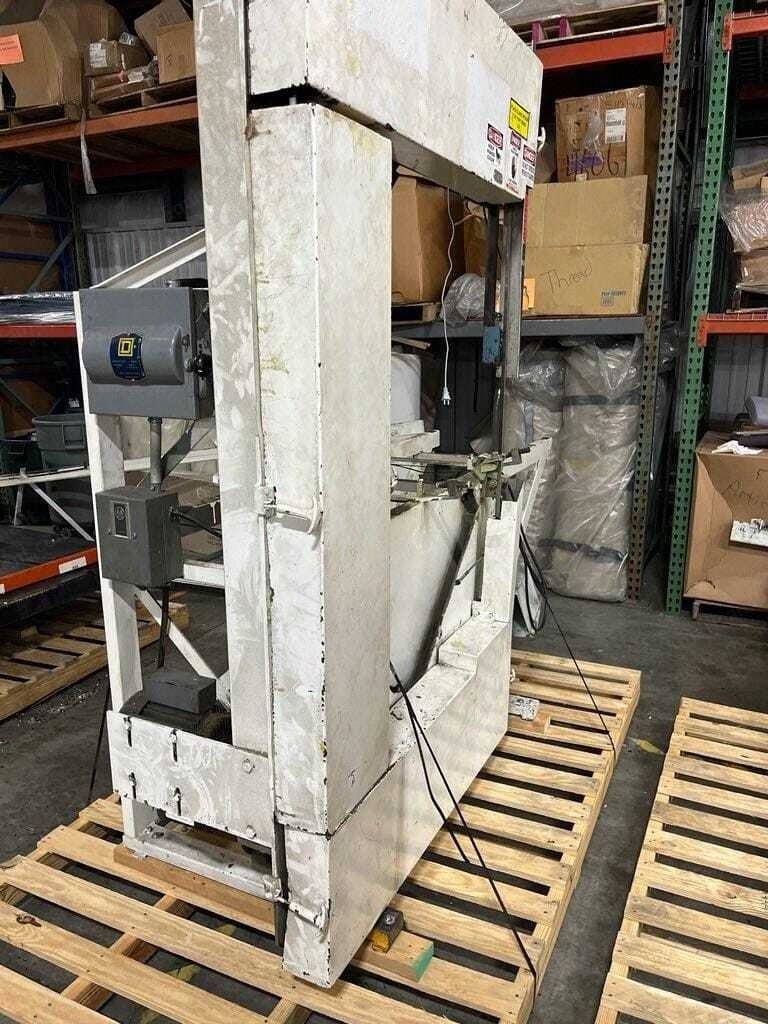

Edge Sweets, A-2, Vertical Tilting Foam Band Saw, 24in Cutting Height, 11ft Table Length, 0-45° Tilt

Edge Sweets, A-2, Vertical Tilting Foam Band Saw, 24in Cutting Height, 11ft Table Length, 0-45° Tilt Sold

Description

  1. Overview

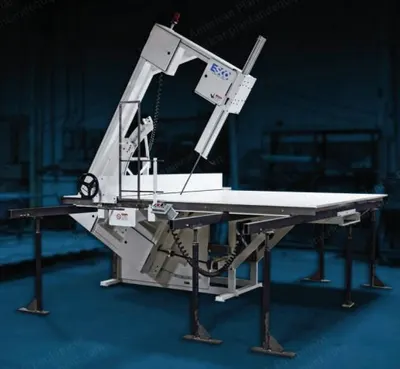

    1. Esco A-2 tilt vertical foam band saw designed to cut flexible foam at angles up to 45 degrees from the vertical
    2. Model A-2 tilt foam band saw cuts angles in one direction
    3. Model TWT-45 foam band saw cuts from -45 degrees to +45 degrees
  2. Specifications
    1. Cutting height: 48 in [1219 mm]
    2. Cutting width - outside blade: 36 in [914 mm]
    3. Cutting width - inside blade: 24 in [609 mm]
    4. Cutting height - full tilt: 27 in [685 mm]
    5. Fence height: 8 in [203 mm]
    6. Overall width: 276 in [7010 mm]
    7. Overall length: 117 in [2972 mm]
    8. Maximum height: 96 in [2438 mm]
    9. Floor space required: 24 in [609 mm]
    10. Shipping weight: up to 2300-2700 lbs [1045-1230 kg] (varies by model/options)
  3. Standard Features
    1. 0-45 degree powered tilting head assembly
    2. Plastic coated wood top cutting table
    3. Manually operated side fence with lock
    4. Embedded position rulers in cutting table
    5. Operator controls mounted to cutting table
    6. Heavy-duty industrial blade guide
  4. Optional Features
    1. 24 in [610 mm] or 48 in [1219 mm] table side extension
    2. 16 in [406 mm], 24 in [610 mm], 36 in [914 mm] fence height extensions
    3. Carter roller blade guide assembly
    4. Two-way cut assembly
    5. Powered upper guide/guard assembly
    6. Variable speed blade motor
    7. Aluminum table top
    8. Pneumatic assist table-drive
    9. Pneumatic blade tension
  5. Operator Controls
    1. Push-button controls mounted to table assembly
    2. Manually operated side fence with lock
    3. Pneumatic table-assist control feature (optional)
  6. Head Assembly Specifications
    1. Powered tilt mechanism changes blade angle from 0-45 degrees
    2. Powered upper guide/guard assembly (optional)
    3. Material indexed into cutting position with a manually operated side fence with lock
  7. Blade Assembly
    1. Blade width: 0.5 in [13 mm] or 0.75 in [19 mm]
    2. Blade thickness: 0.020 in [0.5 mm]
    3. Blade type: serrated
    4. Blade guide: standard teflon coated (powered optional)
    5. Blade motor: 2 hp pulley drive
    6. Blade speed: 3100-3200 fpm [945-975 m/min]
  8. Power Requirements
    1. 230/460 vac 3-phase 60 hz
    2. All control circuits on 110 volts
    3. Single phase electrics (optional)

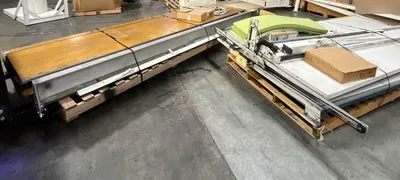

  9. Table Assembly
    1. Table height: 42 in [1054 mm] from floor
    2. Table surface: sealed novaply with smooth surface
    3. Side fence: 8 in [203 mm] high with position lock
    4. Fence rulers: embedded in table (both sides)
    5. Table length: 7 ft [2134 mm], 9 ft [2743 mm], 11 ft [3353 mm]
