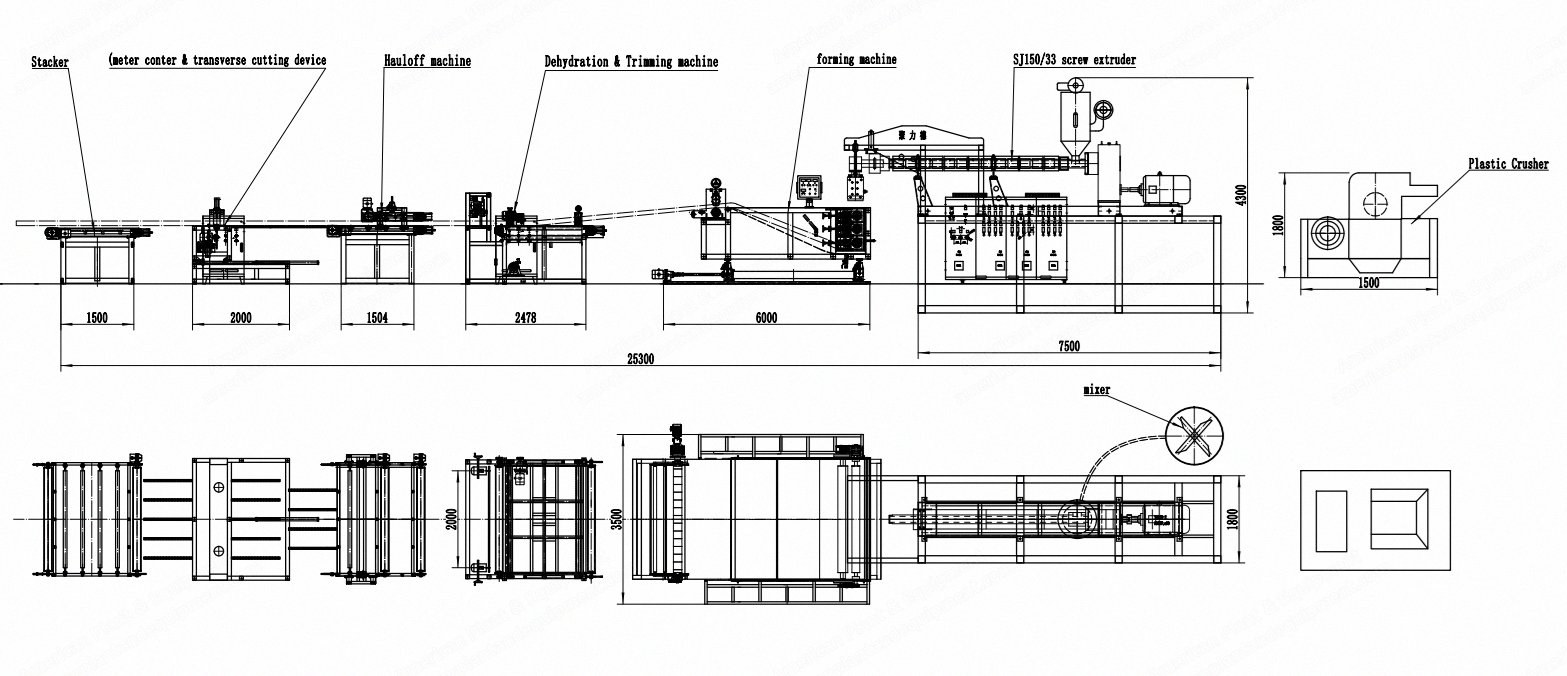

Pillow Filling Production Line for POE/EVA, 400 to 550 kg/h, 150mm Extruder

Description

Overview
1. Used for only 6 months
2. Status: stopped
3. Requires four containers to ship
4. NCM 8477.90.00
Application
1. To fill pillows with poe/eva with density 20 to 90 density (kgs/cubic meter) with thickness between 10mm and 200mm
Extruder
1. 1 screw extruder with extrusion capacity 400 to 550 kg/h
2. Screw with 150mm diameter, ratio l/d of 33:1 and maximum velocity of 70 rpm
3. Includes a spinneret matrix and 1 hydraulic screen changer helping the filtering of the liquid material
Forming Machine
1. 1 forming machine used to consolidate the filling by the use of a set of rolls and refrigerated water
Water Removal
1. 1 machine to remove the additional water by using ventilators
Border Cutting
1. 1 machine to cut the borders
Cutting Device
1. 1 device to cut with measures control
Stacking Device
1. 1 device to stack up the cut filling
Crusher
1. 1 crusher device with 2 fixed blades and 3 rotary blades with 360mm diameter

HS code	8477.90.00

Capacity	400 to 550 kg/h
Included	['1 screw extruder with spinneret matrix and hydraulic screen changer', '1 forming machine with rolls and refrigerated water', '1 water removal machine with ventilators', '1 border cutting machine', '1 cutting device with measures control', '1 stacking device', '1 crusher device with 2 fixed and 3 rotary blades (360mm diameter)']

Extruder Max Speed	70 rpm
