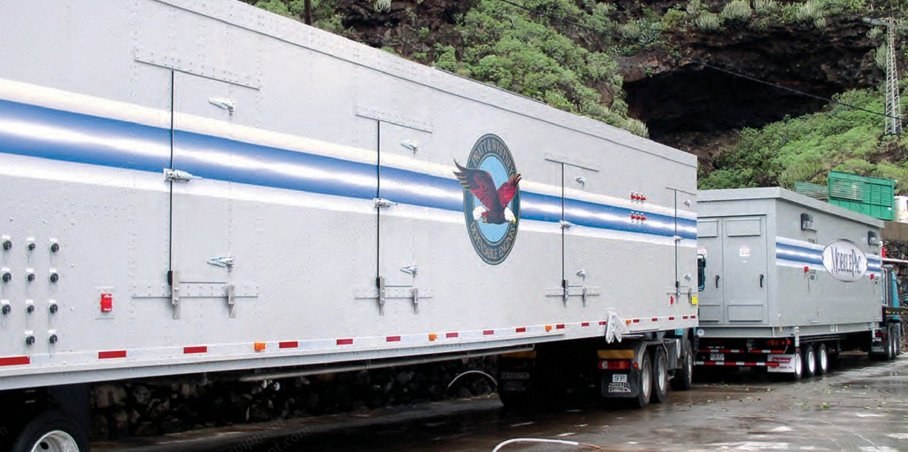

Mitsubishi, FT8, 2014, 25 MW, Dual Fuel, 50/60 Hz

Description

Overview
1. Dual fuel: liquid or gas
2. 50/60 Hz
3. 25000 kW output
4. Number of trailers: 2
5. Installation: 8 hours (site ready)
6. Noise: 95 dBA at 1 meter
7. NOx/CO: 50/100 mg/m³
Engine Specifications
1. FT8 1405 from Pratt and Whitney
2. 760 fired hours on diesel
3. Year: 2014
Condition
1. Dismantled and ready to ship
2. The unit was used as redundancy and only active in the year 2018
3. Unit was dismantled, stored and parked at local powerplant station in 2018
4. The brush generator, skids and accessories have been removed and placed inside containers in storage along with the exhaust and inlets
5. No recent borescope or official preservation documentation available
6. With standard manufacturer’s warranty for one year only if the buyer opts for commissioning at the final site at additional cost
7. Post warranty service also available, including spare parts delivery on paid basis

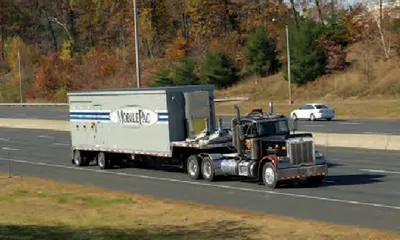

Trailers Included
1. Schnue trailer (1) – year: 2014, GVWR: 12000 lbs, GAWR all axles: 3000 lbs, with 295/80R/22.5 tires at 124 psi cold, with 22.5 x 9.0 rims
2. Haldex semi trailer (1) – input pressure: 6.5 bar, axle load: 11300 kg, suspension pressure: 4.40 to 6.5 bar
3. Fontaine trailer (1) – year: 2013, model: HCICD 12 WSA, type: trailer, frame rating: 80000/36288 L8/kg, in: 48/1463 feet/meter, tires: 255/70R 22.5 ply 16 rims 22.5 x 8.25, at pressure: 120/823 psi/kPa rating at 60 mpg/95 kpg, gross vehicle weight rating: 69185/31382 lb/kg, axles: 2

Capacity	25 MW (25000 kW)
Gas Generator Origin	FT8 1405 from Pratt and Whitney
Trailers	[{'gvwr': '12000 lbs', 'make': 'Schnue', 'year': 2014}, {'make': 'Haldex', 'type': 'Semi Trailer', 'axle_load': '11300 kg'}, {'gvwr': '69185 lbs', 'make': 'Fontaine', 'year': 2013, 'model': 'HCICD 12 WSA'}]

Frequency	50 Hz
