KHS, Innokeg Multibloc, 3.1L and 5.0L Can Filling Line, 650 to 700 CPH

KHS, Innokeg Multibloc, 3.1L and 5.0L Can Filling Line, 650 to 700 CPH

Description

  1. Overview

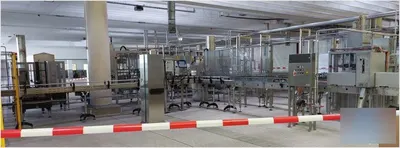

    1. Late-model, pre-owned canning line centres on a KHS Innokeg Multibloc filler and is supported by robotics, inspection, coding, and end-of-line packaging equipment from leading European suppliers.
    2. Designed for both pilsner and wheat beers, it handles 3.1-litre (0.82 gal) and 5.0-litre (1.32 gal) disposable steel cans at up to 700 containers per hour.
    3. All components form a single, continuous process train.
  2. Specifications

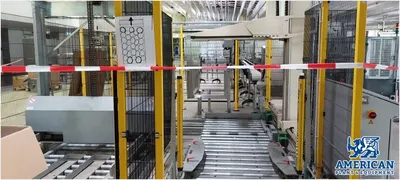

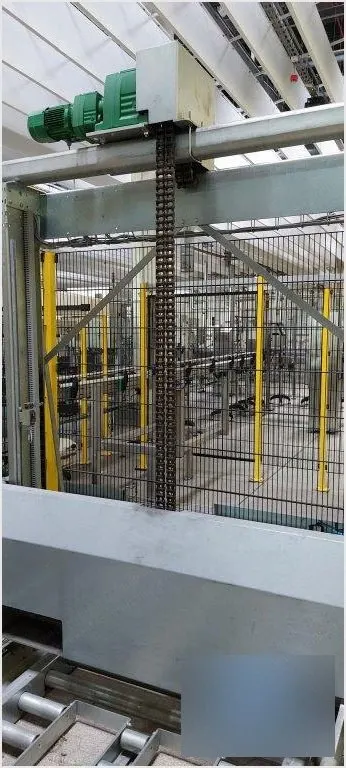

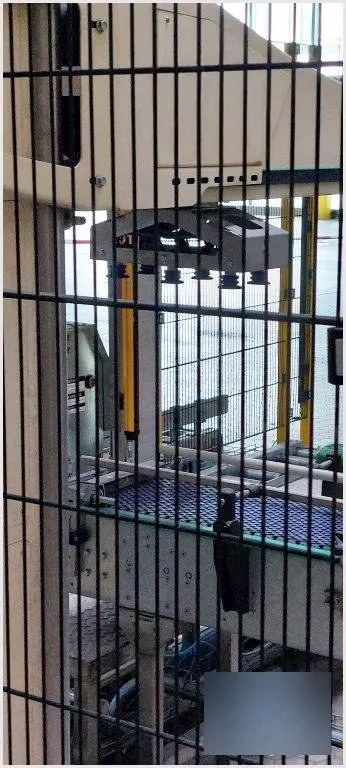

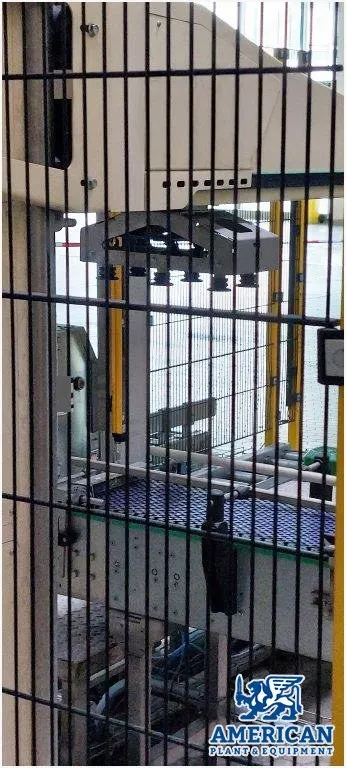

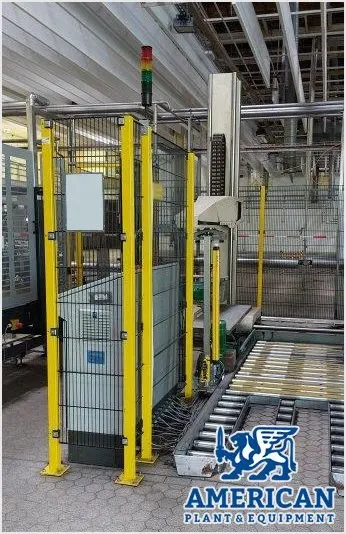

    1. Depalletiser – Roteg “Paro” robot, built 2015.
    2. External CO₂ feed station – provides purge gas at filler inlet.
    3. External can rinser/flusher – de-dusts and chills incoming cans.

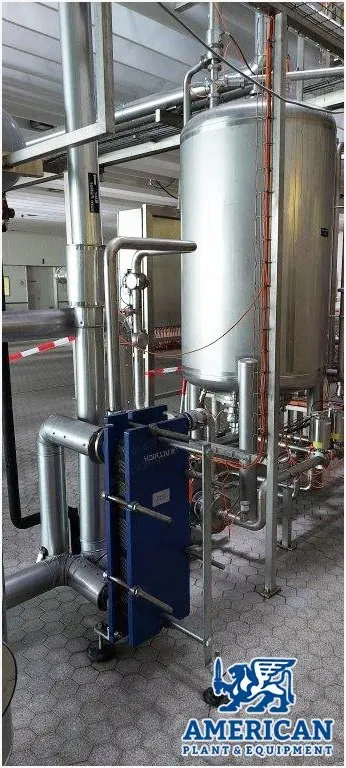

    4. Chilled buffer tank – Rudert RET 300, 300 L (79 gal) at 6 bar, 5 °C (41 °F).

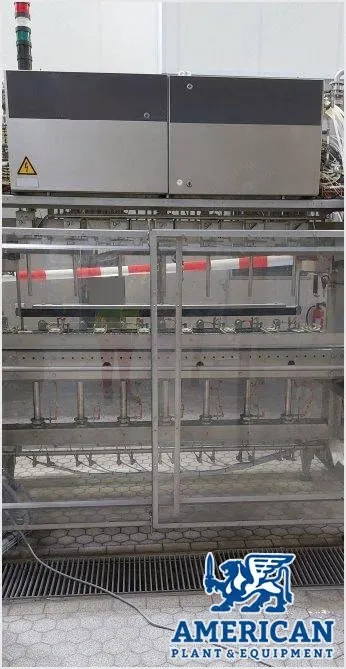

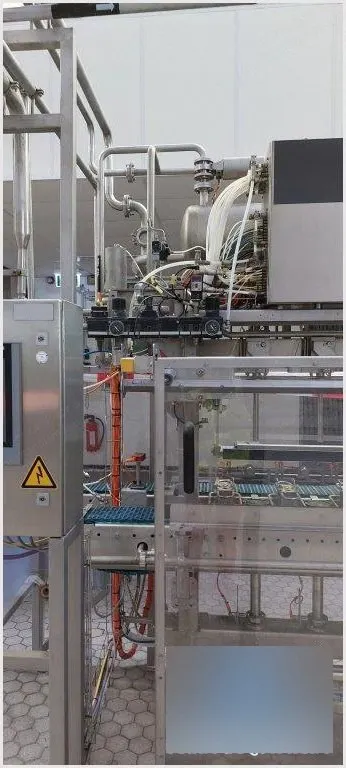

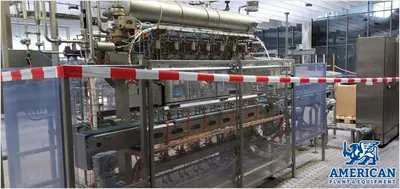

    5. Can filler – KHS Innokeg Multibloc, ≈700 cph, 3 to 5 °C (37 to 41 °F) product temperature; CO₂ up to 5.5 g L⁻¹ for pilsner and 6.5 g L⁻¹ for wheat beer.
    6. Lid seamer – NSM, model K65406-01.
    7. In-line check-weigher – Bizerba CWE.
    8. Vision inspection unit – rejects seam or fill faults.
    9. Date/lot coder – Videojet 1650 UHS, built 2014.

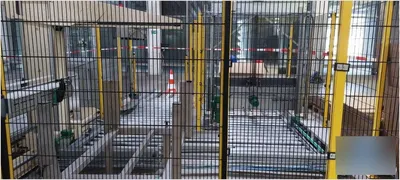

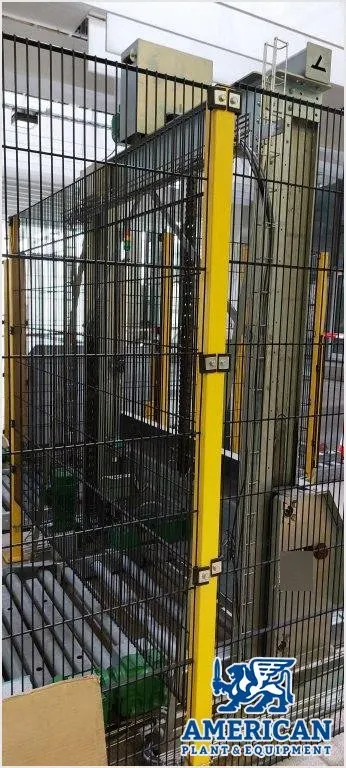

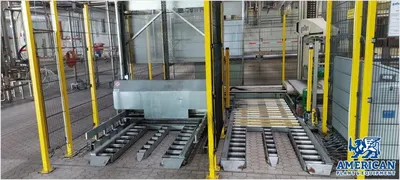

    10. Palletiser – second Roteg “Paro” robot, built 2014.

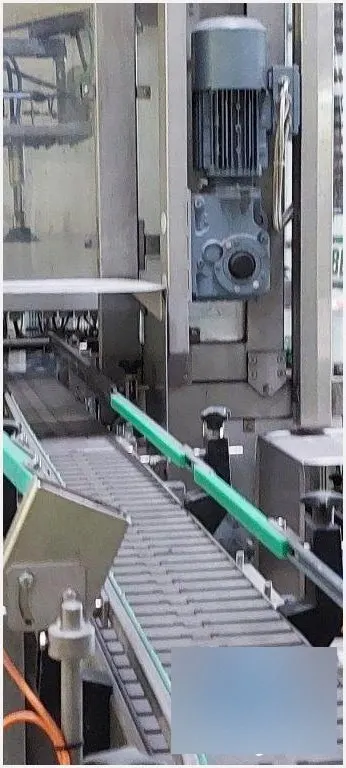

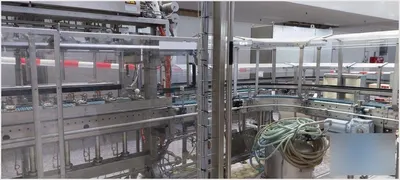

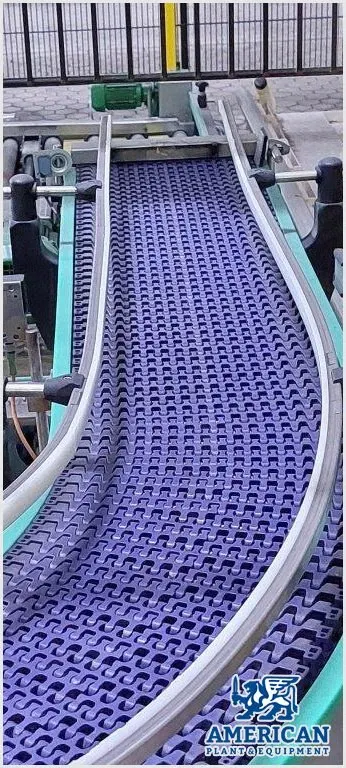

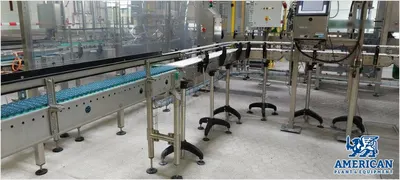

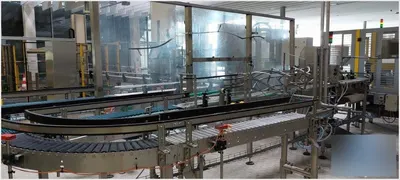

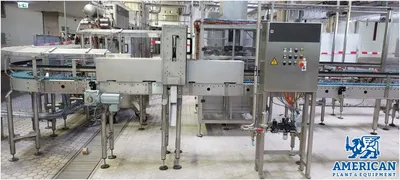

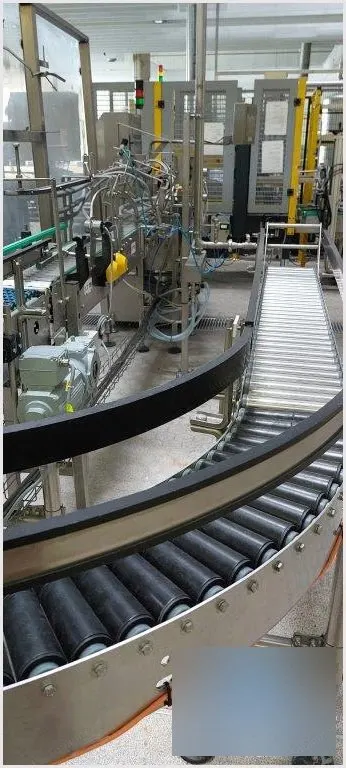

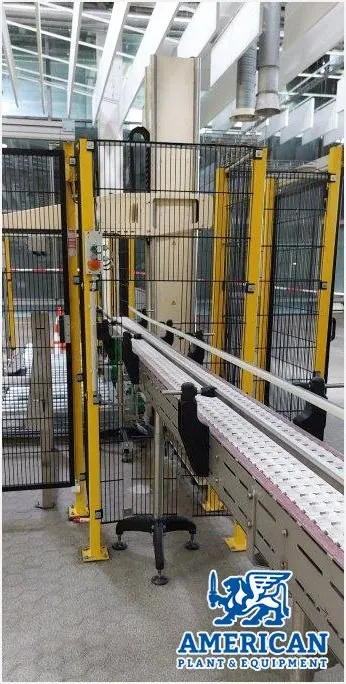

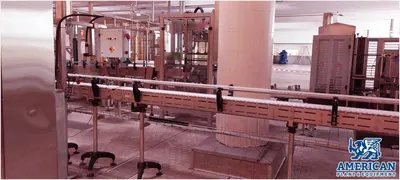

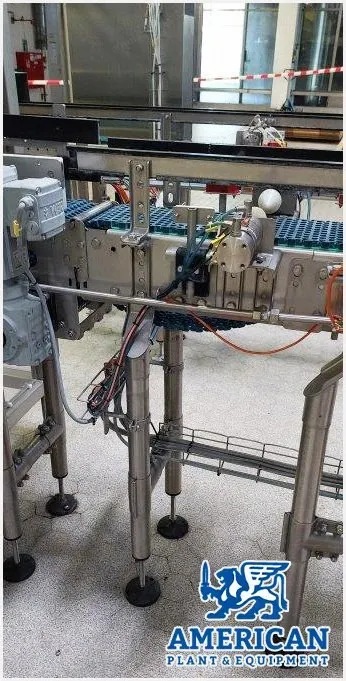

    11. Conveyors – Beyer “Multitrans F & G-RB” stainless-steel modular belt, supplied 2007.

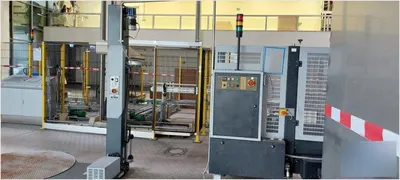

    12. Stretch-wrapper – M. J. Maillis FO automatic stretch station, built 2013.
    13. Carton system – Ullrich case packer with ancillary guides.
    14. Carton former – M. J. Maillis F144-DX, up to 14 boxes per minute⁻¹.

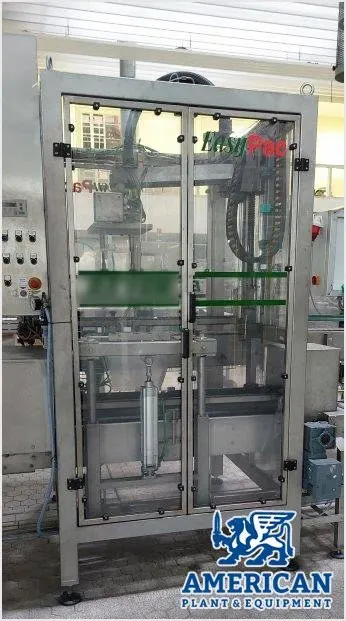

    15. Case packer – Beyer “Easypac”, 300 cycles h⁻¹, built 2007.

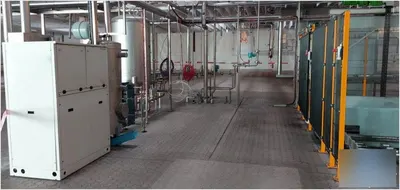

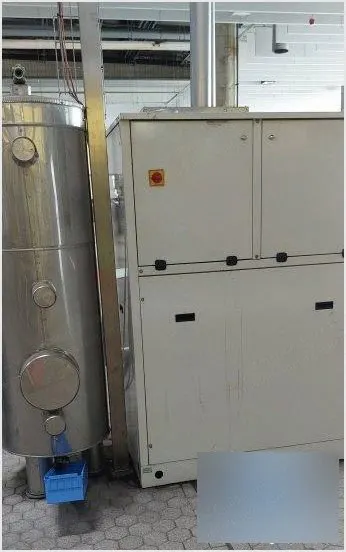

    16. Chiller package – GFKK refrigeration skid, 55.1 kW (188 kBtu h⁻¹) with auxiliaries.
    17. Can formats: 175 mm (6.89 inches) diameter; heights 165 mm (6.50 inches) and 246 mm (9.69 inches).
    18. Throughput: ≈650 cph for 3.1 L wheat beer, 650 cph for 3.1 L pilsner, and up to 700 cph for 5.0 L pilsner.
  3. Condition
    1. The system was switched off in December 2023 and is offered as is, where is.
  4. Included

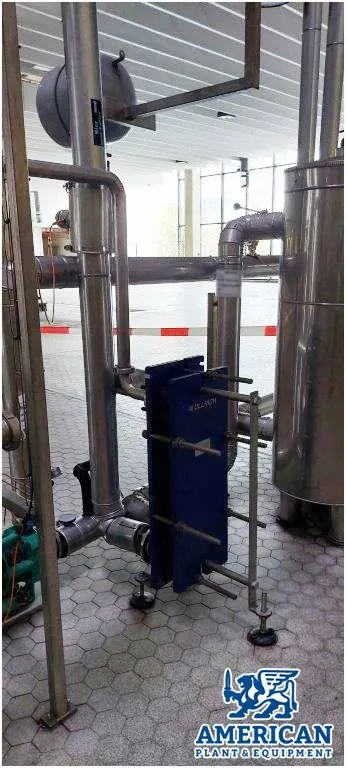

    1. Vertical and horizontal stainless tanks, plate heat exchangers, a beer separator, pipe-drag conveyor, air compressors, assorted flanges, control valves, boilers, and other brewery utilities may be purchased separately.
  5. Summary
    1. This integrated, medium-speed filling line delivers automated depalletising, low-oxygen filling, precision seaming, inspection, coding, and retail-ready packaging within a compact footprint.
    2. Its dual-size capability and chilled, CO₂-saturated process make it an excellent fit for craft brewers seeking to expand into steel party cans without the expense or lead time of new equipment.
