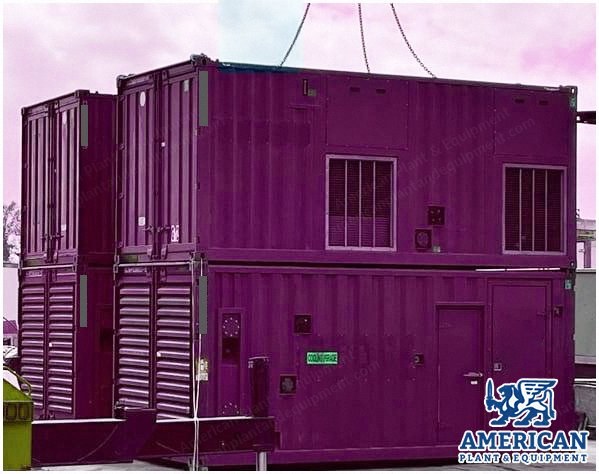

Cummins Aggreko, Osprey NHC20-QSK60G22, 1500 kW, 60 or 50 Hz, 1875 kVA, Containerized Gas Generator

Cummins Aggreko, Osprey NHC20-QSK60G22, 1500 kW, 60 or 50 Hz, 1875 kVA, Containerized Gas Generator

Description

  1. Overview
    1. 1875 kva
    2. 1500 kw
    3. Continuous duty
    4. 480 volts, 60 hz or 400 volts, 50 hz
    5. These 1875 kva units are set for continuous and parallel to grid ipp applications
    6. Less than 5000 hours of use since new
  2. Generator configuration
    1. Gas engine-driven alternator with control electronics

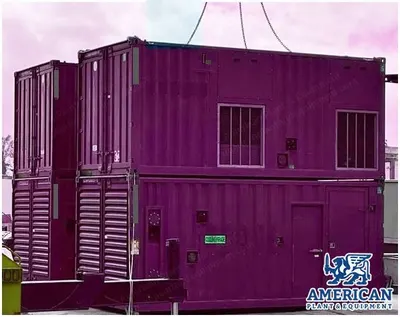

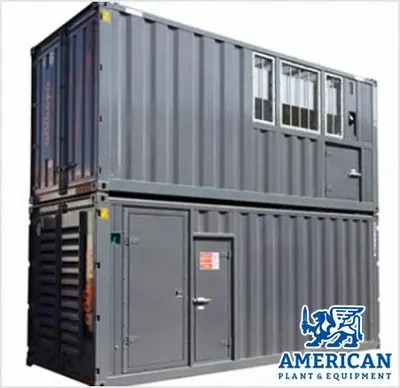

    2. Mounted on a bedplate and housed within a custom-built 20 foot stackable container
    3. The engine and alternator are integrally mounted
    4. This assembly is isolated from the bedplate base by rubber isolation mounts
  3. Standard package components
    1. Alternator and engine assembly
    2. Pressurized oil system
    3. Automatic control system
    4. Instrumentation
    5. Safety provisions
    6. Engine cooler pack
    7. Silencer
    8. Gas lines including external low pressure gas train and internal solenoid valve
  4. Cooling module
    1. A 20 foot containerized gas cooling module (gcm) containing the exhaust silencer and the cooling package for the engine low temp aftercooler and jacket water systems is rigidly mounted directly above the roof area of the main genset container
    2. The gas genset and gcm are supplied as a combined and complete gas generation package
