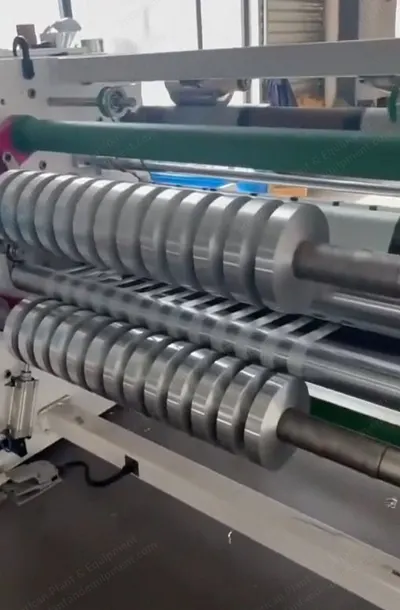

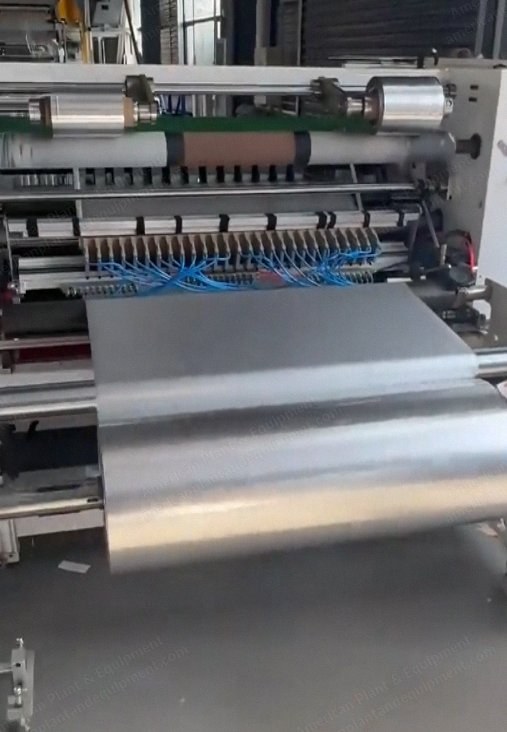

Description Unwind Section Unwind base: integral shaft type movable base, 1 set Unwind shaft: pneumatic compressed shaft, 3, 1 set Unwind brake: electromagnetic brake, 20 kg, 1 set Unwind web tension: plc diameter auto calculation, 1 set Rewind Section Rewind driver: 3 motors in a system to control tension, 1 set, Japanese Mitsubishi Rewind motor: ac motor, 5 hp, control by tension inverter, 1 set, Siemens Rewind system: pneumatic compressed shaft, 3, 2 sets Rewind gap roller: position auto activating by plc control, 1 set Trim remove device: strong blower with ac motor, 5 hp, 2 sets Spread roller: adjustable bowed roller, 100 mm, 1 set Maintenance kit, tools and instructions, 1 set Electrical Control system: plc programmable unit and Schneider inverter bus system, 1 set, Japanese Mitsubishi Control panel: touch screen (for setting, tension, length, etc.), 1 set, French Schneider Rewind tension: ultrasonic diameter detection into plc, to control e/a converter output tension, 2 sets Control panel box: connected control frame, 1 set Slitting Knives Shear cutter: male knife stand roller, 1 set Shear cutter: female knife stand roller, 1 set Male knife set: 105 mm x 60 mm x 20t (movable), 20 sets Female knife set: female knife sleeve outside diameter 105 mm x inside diameter 80 mm x t30 (moveable), 20 sets Specifications Dimensions: 3040 mm x 1900 mm x 1600 mm Weight: net 2200 kgs, gross 2400 kgs Total power: 15 kw Capacity: Speed 200 m/minEffective width: 1300mmRewind diameter: 450mmUnwind diameter: 800mm
