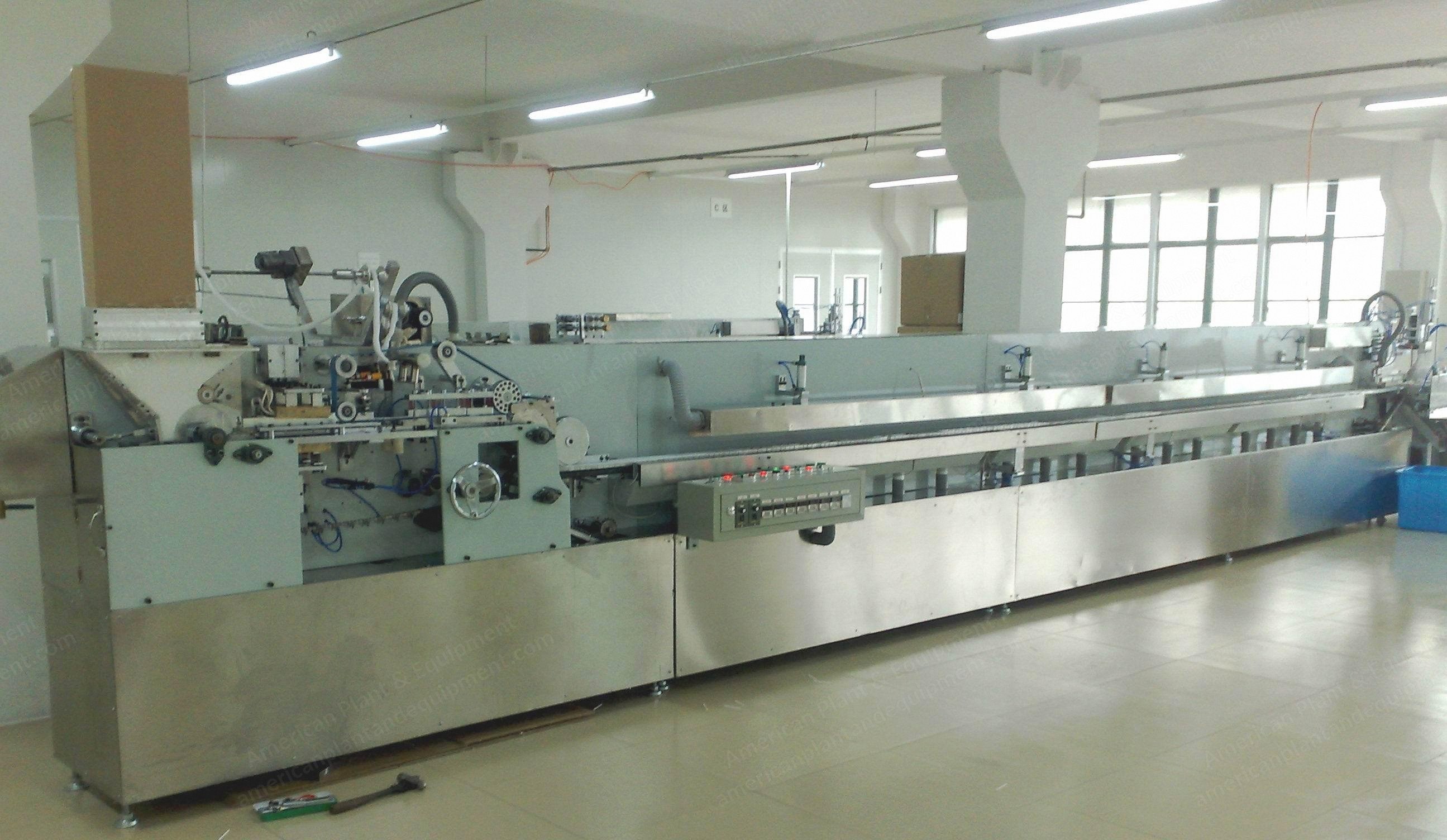

NovaStar, CE120, Q-Tip Progressing Auto Drying and Wrapping Machine, 5kW, 380V, 7500x1000x1400mm (New)

NovaStar, CE120, Q-Tip Progressing Auto Drying and Wrapping Machine, 5kW, 380V, 7500x1000x1400mm

Description

  1. Overview
    1. Fully controlled by a PLC system using an infrared ray warm-drying technique.
    2. Packing process completed by a vacuum slot style manipulator under microcomputer servomotor control.
    3. Requires only two workers, saving time and human resources while improving productivity and avoiding insalubrious or inaccurate manual packing.
  2. Packing Capabilities
    1. Suitable for 100 pcs and 200 pcs in square box.
    2. Suitable for 100 pcs, 200 pcs, and 300 pcs in plastic bag.
    3. Suitable for 400 pcs and 500 pcs blister card.
    4. Suitable for 100 pcs, 200 pcs, and 300 pcs in cylinder.
    5. Single-head medical cotton stickers can be packed in plastic bag per 20 pcs, 30 pcs, 50 pcs, 100 pcs, 200 pcs, and 400 pcs.
  3. Product Compatibility
    1. Produces medical cotton stickers, cosmetic tips, baby used tips, and other cotton tips made of plastic rod, paper stick, wooden stick, or bamboo stick.
  4. Specifications
    1. Machine dimensions: 7500 mm x 1000 mm x 1400 mm.
    2. Total power: 5 kW.
    3. Work voltage: 380 V.
    4. Drying power: 3 kW.
  5. Productivity and Quality
    1. Normal productivity for plastic rod and paper stick: 800 to 1100 pcs/min.
    2. Normal productivity for bamboo stick: 800 to 900 pcs/min.
    3. Normal productivity for wooden stick: 800 to 900 pcs/min.
    4. Nonconformance rate: within 1% for wooden stick and bamboo stick, 0.3% for plastic rod.
  6. Material Requirements
    1. Cotton spring should be 1.5 g/meters, with well-proportioned size and weight.
    2. Diameter of plastic rod should be 2.3 mm to 2.4 mm.
    3. Weight of plastic rod should be 0.15 g.
    4. Length of plastic rod should be 72 mm (discrepancy less than 1 mm).
  7. Additional Notes
    1. Packing clamp and technique differ depending on the kind of packing.
