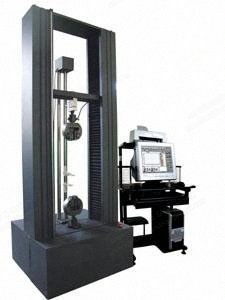

NovaStar, MC142, Servo Control Material Machine, 50KN, 400mm Test Width, 220V (New)

NovaStar, MC142, Servo Control Material Machine, 50KN, 400mm Test Width, 220V

Description

  1. Overview
    1. Measuring range: 50 kn
    2. Strength precision: ≤±0.5%
    3. Strength resolution: 1/100,000
    4. Strength magnification: seven section auto switchover
    5. Displacement resolution: 1/1000
    6. Displacement precision: ≤±0.5%
    7. Large deformation extension precision: ±1 mm
    8. Speed range: 0.001 to 300 mm/min
    9. Data transmission mode: rs232
    10. Data display: m212c software with computer screen
  2. Specifications
    1. Test width: 400 mm
    2. Effective travel (clamp included): 900 mm
    3. Total power: 1.5 kw
    4. Power supply: 220 v single phase
    5. Dimensions (l x w x h): approx. 640 mm × 720 mm × 2000 mm
    6. Machine weight: approx. 380 kg
  3. Included
    1. One set of clamp for nonwoven narrow fabric
