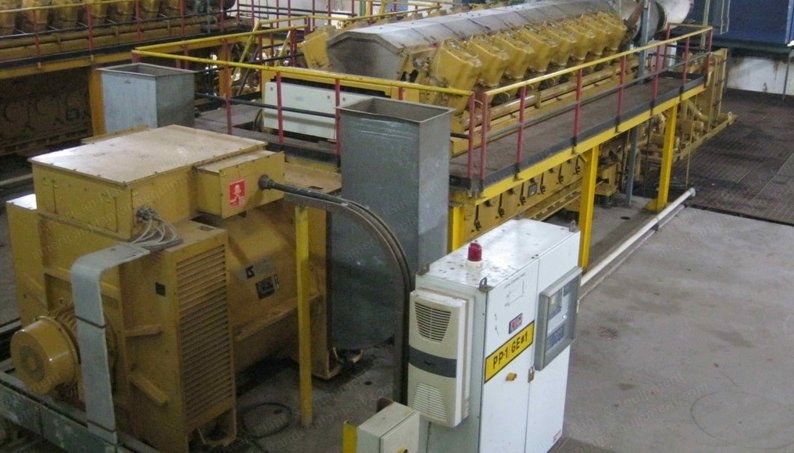

Caterpillar, G16CM34 CHP, 2005, 12.6 MW, 50Hz, 11kV, 2 Units

Description

Overview
1. Two generators, 6328 kw each
2. Leroy Somer alternator, 11 kv, 750 rpm, 50 hz
3. Year 12/2005, installed 2006
4. Run 25,000 and 29,000 hours (note: Caterpillar recommends first overhaul at 90,000 hours)
5. Units are in standby mode and started every second month to keep in top shape
6. All service records available
7. These are low rpm so require low oil consumption
Specifications
1. 500 rpm natural gas engine with Leroy Somer generator
2. Electrical capacity: 2 x 6.3 mw / 11 kv / 50 hz
3. Steam pressure: 12 bar
Included Equipment
1. Complete plant: heat exchangers, expansion tanks, starting system controls, air compressor, oil tanks, pumps and exhaust boilers (steam production 2 x 2.5 ton per hour)
2. Completely equipped with steam heat recovery and radiator cooling
Condition
1. Excellent working condition
Shipping Estimate
1. Both engines need their own 40 in flat bed container (open rack); both generators need 20 in flat bed container
2. Electric and control cabinets need one 40 in hc container
3. Both accessory modules in front of generating units require one 40 in ot container
4. Gas regulating units plus starting air compressor packages etc need one 40 in container
5. Remaining ducts, filters etc maybe 2 x 40 in ot container
6. 2 x 40 in flat bed containers (weight 82,000 kg each)
7. 2 x 20 in flat bed containers
8. 2 x 40 in containers (one hc, one standard)
9. 4 x 40 in open top containers

Frequency	50 Hz
Voltage	11,000 V
