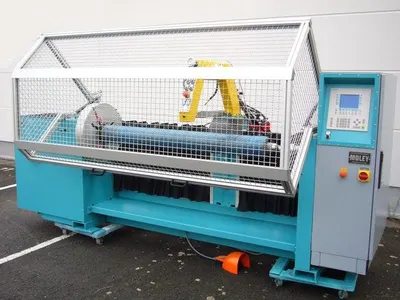

Moley, Standard 500/2400, Automatic Roll Slitting Machine, 2400mm, 480mm Knife (New)

Moley, Standard 500/2400, Automatic Roll Slitting Machine, 2400mm, 480mm Knife

Description

  1. Overview
    1. For cutting rolls of soft-wound materials, e.g. textiles, nonwoven, rubber, foam and similar
    2. Make: Moley
    3. Model: Standard 500/2400
    4. Width: 2400 mm
    5. With straight Moley-knife: 480 mm
    6. Cardboard core inside diameter: 76 mm
    7. Cutting widths at random
    8. Max. roll weight (roll loaded and pinole locked) ca. 80 kg
    9. Displacement cut with straight knife blade
    10. Solid construction; two side plates connected by metal bars
    11. Cutting head mounted on sledge carriage, sliding on precision ball bearing guide-way
    12. Painting: RAL 5018
    13. Electrics according to Euronorm EN 60204/1, PLC Siemens S7
    14. Operating voltage: 3-PE - 400 V - 50 Hz - compressed air required: ca. 7 bar
    15. Construction/execution according to European standard CE
  2. Roll-Shaft Reception/Clamping Device
    1. Left: face-plate PMS2 mounted on swivel-main bearing with pneumatic locking
    2. Outside clamping (roll circumference): pneumatically, by clamping jaws
    3. Inside clamping (cardboard core): mechanical by three-jaws chuck or pneumatically by expanding rubber cuffs (according to application)
    4. Right: manually activated pinole lock with loading aid
  3. Roll Shaft
    1. (1) Rigid shaft (hollow) with PVC cover for cardboard core inside diameter 76 mm
  4. Roll Rotation
    1. Polyphase gear-motor with frequency converter (continuously adjustable speed regulation, integrated slow-acceleration and rapid slow-down to stop devices), right/left inversion of roll shaft
    2. Motor power ca. 3.0 kW - speed range ca. 20 to 300 min-1
  5. Cutting Arm Advance
    1. Horizontal: brake-gear motor with frequency converter and ball bearing assy in connection with high-resolution impulse generator, positioning precision ±0.1 mm
    2. High-dynamic drive with automatic speed adjustment (fast-slow speed) according to cutting width and rapid return travel for maximum productivity
    3. Vertical: cylinder D100 with two-speed control for cutting arm descending speed (fast speed for cutting through fabric, slow speed for cutting through cardboard core), adjustable height and depth limit positions (penetrating depth of cutting blade), descending speed adjustment via hydro-pneumatic by hand-wheel with scale

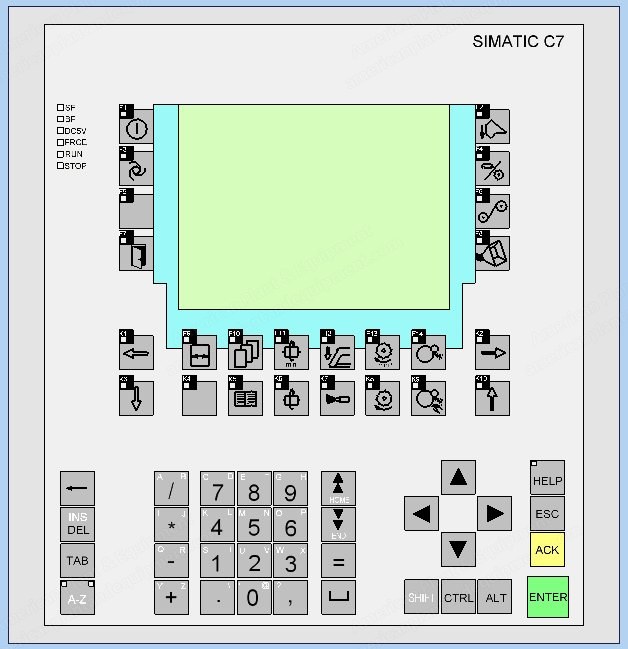

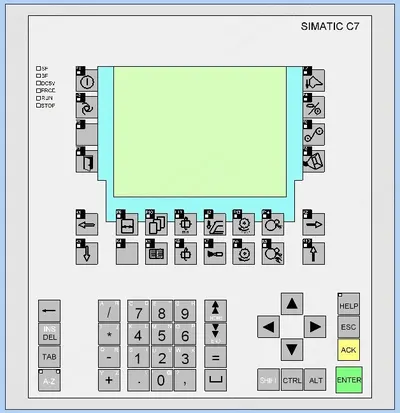

  6. Operating Terminal MMI
    1. Computer controlled command & display terminal (MMI)
    2. Relevant parameters are set comfortably on a keyless board which acts as an interface between operator and machine
    3. Cutting widths, number of pieces and rotating speeds are entered and shown on a large easy-to-read display which also provides user guidance and information throughout the operation of the machine
    4. With storage facility for cutting data in material related badges for easy recall
  7. Cutting Tool
    1. 1 Moley knife A 2.5, straight blade, non-serrrated
  8. Available Upon Request
    1. Holder for conveyor-type circular knife blade KRM diameter 450, consisting of KRM-bearing, adjustable band-brake, fastening nut and knife protection (two parts), mounted on Moley cutting arm
    2. Spray cooling unit Spraymat with two vaporizer heads (position and volume adjustable) and liquid container, comfortable on/off control via MMI keyboard + water collection tray inox
  9. Cooling
    1. Air cooling device (volume adjustable), comfortable on/off control via MMI keyboard
  10. Safety Guard
    1. Solid alu frame with metal grid covering entire working width on front side of machine, swinging open upwards/back, with safety mechanism (opening guard during automatic operation will stop machine)
    2. The above guard prevents access to the machine during automatic operation from the front side
  11. Available Equipment
    1. For easy handling of material rolls (loading/unloading)
    2. THW3S EB - lifting trolley (auxiliary device), charge max ca. 100 kg, with motorized (12V) height adjustment by push-button, lifting range 650-950 mm (floor level), roller stop in random position
  12. Dimensions and Weight
    1. CIF data (machine without kombi-option in crate - AB2400): ca. 5.50 x 1.80 x 2.00 m (length x width x height)
    2. Gross weight: ca. 2.0 t
