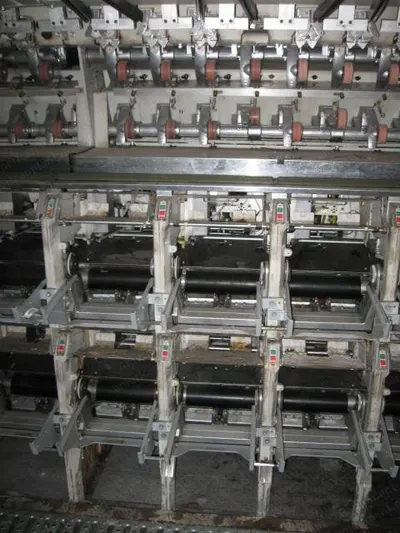

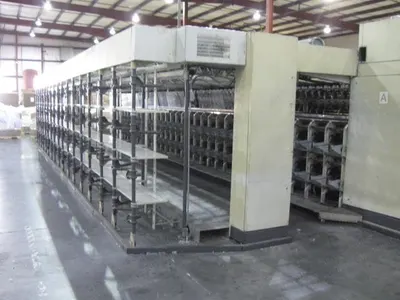

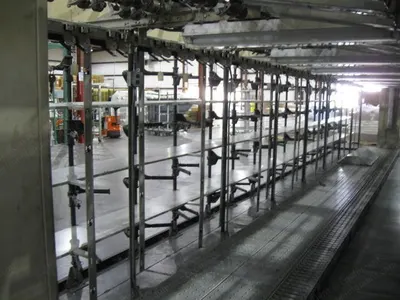

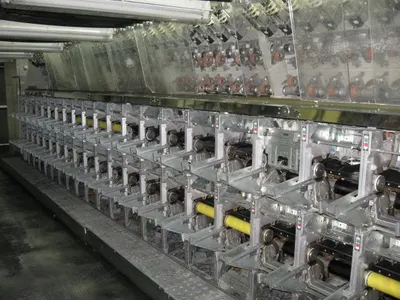

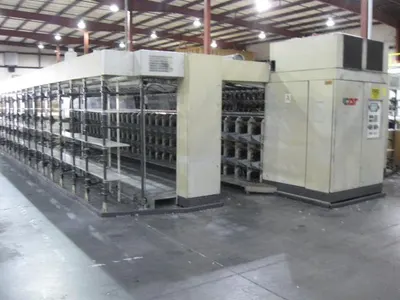

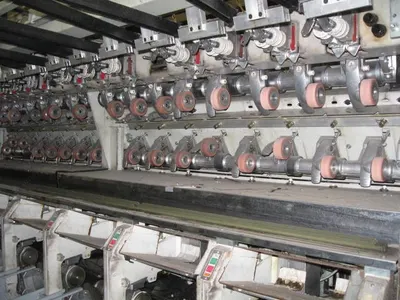

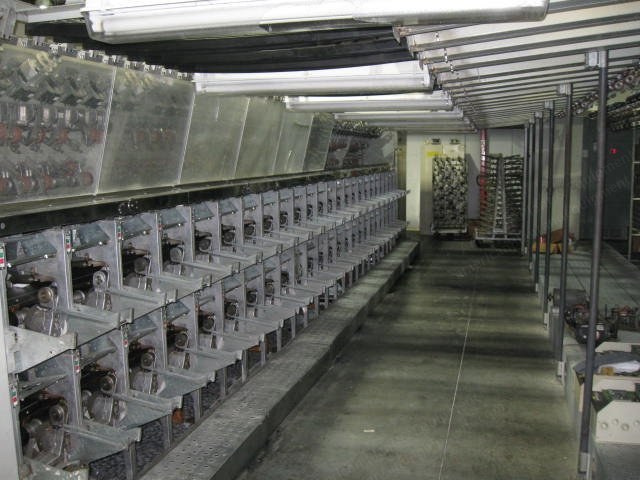

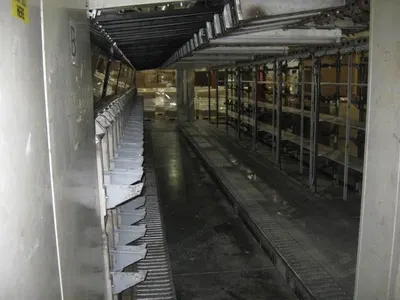

ICBT, FT15E2HT/AD, 96 Positions, 1500mm Speed, Texturizing Machine

ICBT, FT15E2HT/AD, 96 Positions, 1500mm Speed, Texturizing Machine

Description

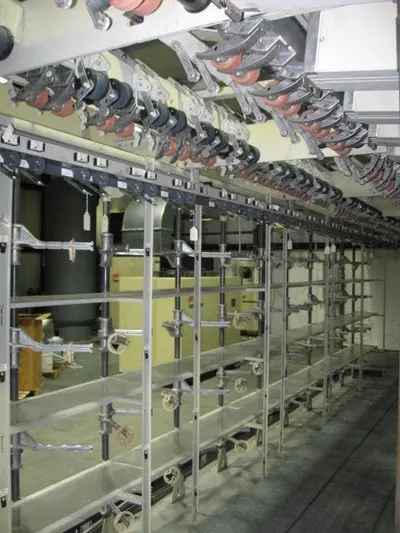

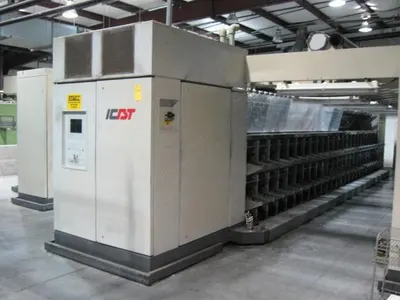

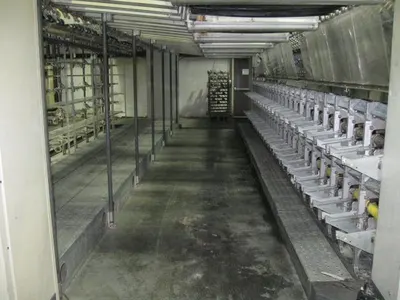

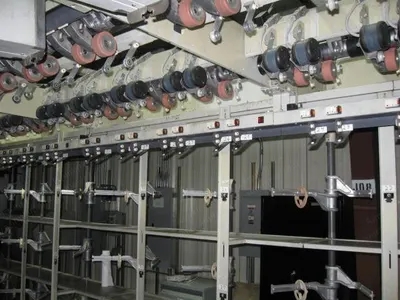

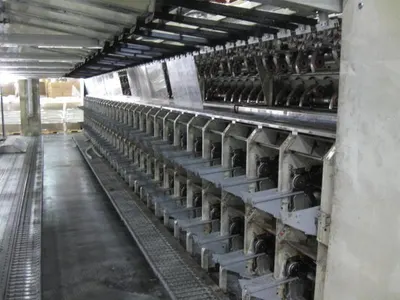

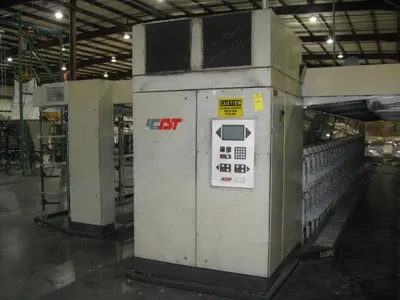

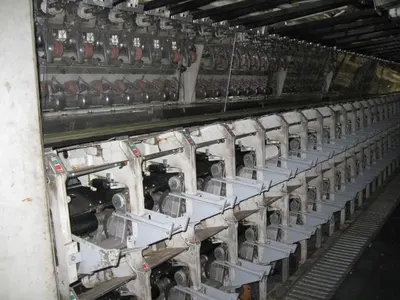

  1. Machine A: Icbt Texturing Machine 96 Positions
    1. Model: FT15E2HT/AD
    2. 96 positions, 48 positions per side
    3. Inverter driven and microprocessor controlled

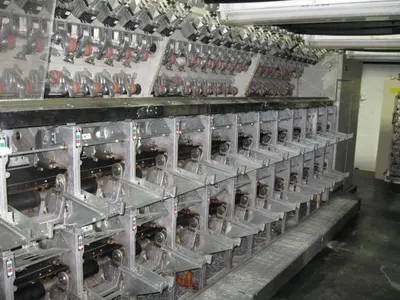

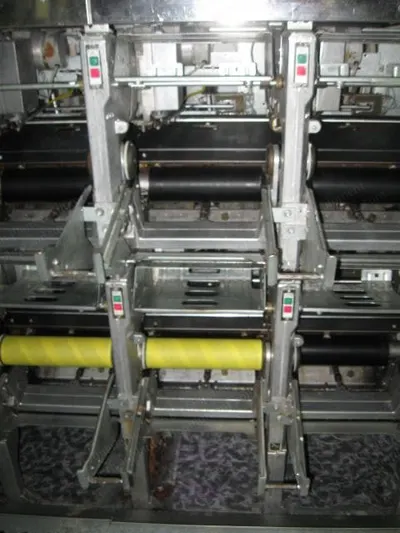

    4. With two take-up decks
    5. For texturing of synthetic filament yarns
    6. POY or FDY
    7. 1500 mm speed
    8. Running yarn counts from 30-300 denier
    9. Length of heater is 1000 mm
    10. Temperature ranges from 400-700 deg. C

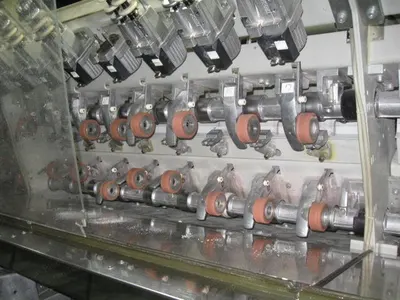

    11. Icbt motorized spindle
    12. Temperature ranges from 100-250 degrees C (S/Z possibility)
    13. Package dimensions: 300 mm maximum diameter x 250 mm traverse
    14. 460 volt
    15. 60 cycle
    16. 98 amp
    17. 125 psi
  2. Machine B: Icbt Texturing Machine 128 Positions
    1. Model: FT12E2
    2. 128 positions, 64 positions per side
    3. Inverter driven and microprocessor controlled
    4. With two take-up decks for texturing of synthetic filament yarns
    5. POY or FDY
    6. 1500 mm speed
    7. Running yarn counts from 30-300 denier
    8. Length of heater is 1000 mm
    9. Temperature ranges from 400-700 deg. C
    10. Icbt motorized spindle
    11. Temperature ranges from 100-250 degrees C (S/Z possibility)
    12. Package dimensions: 300 mm maximum diameter x 250 mm traverse
    13. 460 volt
    14. 60 cycle
    15. 98 amp
    16. 125 psi
