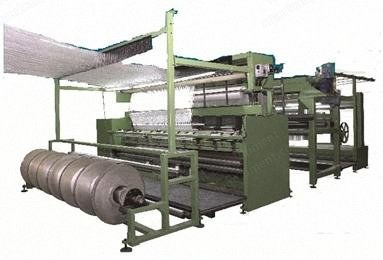

NovaStar, NN306, New, 3300mm Working Width, Gauge 14 or 22, 1500 RPM, 7.5kW Main Motor (New)

NovaStar, NN306, New, 3300mm Working Width, Gauge 14 or 22, 1500 RPM, 7.5kW Main Motor

Description

  1. Overview
    1. Gauge: 14 or 22
    2. Needle type: compound needle
    3. Nominal width: 3300 mm
    4. Guide bar: 1 to 2
    5. Up to 1500 rpm
  2. Specifications
    1. Length of stitching yarn adjustable from 0.5 to 5 mm
    2. Let-off mechanism: negative or electric let-off
    3. Beam type: 30", 21" (760 mm, 530 mm)
    4. Material: stitch yarn, polyester, polyamide, low elastic yarn, spandex, basement fabric, fiberglass, chop roving, nonwoven, gsm
    5. Lateral movement unit: bistatic pattern beam
    6. Cutting unit: adjustable blade cutting unit
    7. Draw-off mechanism: electric
    8. Winding unit: adjustable electric and friction type, max. roll diameter up to 800 mm
    9. Support fabric unit: active and full width supportive fabric unit
    10. Length of chop roving unit: 50 mm ± 3 mm
    11. Main motor: 7.5 kW
    12. Total power: 15 kW
  3. Features
    1. Touch-screen
    2. With alerting system
    3. With power grid defensive system
