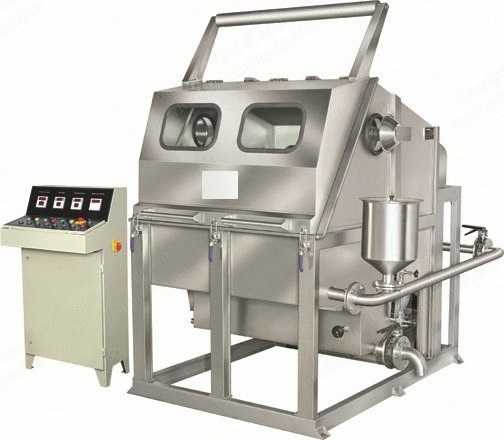

Description Overview Auto spray hank dyeing machine comprising of enclosed body, top hood and tank welded with argon arc. Perforated stainless steel spindle with 1000 mm working length which rotates the hank moving device. Liquor circulating with quality chemical process pump with suitable motor. Complete machine running with PLC control panel. Water level indicator provided on bottom of the tank. Necessary internal pipe connection for circulating the liquor during the process of hank dyeing will be provided with machine. Direct and indirect steam heating coil to be provided at the bottom of tank. Perforated false bottom to be provided at the bottom of machine. All valves are pneumatic operated. With mixing tank and motorized stirrer. Specifications Type of machine: four arm. Floor space dimensions: length 2300 mm x height 2100 mm x width 2700 mm. Required power: 6.5 H.P. Production: up to 5 to 6 kg per arm, depends on type of hank. Production: 20 to 24 kg per batch. Included Valves Pneumatic valve. Spray valve. Mixer valve. Drain valve. Steam valve. Included Motor Mixer motor: 0.50 H.P.
