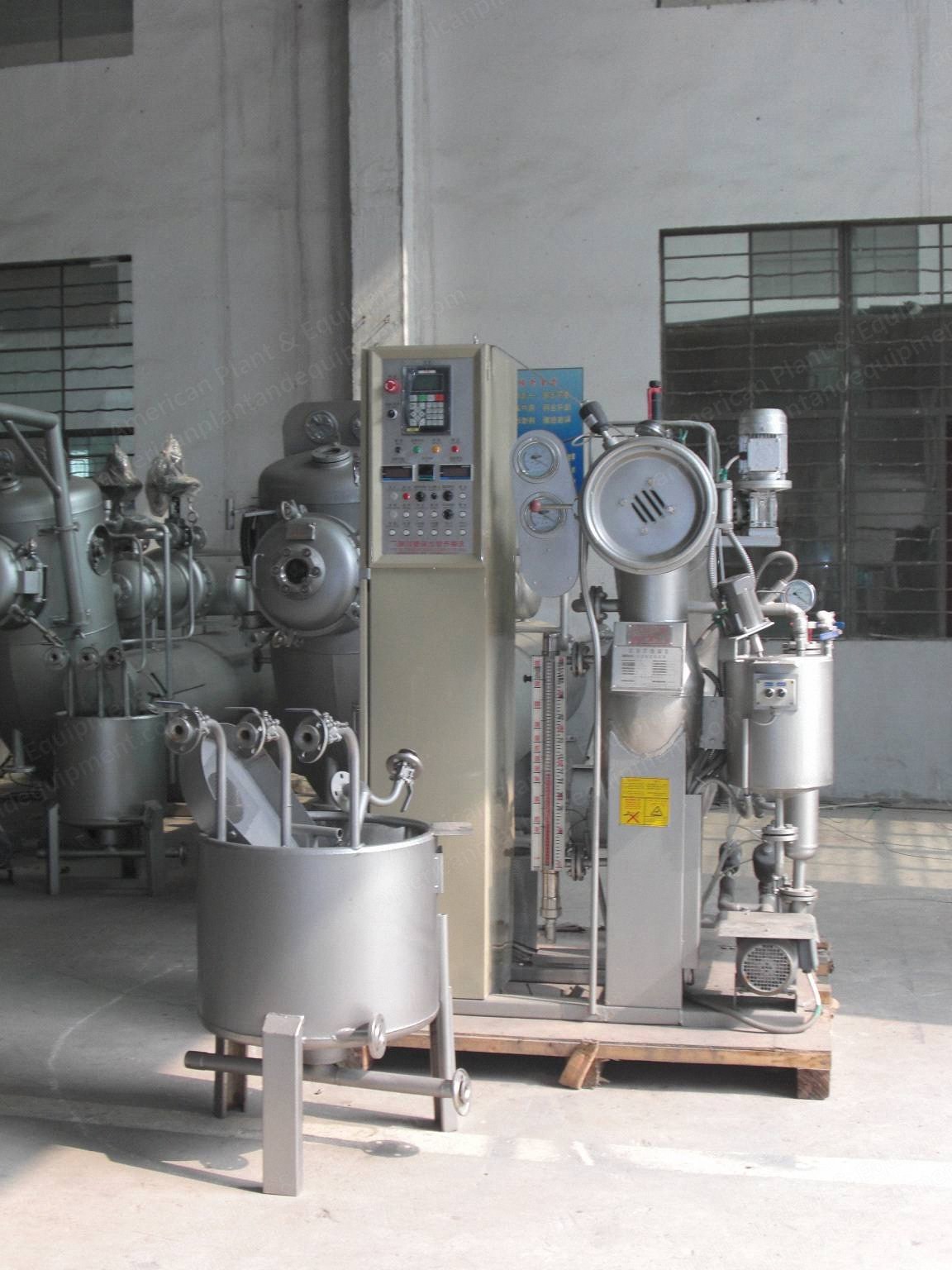

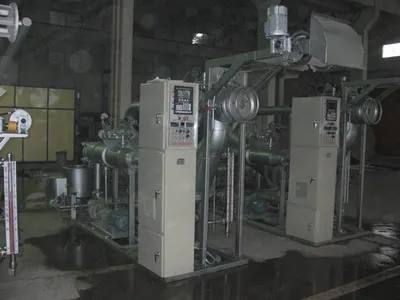

Description Overview Can load 8 to 15 kg fabric Fully-automatic performance; easy to operate Liquid ratio: for polyester is about 1:6 to 8 for cotton, about 1:8 to 10 Air compressor is needed to open valves; 5 kg pressure is needed Specifications Capacity: 8 to 15 kg Total power: 7.7 kW Overall dimensions: 2450 mm x 1050 mm x 2060 mm (96 x 42 x 81) Material: SS321 Nozzle: round type (diameter: 100 mm) Motor: Anhui Wannan PLC: Mitsubishi (Japan) Frequency inverter: Mitsubishi (Japan) Small scale relay: APT Dyestuff dosing pump: precision casting Valve for steam valve, water inlet, water outlet, charge valves are stainless steel "Y" angle valve Mechanical seal: joint venture Main electrical parts: Siemens Pressure difference sensor: Japanese brand Electrical push button: Schneider Voltage: per customer request Heating And Cooling Rates Heating rate: 25°C to 100°C average 5°C/min 100°C to 130°C average 2.5°C/min (at steam pressure of 0.7 MPa) Cooling rate: 130°C to 100°C average 3°C/min 100°C to 85°C average 2°C/min (at water pressure of 0.3 MPa) Valve Diagram V1 pressure increasing valve V2 pressure relief valve V3 door pressure relief valve V4 overflow valve V5 inlet valve V6 blow down valve V7 steam valve V8 cooling valve V9 cooling outlet valve V10 drain valve V11 non-return valve V12 recoil valve V13 back water valve V14 steam heating valve V15 water inlet V16 water draining (dewater)
