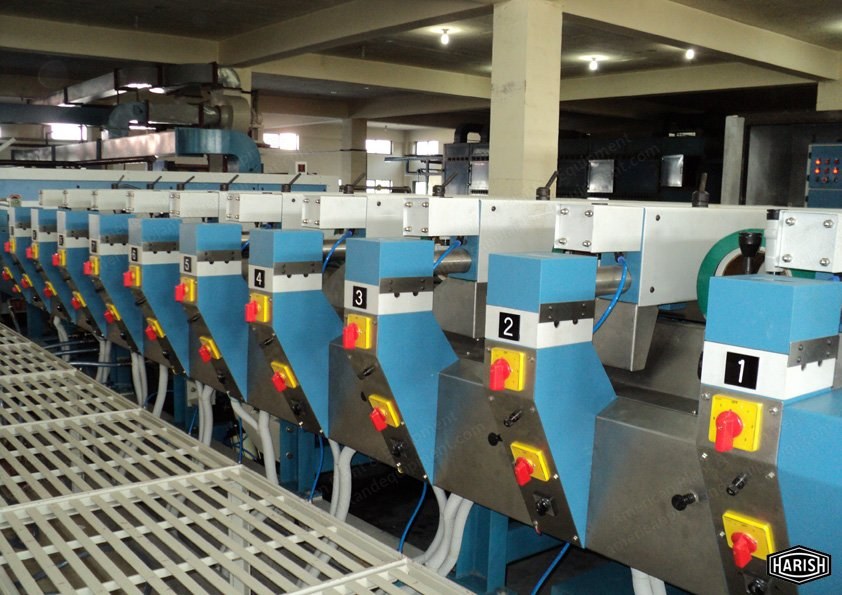

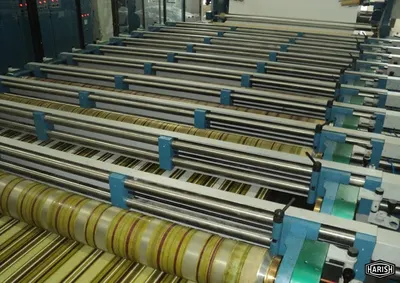

Description Main Specification Printing section Printing width: 3200 mm Number of colors: 16 Number of printing units: 16 Repeat: 640 mm Blanket drive: A.C. inverter system Screen drive: Electric motor for individual screen Repeat correction: ± 20 mm manual Lateral correction: ± 20 mm manual Diagonal correction: ± 20 mm manual Type of squeegee: Electro-magnetic Magnet pressure: 0 to 100 % in steps Gap between blanket and screen: Settable from 0 to 3 mm stepless Screen lifting: Manual Dryer section Number of chambers: 4 Medium of heating: Gas heating Fabric passage: With partial conveyor support Number of fabric passages: 3 Standard Scope of Supply Feeding section Steel fabricated structure with braced binders High entrance with swivel tension arrangement Batch unwinding arms with 150 mm dia rubber filleted roll driven through 2.2 kW A.C. inverter drive Pneumatic cloth guider KF-2020 with LH side fixed and RH side adjustable 2 S.S. guide rolls 127 mm dia Fabric glueing device S.S. curved plate Rubber coated glueing roll (pneumatically actuated) Pneumatic control panel Printing section Steel fabricated structure, precision machined suitable to accommodate 16 printing units Ebonite coated blanket drive roll A.C. inverter drive for blanket Blanket tensioning roll Pair mechanical blanket tensioning system Guide rolls for blanket duly teflon coated Imported rubber blanket Blanket centering device with A.C. motor and limit switches Blanket washing device with pneumatic lifting and lowering system Pneumatic control panel for above Mechanically adjustable scrapper doctor Printing units 16 sets printing unit frames precision machined 16 sets manual lateral adjustment assembly (with scale read out) 16 sets manual diagonal adjustment assembly (with scale read out) 16 sets electric motors with gears 16 sets thrust bearing type end ring holder with gears suitable for 640 mm repeat 16 sets color pump with flexible hose and quick coupling 16 sets squeegee pipe assembly suitable for 3200 mm printing width 16 sets magnet rod in 8, 10, 12 and 16 mm dia suitable for 3200 mm printing width 4 sets magnet rod in 20 mm and 22 mm dia suitable for 3200 mm printing width 16 sets color level sensor with height adjustment mechanism 16 sets manual screen lifting arrangement 16 sets manual squeegee locking system Dryer section 2 sets steel fabricated structure for 1.5 m long per chamber 2 sets blower with 7.5 kW motor per chamber with A.C. inverter (1 inverter for blower motors per chamber) 2 sets jet boxes for impinging air from top for 1st and 2nd pass and top and bottom for 3rd pass 2 sets gas burners 'Weishaupt' make per chamber 3.7 kW A.C. inverter drive for conveyor Conveyor drive roll 7 conveyor guide rolls Conveyor centering system with A.C. motor and limit switches Pneumatic conveyor tensioning arrangement Plaiting device with pendulum arms driven by 1.5 kW A.C. inverter drive Auxiliary equipment Necessary cat walks around the printing area Suction hose pipes for color pumps Pneumatic control panel Screen washing unit Electric control panel Central electrical cabinet Switch gears Inverters for plaiting device, blowers, fabric drawing, etc. Level control unit (1 set per color) Cables for wiring Spare parts
