Trutzschler, Blowroom Line, 1991, Openers, Cleaners, and Mixers

Trutzschler, Blowroom Line, 1991, Openers, Cleaners, and Mixers

Description

  1. Overview
    1. Lot of used Trutzschler blowroom and cleaning equipment for textile fiber processing
    2. Machines manufactured between 1985 and 2005
    3. Includes bale openers, cleaning machines, dedusting machines, flock feeders, fans, and a filter plant
  2. Bale Openers

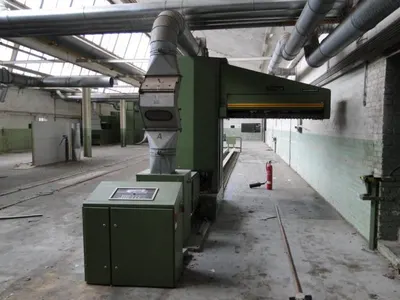

    1. Trutzschler BDT automatic bale-opener, 1720 mm, year 1991, with Blendomat 019/1720, bale layout 2 x 20 bales, programmer, Blendcommander "BC"
    2. Trutzschler BDT automatic bale-opener, 1720 mm, year 1992, with Blendomat 019/1720, bale layout 2 x 30 bales, programmer, Blendcommander "BMC"

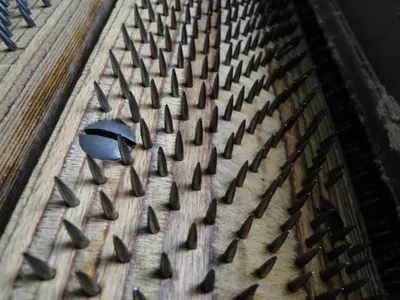

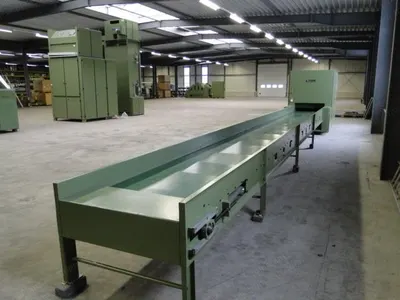

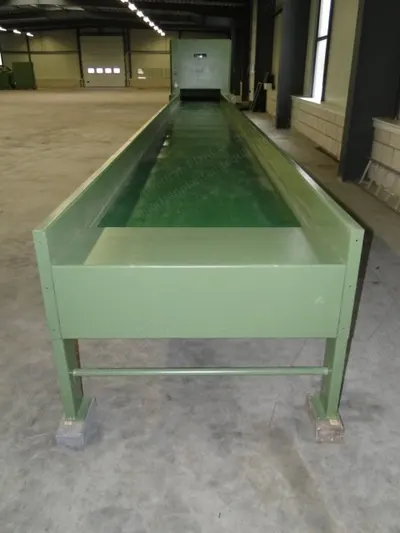

    3. Trutzschler bale opener-fine opener 1000 mm, year 1992, for synthetic fibers type CS/FO, feed table length 10000 mm, fine-opener with full pin beater, capacity 300 kg/h
  3. Cleaning and Dedusting Machines

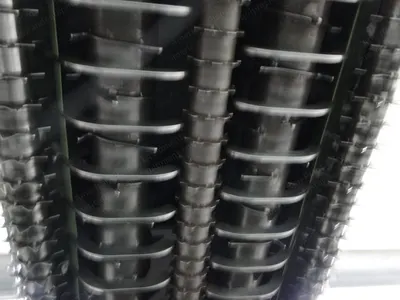

    1. Two Trutzschler RST 1200 cleaning/dedusting machines, 1200 mm, year 1991, with dedusting unit type SE with integrated fan, opener with 3 sawtooth beaters, carding segment, programmer Cleancommander
    2. Trutzschler DX dedusting machine, 1400 mm, year 1991, with 2 fans type TV 425
    3. Trutzschler cleaning machine, year 1985, with condenser type LVSA, feeding, cleaning unit type BE 1000, porcupine cleaner type RN 1000, completely refurbished in 2011

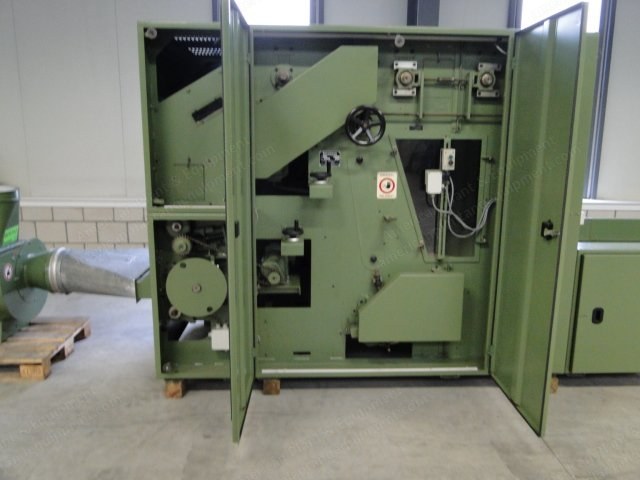

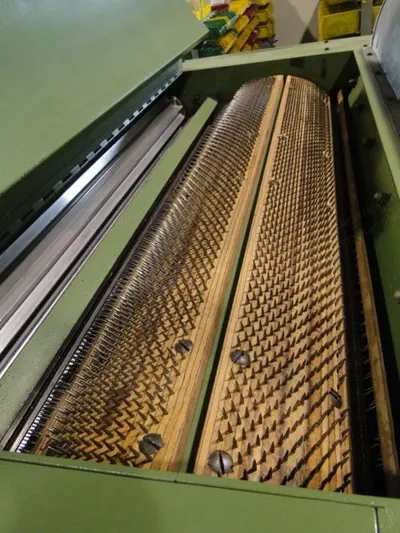

    4. Trutzschler opening/cleaning machine, year 1991, with condenser type LVSA, feeding/cleaning, tower type BEB with beater, opener/cleaner type RV 1200 with full pin beater carding segment, knife
  4. Heavy Particle Separators
    1. Two Trutzschler ASTA 800 heavy particle separator Separamat, year 1992, with collecting device in plastic bags

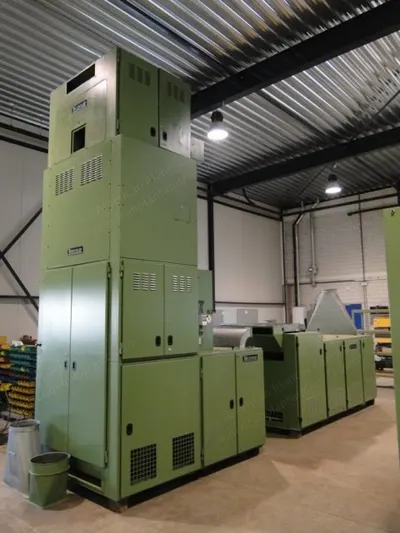

  5. Flock Feeders and Openers

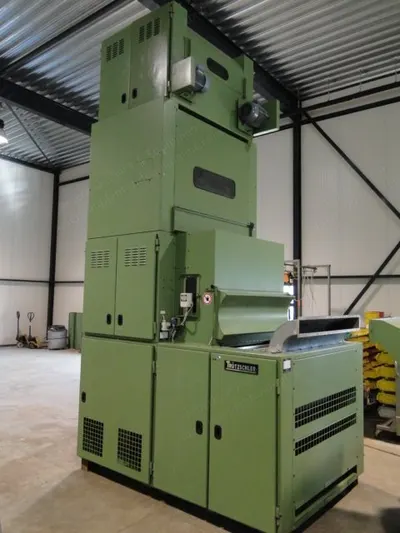

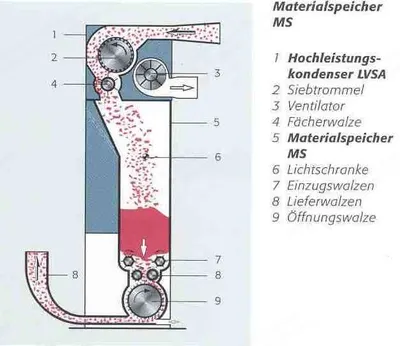

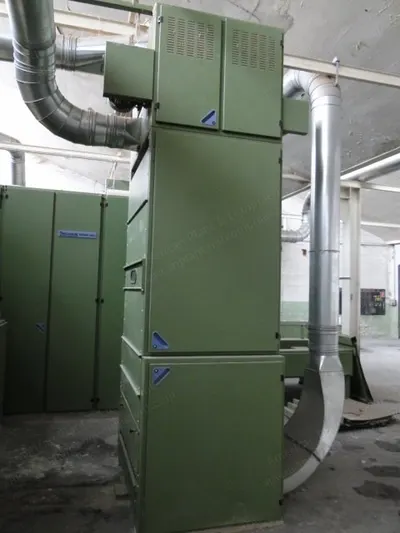

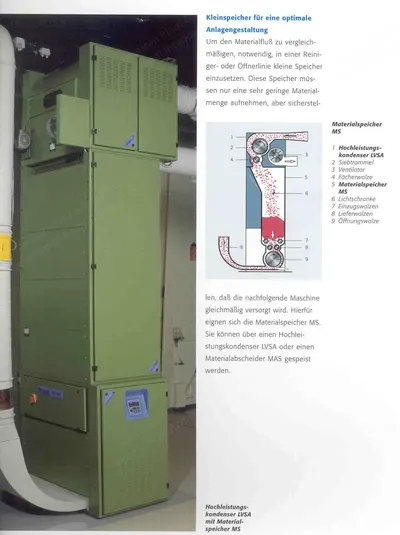

    1. Three Trutzschler flock feeders/openers, year 1998, with condenser type LVS (1982), feeding/reserve box type BS 1200, flock feeder type MS 1200, up to 700 kg/h, fiber length up to 60 mm
    2. Trutzschler flock feeder/opener, year 2003, with condenser type LVSA, feeding/reserve box type BSL 1200 with photo-electronic level control, flock feeder/opener type MSL 1200 including pin beater, electronic feeding control type Contifeed, production capacity up to 700 kg/h, fiber length up to 60 mm

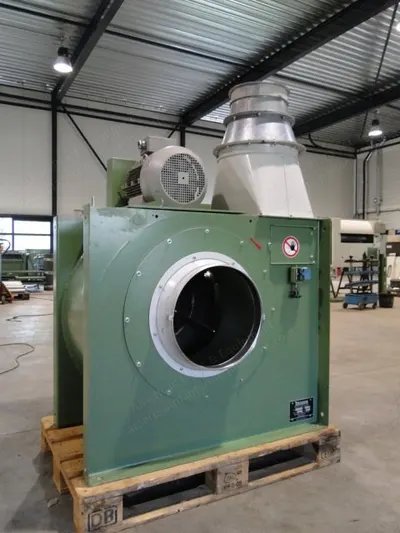

  6. Fans

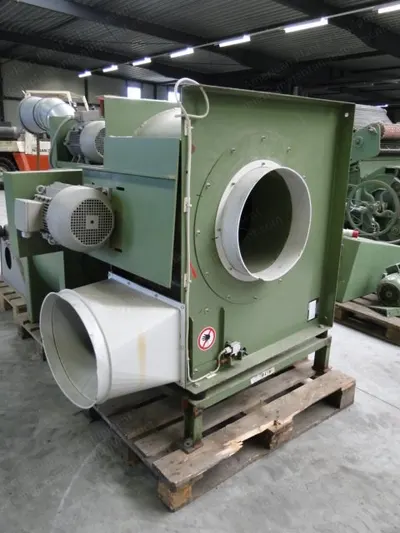

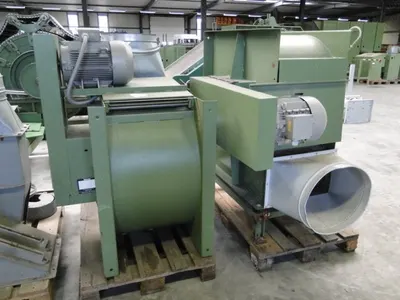

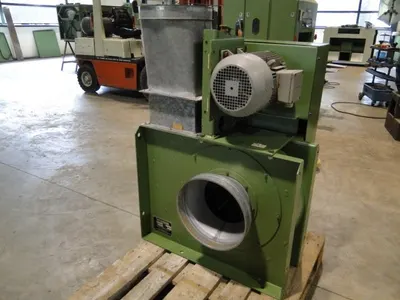

    1. Two Trutzschler TVK 650 dust/air fans for cards, blowroom etc., tube diameter 450/500 mm, fan diameter 650 mm, motor 380 V/7.5 kW/1480 rpm, 8000 m³/h

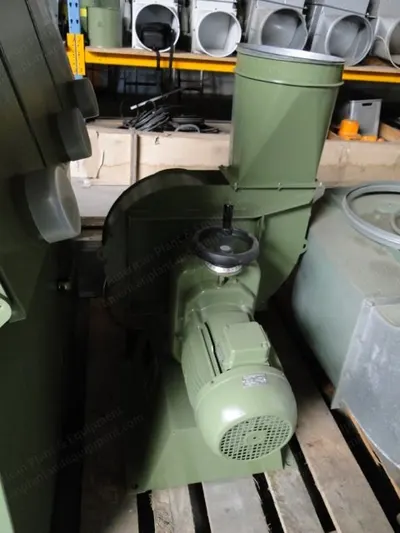

    2. Trutzschler TVR 375 flock fan, year 1989, fan diameter 375 mm, motor 4.0 kW, 3440 rpm, with variator drive 640 to 3200 rpm, tube diameter 300/300 mm, capacity 3600 m³/h

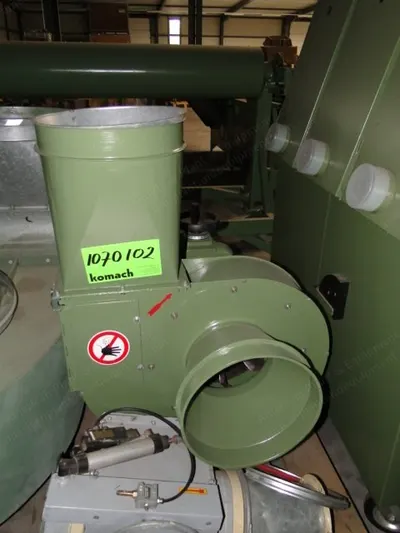

    3. Trutzschler TV 425 flock/material fan, year 1991, fan diameter 425 mm, motor 4.0 kW, 1435 rpm/380 V, speed range 1600 to 2400 rpm, tube diameter 300/300 mm, capacity 5000 m³/h
    4. Trutzschler TV 500 flock fan, year 1991, fan diameter 500 mm, capacity 6000 m³/h, tube diameter 350/350 mm, motor 7.5 kW, 2900 rpm/380 V
  7. Filter Plant
    1. Filter plant for dusted air and waste from cards and blowrooms, capacity 30,000 m³/h, composing: 2 primary filters type SFV, each 15,000 m³/h, cards for waste, 1 secondary filter type SFF2, 2 cyclones for fine dust
  8. Blowroom for Synthetic Fibers
    1. Trutzschler blowroom for synthetic fibres, year 1992, capacity 300 kg/h, with 1 bale opener type CS 1000, feeding conveyor length 10000 mm, electronic controls for filling levels, 1 fine-opener type FO 1000 with two feeding cylinders and opener with full pin beater, 1 fine-opener/flock feeder type RSK 1200 with full pin beater and carding segment, condenser type LVSA and feedbox type BEB 1200, 1 control panel type EAS
  9. Fire Protection Traps
    1. Twelve Trutzschler FSK 500 fire protection traps, year 2005, for mounting in flock transport tubes of blowrooms, electro/pneumatic controls, diameter 300/350/450 mm
