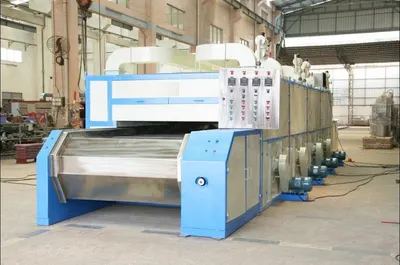

NovaStar, DG355, Loose Fiber Dryer, 4 Chambers, 1440mm Loading Width, 36.8kW (New)

NovaStar, DG355, Loose Fiber Dryer, 4 Chambers, 1440mm Loading Width, 36.8kW

Description

  1. Overview
    1. Hot air circulation continuous production
    2. Four drying chambers
  2. Specifications
    1. Loose fiber loading width: 1440 mm
    2. Loose fiber loading height: 220 mm
    3. Total power: 36.8 kW
    4. Loose stock run speed: 660 to 2970 mm/min
    5. Fan blade diameter: 20 in
    6. Steam pressure: 0.7 MPa
  3. Configuration
    1. On/off temperature controller with automatic control temperature when heating (four temperature controllers)
    2. Running speed is controlled by frequency inverter
    3. Equipped with dehumidifying system
    4. All motors equipped with separate control
  4. Structure Features
    1. Aluminum helical fin radiators
    2. The whole machine is covered with heat insulating fiber
    3. Controlled conveyor speed
    4. The temperature for each drying chamber is individually controlled
    5. Each drying chamber is equipped with wet air suction pipe to improve the suction and drying efficiency
    6. Large volume circulating air guarantees a safe, effective and reliable drying process
  5. Technical Support
    1. One year warranty
