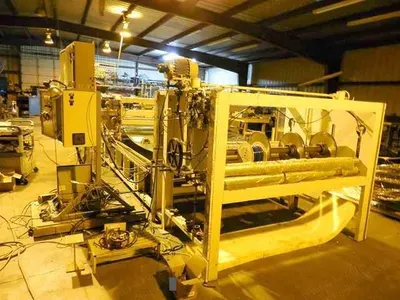

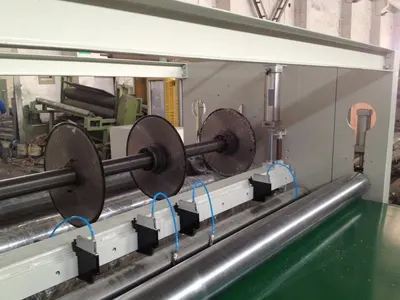

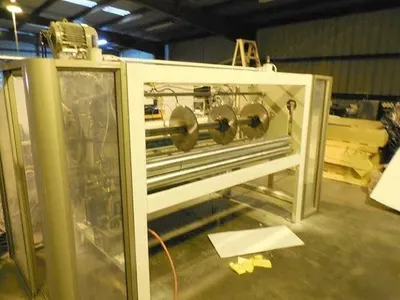

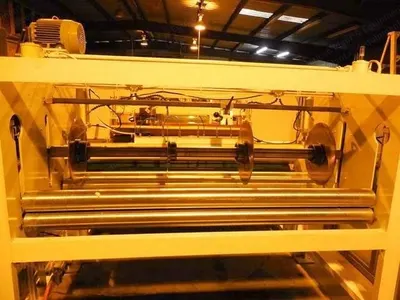

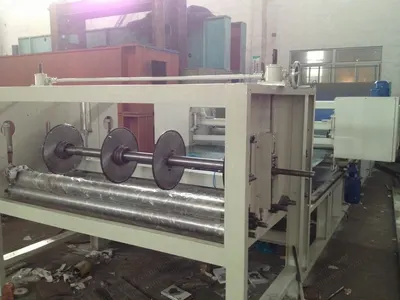

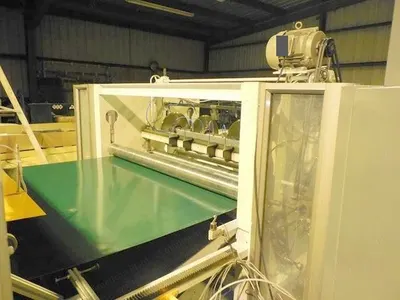

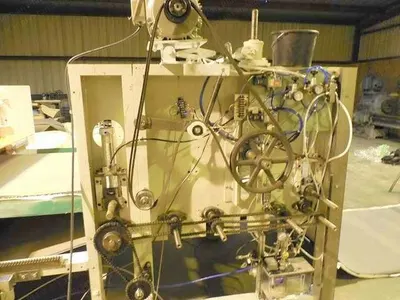

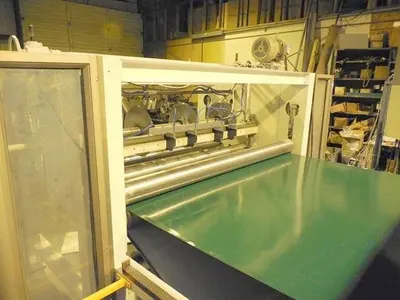

Blade assembly is mounted on dove tail bar, bolted to a support square pipe

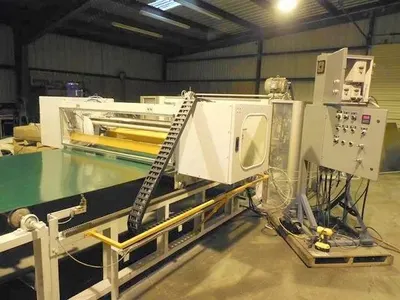

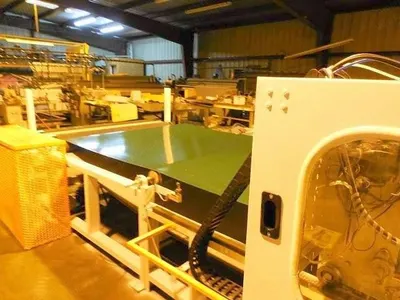

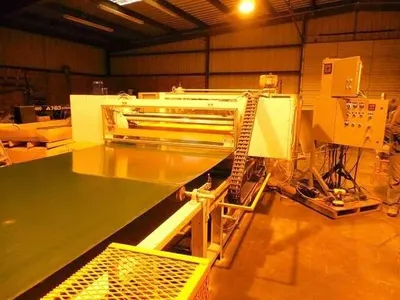

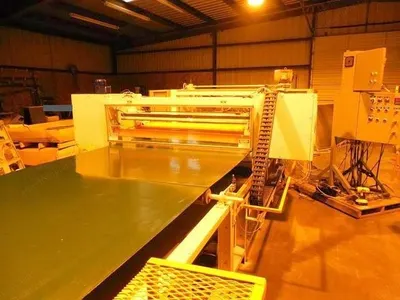

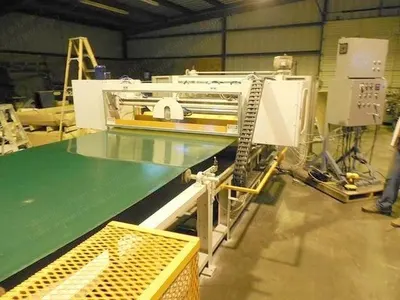

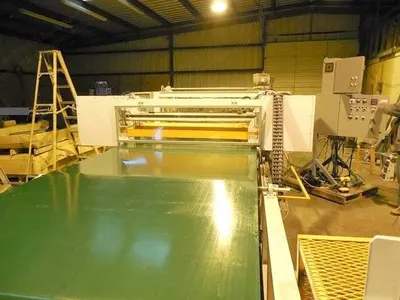

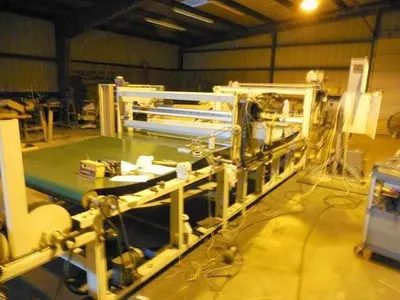

Second Crosscutting Section (Traveling)

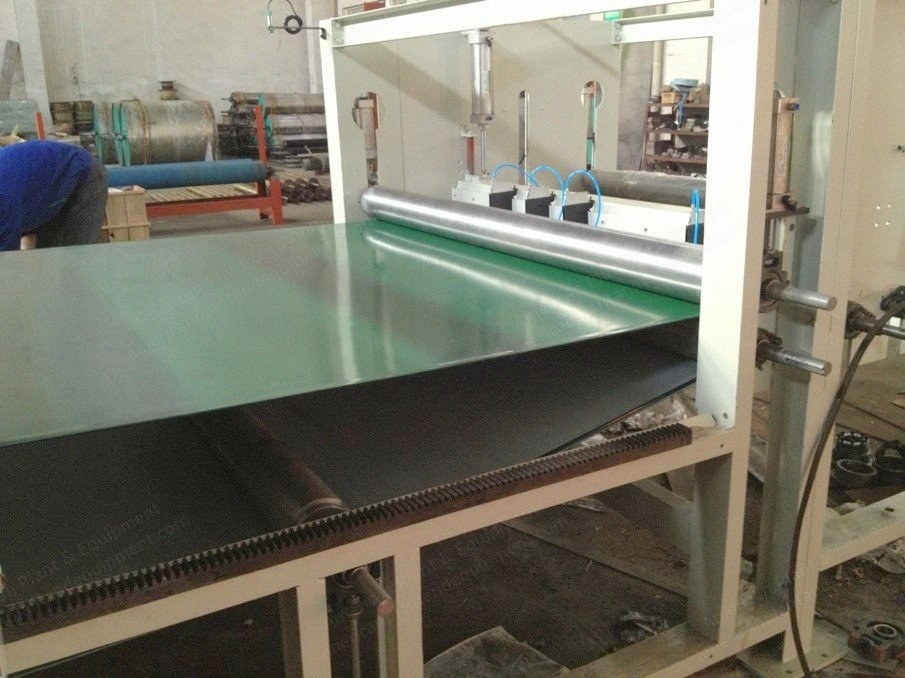

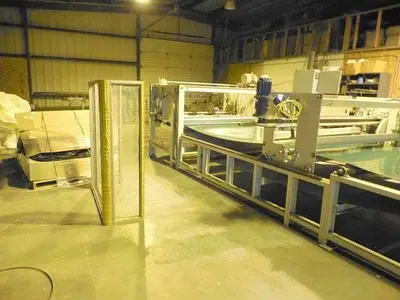

Mounted on linear bearings on a frame 3480mm long

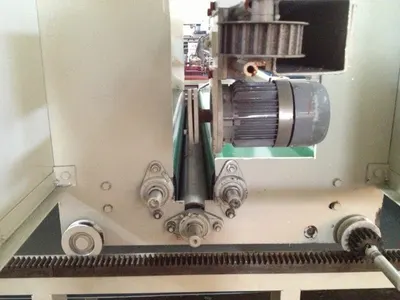

With a rack and pinion gear motor propulsion system
Item D: similar to item A

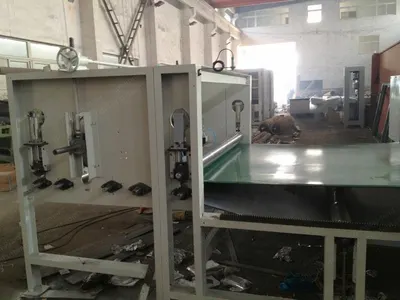

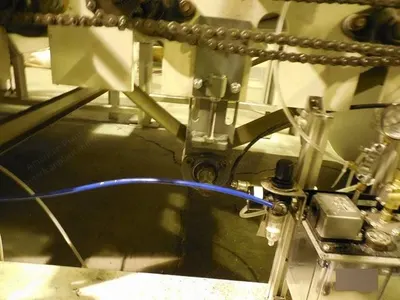

Items E and G: pneumatically activated top clamps and stationary bottom clamps

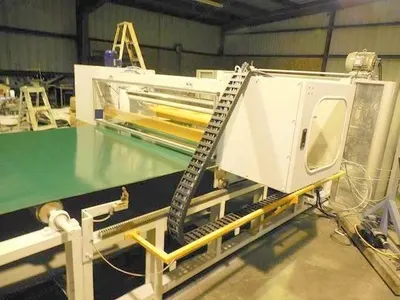

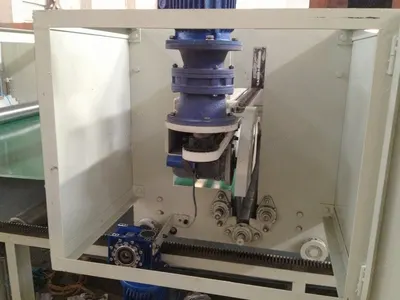

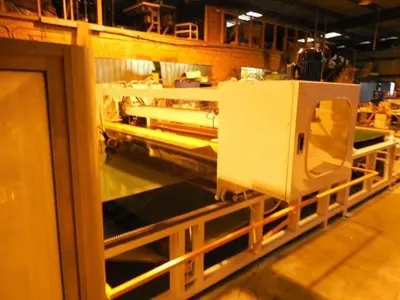

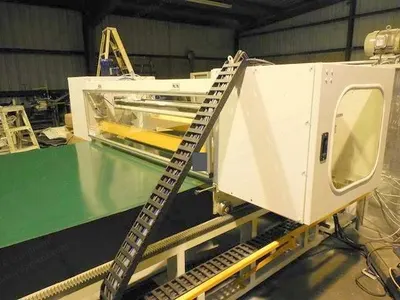

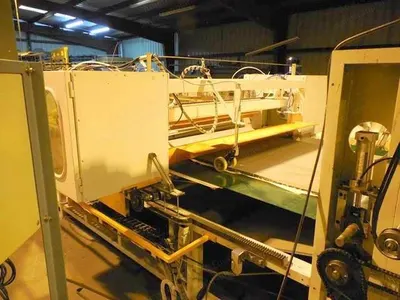

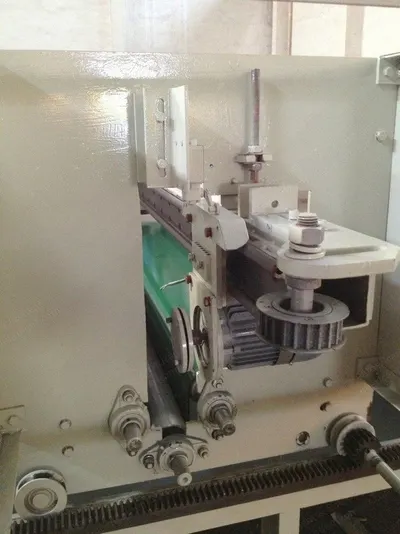

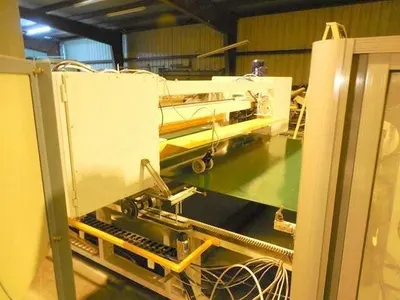

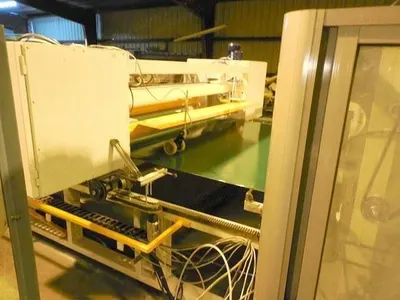

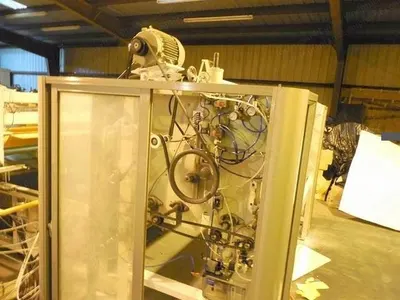

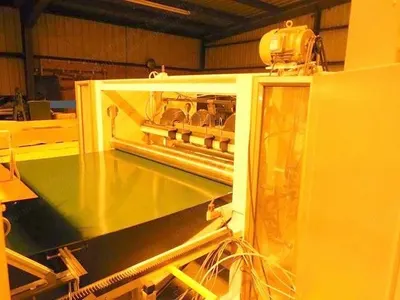

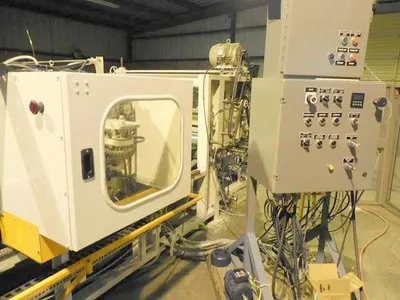

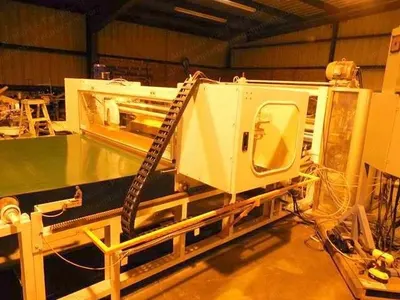

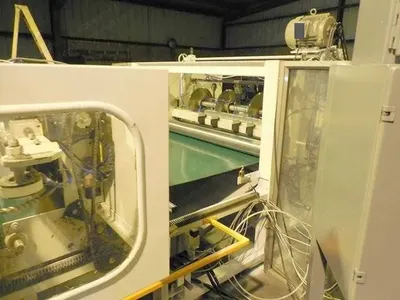

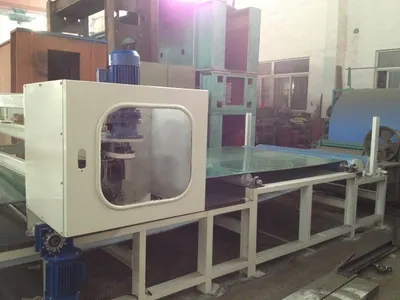

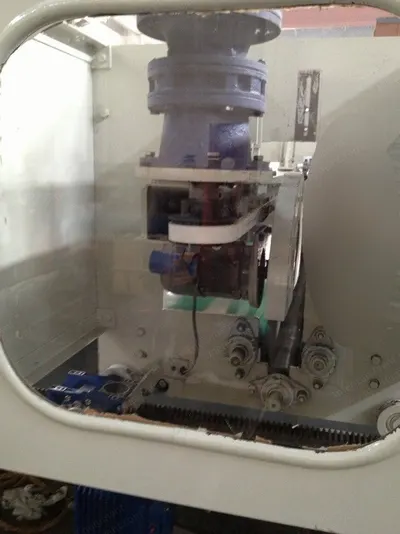

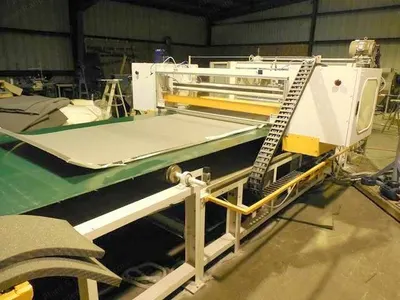

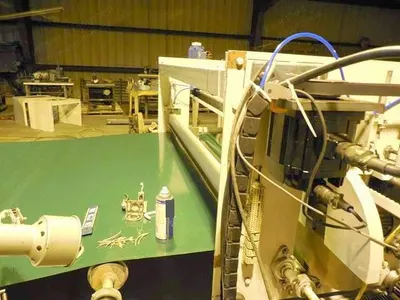

Item F: cross cutting unit traveling on linear bearings, motorized; direction of rotation reverses
This traveling frame is 796mm (itself) long (where the cross cut motorized blade is housed)
Table (section) distance for this section is 3480mm (11.4 feet) (where it travels)
Cross cutter is mist lubricated

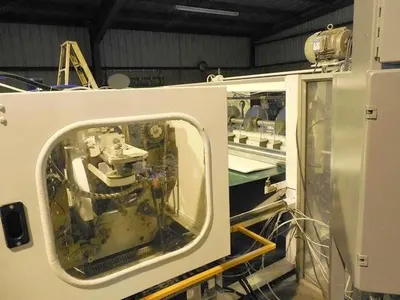

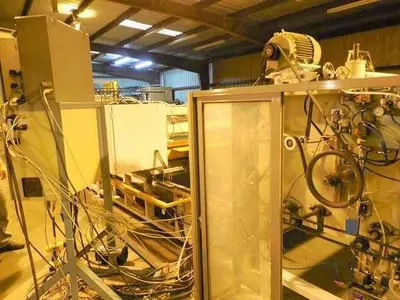

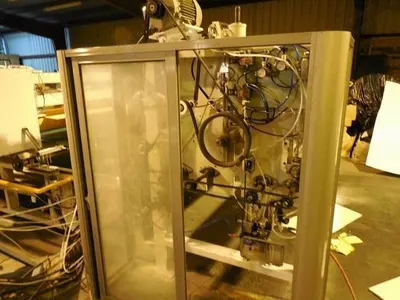

Protective guard to prevent operator tampering and injury with electric safety switch connection

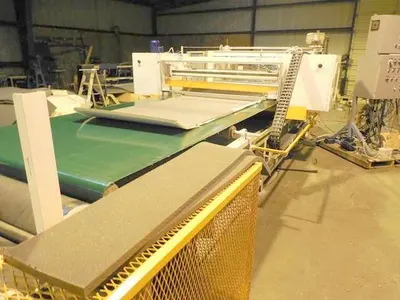

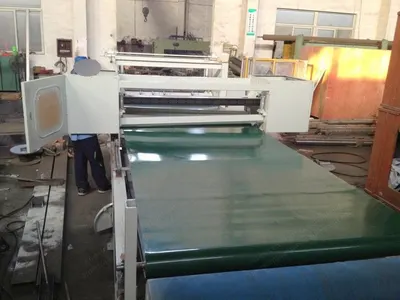

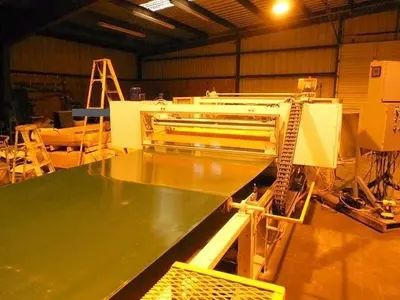

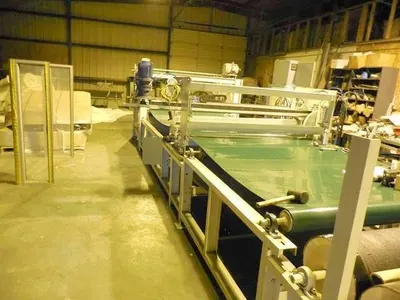

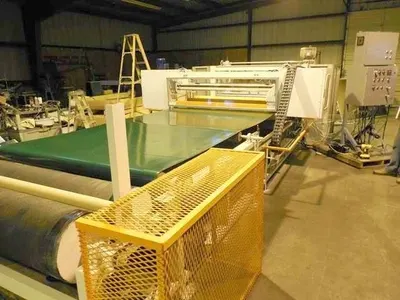

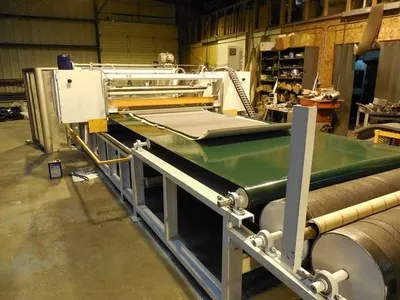

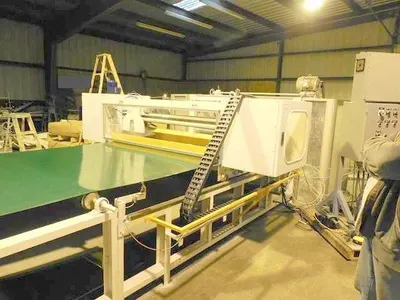

Third Conveyor and Winding Section (Stationary)
Composed of the receiving conveyor and the windup (items H, I, and J)
Item H: includes material entry at 34 inches (height of centerline)

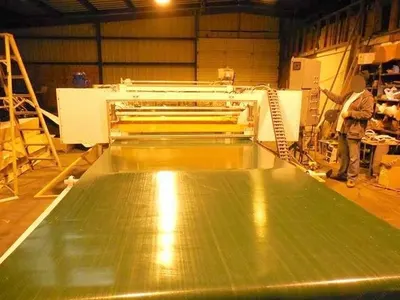

Item I: one conveyor section 4282mm long rising to a height of 28 inches (776mm) to the top of the conveyor at the exit end
This conveyor inclines under the second section allowing for the cross cutting cage to travel to the extreme right of the second section
The conveyor has two center supporting rolls, 150mm diameter (all conveyor rolls are 150mm)
The belt width of the conveyor is 1800mm, same width as surface winder rolls (surface batcher winder)
The belt length of the conveyor is 4282mm

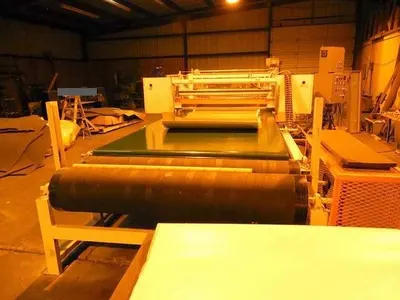

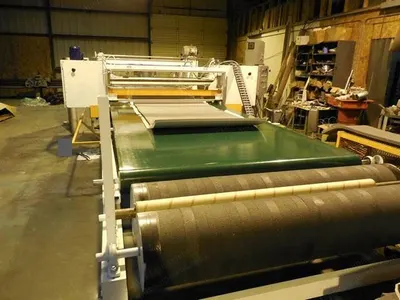

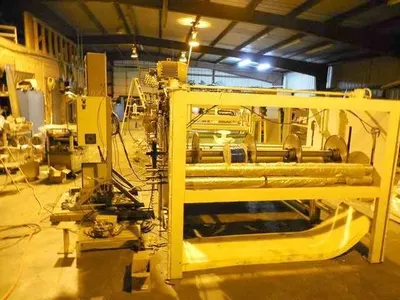

Item J: the last section is a two roll winder (surface batcher winder) able to wind up to 1200mm diameter rolls with removable "U" channel uprights for a center bar to ride on twin driven 300mm diameter steel rolls

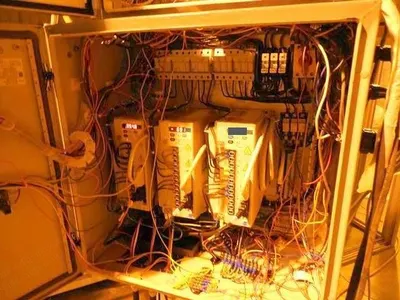

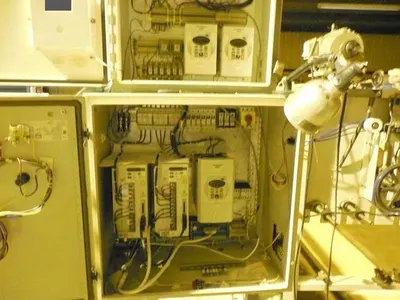

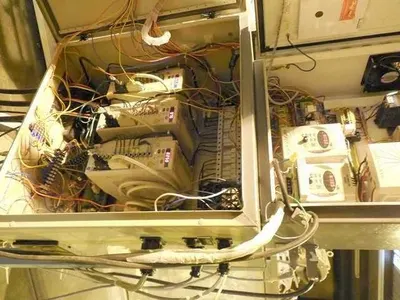

Electrical Specifications
PLC length cut control
Including communication between the two touch screens
Speed controls by inverters

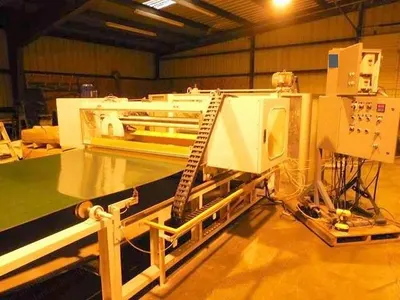

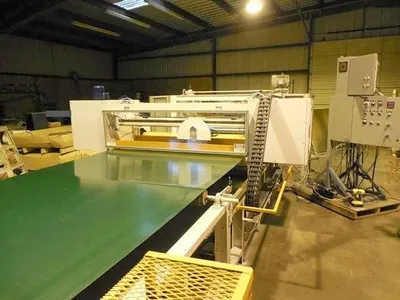

One electrical control cabinet
Voltage: 440/3/60
Second controller to allow for cascading
Final motor kW will be assigned in USA, kWs indicated in diagram are approximate figures only
