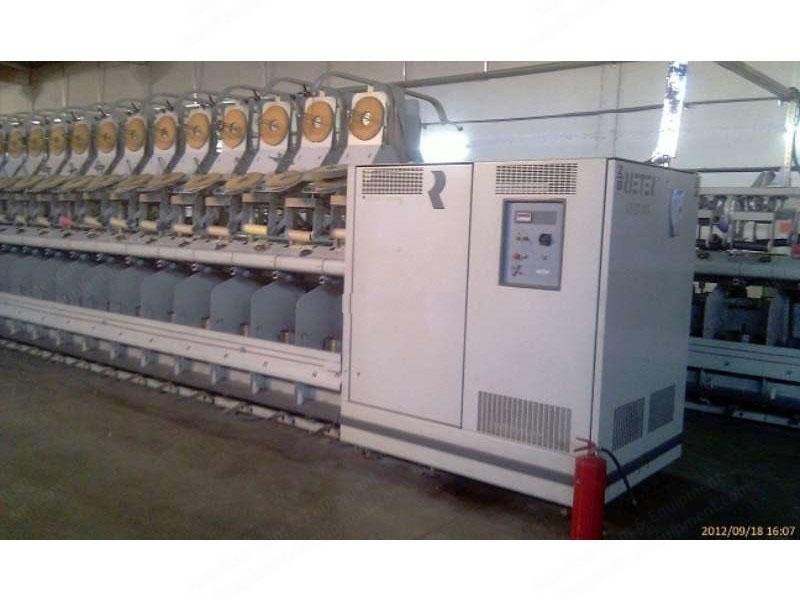

ICBT, CDDT-10-500, Cabling and Twisting Machines, 144 Spindles, 8000 RPM

ICBT, CDDT-10-500, Cabling and Twisting Machines, 144 Spindles, 8000 RPM

Description

  1. Overview
    1. Quantity: 2
    2. Machine is currently running
  2. Spindle Specifications
    1. Maximum spindle speed: 8000 rpm
    2. Maximum textile speed: 7000 rpm
  3. Supply Bobbin
    1. Tube length: 290 mm
    2. Tube inner diameter: 73 mm
    3. Tube outside diameter: 79 mm
    4. Maximum bobbin outside diameter: 270 mm
  4. Take-Up Package (Twisted Bobbin)
    1. Tube length: 290 mm
    2. Tube inner diameter: 73 mm
    3. Tube outside diameter: 79 mm
    4. Maximum bobbin outside diameter: 400 mm
    5. Yarn traverse length: 250 mm
  5. Main Motor
    1. Speed: 1400 rpm
    2. Power: 2 x 45 kW
