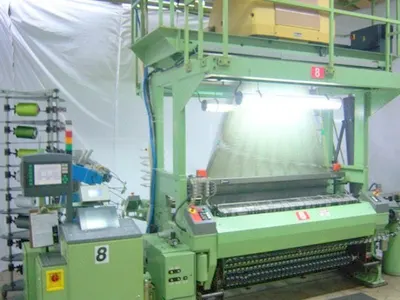

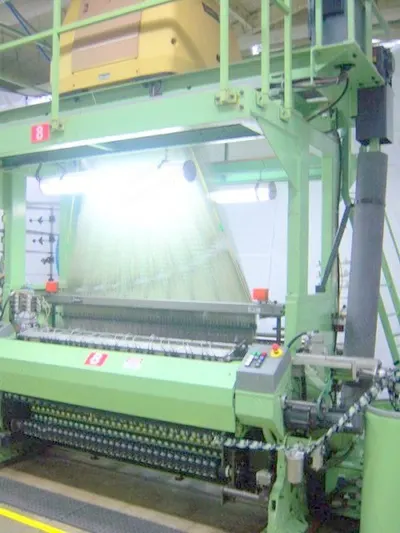

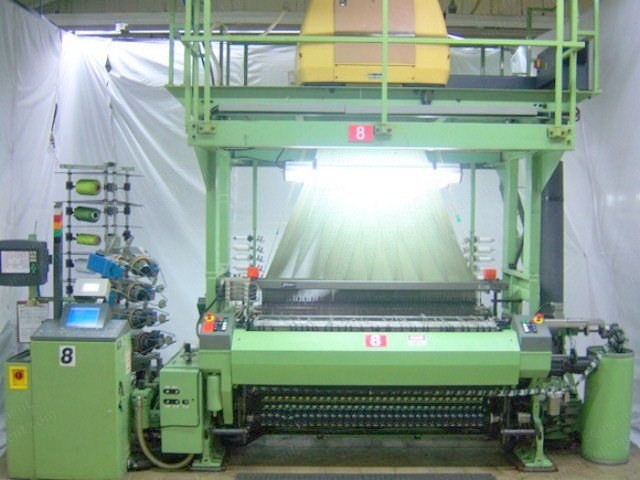

Dornier, LWV 8/J, 2000, 1680mm Weaving Width, 8 Colors, Staubli CX880 Jacquard

Dornier, LWV 8/J, 2000, 1680mm Weaving Width, 8 Colors, Staubli CX880 Jacquard

Description

  1. Overview
    1. 8 colors
    2. Weaving width: 1680 mm
    3. Speed: 950 / 800 rpm
  2. Jacquard
    1. Jacquard Staubli: CX880
    2. Harness: taffeta, 8 x 1152, repeat 200 mm
  3. Warp Specifications
    1. Warp: polyester 70 to 100 den
    2. Warp density: 54.6 to 109, 2 ends per cm
  4. Weft Specifications
    1. Weft material: polyester 50 - 200 dtex
    2. Weft density: 20 - 60 picks per cm
  5. Cutting System
    1. Cutting system: Vaupel SCU2/SEL
    2. Cutting control: MCD label localizer in combination with MCS (modular cutting system)
  6. Quantity
    1. 2 units available
