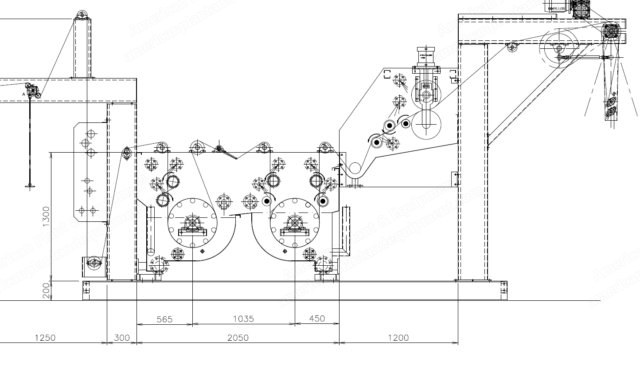

Huanshin, QS-A1020, Open Width Washing Machine, 2000mm Working Width, 2-Cisterns, 70 m/min

Huanshin, QS-A1020, Open Width Washing Machine, 2000mm Working Width, 2-Cisterns, 70 m/min

Description

  1. Overview
    1. Suitable for open width fabric wash.
    2. Model: A1020.
    3. Working width: 2000 mm (80) open width fabric.
    4. Roller width: 2200 mm.
    5. Machine speed: 70 meters per minute.
    6. Machine temperature: 95 degrees centigrade.
  2. Specifications
    1. Machine frame is stainless steel SUS304#.
    2. Power required: machine 23 hp and vacuum suction 25 hp.
    3. Water and steam piping.
    4. Electric control panel.
  3. Included Equipment
    1. Fabric inlet with correction device.
    2. Two washing tanks equipped with 500 mm diameter wheels.
    3. Spraying nozzle.
    4. One soft water spray washing device.
    5. Five ton mangle at the exit with two squeeze rolls.
    6. Automatic cleaning and filtration system.
    7. 25 hp vacuum pump suction device.
    8. Fabric delivery: plaiter.
  4. Condition
    1. Total quantity: 2 sections.
