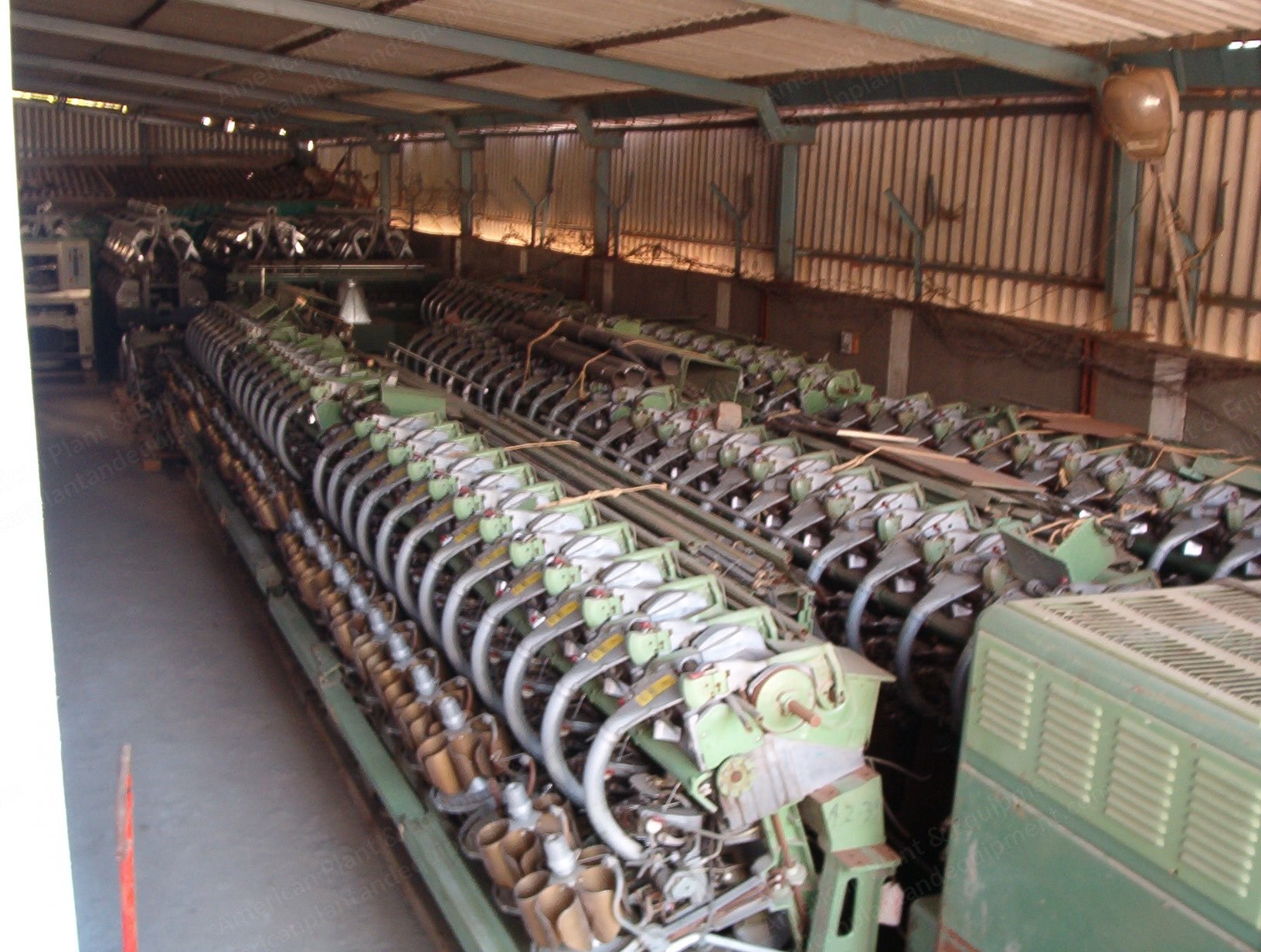

Rieter, RU 04 4604, 1995, Open End Spinning Plant, 13 Machines, 216 Rotors

Rieter, RU 04 4604, 1995, Open End Spinning Plant, 13 Machines, 216 Rotors

Description

  1. Open End Spinning Units
    1. Make: Rieter / Ingolstadt
    2. Model: 4604/14 Spincomat Ru-11/14
    3. Year: 1995
    4. Number of rotors: 216 rotors per machine
    5. Rotor diameter: 40 mm / 48 mm
    6. Rotor speed: 60,000 to 100,000 rpm
    7. Rotor length: 147 mm / 152 mm
    8. Opening roller: OB-20 wire (cotton)
    9. Trash conveyor: double side
    10. Section motor for technological air exhaust and trash extraction
    11. Can size: 18 in x 42 in
    12. Tube size: 54 x 60 x 156 mm
    13. Package size: 280 x 140 mm
    14. Weight of package: up to 3.5 kg
    15. Hour meter reading: 60,000 to 70,000 hours
    16. Condition of rotor, disc, disc bearings, channel plates, combing roller, etc.: good condition, sparingly used
    17. Number of machines: 13
    18. Condition: in running condition
  2. Tfo Twister Details
    1. Make: Volkman
    2. Model: VTS-07
    3. Year: 1995
    4. Number of spindles: 144 spindles
    5. Pot size: 185 mm diameter
    6. Drum diameter: 3 ¾ in diameter
    7. Traverse: 150 mm
    8. Number of spindles per section: 18
    9. Number of bearings: 4 per section
    10. Drive: tangential
    11. Power consumption: 36 kW, motor rpm 1770
    12. Special features: individual break system, spusher availability
    13. Condition: in running condition
    14. Total quantity: 2
  3. Auto Coner (Savio)
    1. Machine name: Savio RAS
    2. Make: Italy
    3. Year: 1990
    4. Number of spindles: 60 spindles
    5. Number of machines: cop feeding machine - 1, rewinding - 1
    6. Cone holder: 5° 57'
    7. Cop feeding machine details: cone drum 150 traverse, 3 ¾ in diameter (90 mm); tension device includes pre tension device, main tension device, mechanic yarn clearer; cop changing mechanism includes round type magazine type, 5 cops per magazine
    8. Re-winding machine details: tension device includes pre tensioner, electronic yarn clearer (Uster W3/C3); panel board includes Uster control unit, main motor, suction motor; doff conveyor available; panel board (power) includes main motor 12.5 kW, ABB make, suction motor 15 hp, 3450 rpm, GEC make; EYC available; CYRO available
    9. Condition: in running condition
  4. Warping and Sizing
    1. Year: 1995
    2. Headstock width, diameter: 115 in
    3. Cylinder width, diameter: 30 in
    4. Number of immersion boxes: 2 sets of cylinders; cylinder with 5 ft, cylinder diameter 2 ft; bottom cylinder (stainless steel 316); top cylinder rubber coated
    5. Sizing creel: 60 ½ in width in 3 machines, 62 ½ in width in 1 machine
    6. Beam size: flange size 31.5, 37, 36.5; beam width 81.5, 82 in
    7. Rod width: 113 ½, 128, 139 ½, 114 ½ in
    8. Warping beam creel: 4 sets
    9. Warping machine bed (motor): 4 sets
    10. Motor drive: DC / clutch drive
    11. Number of cylinders: 9
    12. Total machines: 4 machines
  5. Assembly Winder
    1. Make: A. Merques
    2. Year: 1995
    3. Number of drums: 48 (24 x 2)
    4. Traverse: 185 mm length, 200 mm width
    5. Stop motion: electronic type
    6. Cheese adaptor: 54 mm
    7. Cheese length: 180 mm
    8. Drive: clutch type drive
    9. Motor: 1 no. stop motion, 2 no. for drum shaft (5 hp)
    10. Quantity: 1
  6. Ancillaries
    1. Beams: warping / sizing and weaving beams, total 500 nos. approx.
    2. Cans: plastic moulded cans, 48 in height, 18 in od top, 16 in od bottom, total 4000 nos. approx.
    3. Trolleys, step ladders, pallet jacks, cloth trolleys, hand carts, hoists, pallet carrying jack, warp trolley, and draw plastic cans etc. available
