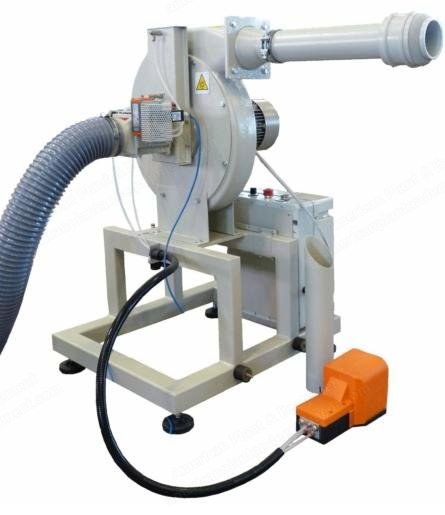

NovaStar, Cushion and Pillow Filling Machine, 200g/s Filling Capacity, 510x610x1100mm

NovaStar, Cushion and Pillow Filling Machine, 200g/s Filling Capacity, 510x610x1100mm

Description

  1. Overview
    1. Machine provided with a braking system that permits the filling of wadding pillows and quilts with all materials (polyester, feather, expanded polyurethane, cotton, wool, etc.).
    2. The particular widened shape of the turbine makes it possible to obtain remarkable performances in the filling up of the product.
    3. Using the special tube it is possible to suck up the material directly from the various containers.
    4. The braking is very rapid (about 1/10 of second) and does not require maintenance since it is obtained through a pneumatic device.
    5. The control device is a pneumatic foot-lever which leaves the operator’s hands free.
    6. There is a safety motor protection switch.
    7. It can be supplied both in a one-phase and in a three-phase version.
    8. The machine is constructed in conformity with the EEC directives 2006/42/CE, 2004/108/CE and 2006/95/CE and successive modifications and marked CE.
    9. On request with speed variation options.
  2. Specifications
    1. Width: 510 mm
    2. Length: 610 mm
    3. Height: 1100 mm
    4. Weight: 95 kg
    5. Engine: 2.2 kW
    6. Compressed air: 3 bar
    7. The fan speed is adjustable from 2000 to 4200 rpm, in order to optimize the speed of filling to the shape and the size of the pillow.
    8. At maximum speed, the amount of material filled is about 200 grams per second.
  3. Condition and Features
    1. On the entry part of the machine for the load of the material, there are 2 dampers. This prevents the overloading of the turbine and the blockage of material, because when the operator releases the pedal, first it blocks the flow of material and then the air flows.
    2. The particular shape of the outlet pipe allows to fill the pillows that have air-tight lining.
    3. The turbine is made of a cast aluminum.
    4. The command to the machine is given by a pedal, so the operator has both hands free.
    5. The application of the grippers on the outlet pipe of the filler allows a single operator to work more than one fillers.
    6. Furthermore, it is possible to change the time that the grippers stay closed. This allows to set the amount of material to put inside the pillow, with good precision. The time is adjustable to fill different kinds of pillows with different amounts of material.
