NovaStar, RS138, Textile Waste Recycling Line, 5 Cylinders, 240-250 kg/hr, 83.5 kW (New)

NovaStar, RS138, Textile Waste Recycling Line, 5 Cylinders, 240-250 kg/hr, 83.5 kW

Description

  1. Overview
    1. New technology with lower power and higher production capacity.
    2. Long fiber function with a cleaning rate at more than 95%.
    3. Sturdy build throughout, 14mm steel frame with magnet.
    4. Simplicity of operation; sturdy and durable.
    5. CE certificate ISO9001, UL certificate.
    6. Power is 83.5kW, with a capacity of 240kgs/hour.
  2. Fabric Cutting Machine
    1. Capacity: 1000 to 1500kgs/hour.
    2. Blade roller diameter: 320mm.
    3. Speed of the roller: 230rpm.
    4. Power: blade roller Y132S-8, 5.5kW; feeding and discharging belt 0L-4 1.5kW.
    5. Cutting size: 5 to 500mm (pieces of rags).
    6. Overall: 2500 x 960 x 1500mm L x W x H.
    7. Usage: for cutting off the fabric or thread in as little pieces as possible to enable it to be recycled.

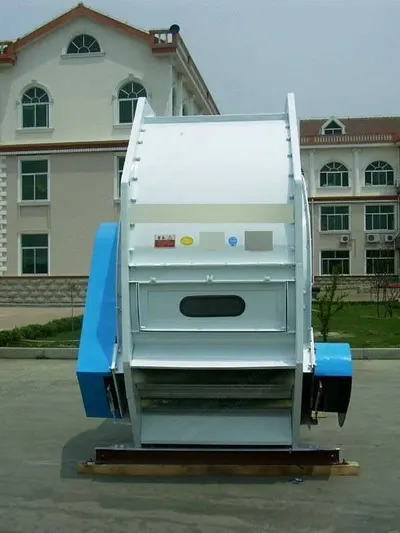

  3. Opening Machine
    1. Capacity: 240kgs to 250kgs/hour.
    2. Cylinder: 580mm aluminum spiked bar with pins, first cylinder with 13200 pins.
    3. Power: cylinder 22kW, fans 3kW.
    4. Cylinder speed: 900 to 1320rpm.
    5. Weight: 1200kgs.
    6. Overall: 3500 x 1700 x 1250mm.
    7. Usage: for loosening and tearing the fabric to enable recycling easily and keep the fiber length.

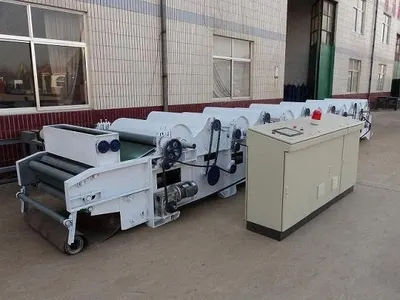

  4. Recycling Machine
    1. Capacity: 240kgs/hour.
    2. Number of cylinders: 5 cylinders.
    3. Diameter of the cylinder: 400mm.
    4. Cylinder speed: 1900 to 2200rpm.

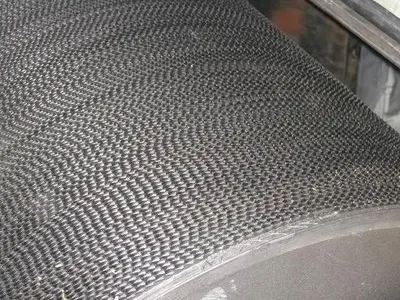

    5. Taker in card clothing: first 4.5 tpi (tooth per inch), second 6 tpi, third 7 tpi, forth-fifth 7.5 tpi.
    6. Weight: 4500kgs.
    7. Overall: 5400 x 1720 x 1350mm.
    8. Usage: for recycling the raw material as cotton fiber.

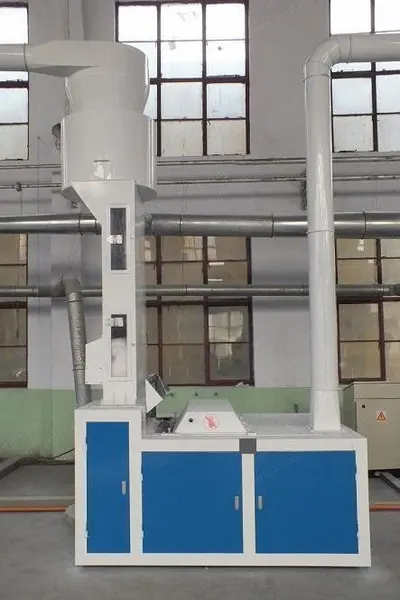

  5. Chute Feeding System
    1. Automatic feeding of the material by blowing fans, with a dust removing drum on top of the machine.
    2. Height: 2950mm.
    3. Weight: 180kgs.
    4. Steel side cover with capacitance feeding system.
    5. Usage: for transporting the opened material to the recycling machine and removing the dust.

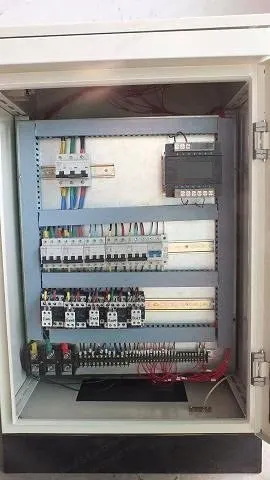

  6. Siemens Plc Control Panel
    1. Usage: to keep the line running.

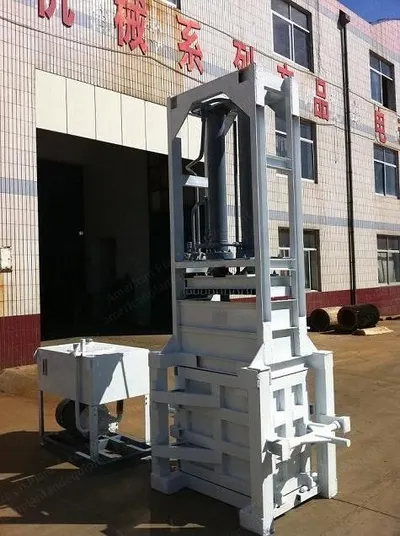

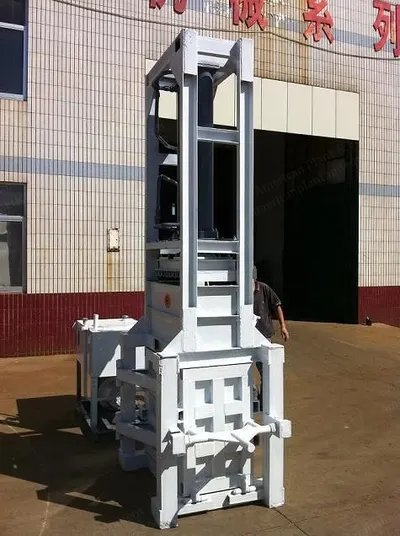

  7. Hydraulic Baling Machine
    1. Compression time in seconds: 25s.
    2. Feeding box opening size: 1150 x 850mm (L x W).
    3. Baling chamber (L x W x H): 1130 x 830 x 1470-520mm.
    4. Compressor cylinder: 125/70-1100.
    5. Voltage: 480V ±10% / 60Hz.
    6. Power: Y160M-4, 4kW.
    7. Bale size: 400 x 600 x 800mm (L x W x H).
    8. Bale weight: 85kg.
    9. Net weight of the machine: 2200kg.
    10. Overall: L2100 x W1350 x H3400mm.

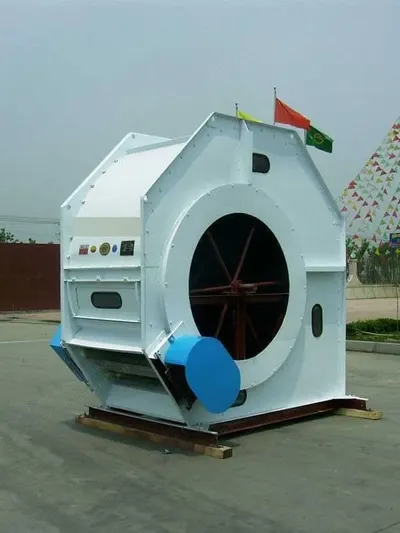

  8. Fiber Collecting Machine
    1. Dust basket diameter: 1400mm.
    2. Dust basket width: 1000mm.
    3. Capacity: 2000kg/hour.
    4. Motor: 2.2kW.
    5. Weight: 1000kg.
