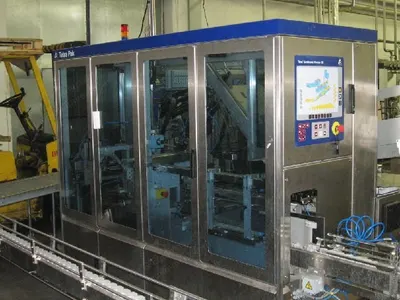

Description Overview Aseptic filling machine for filling liquid food: wine, juices, milk and dairy products, ice tea, and so on. Fills liquids in a sterile environment, then sterilized packaging. Aseptic packages are formed, sealed and cut off automatically within the machine. Designed to fill one size package: 1 L base. Technical Parameters Production capacity: 6000 1 liter packages type base per hour. Installed power: 40 kW. Power consumption: 18 kW. Compressed air consumption: pressure 6 to 9 kg/cm², intake 500 per minute. Process water for washing: inlet temperature maximum 20 °C, water pressure 3-4.5 kg/cm², consumption 13 L per minute. Vapor pressure: 2.7 kg/cm², consumption 3 kg per hour. Consumption L/hour: 1.5/2.0. Hot water for cleaning: consumption per cycle 500 liters, water temperature 50/70 °C. Noise level: ISO 3746, decibels (A): 92. Conveyor Type Multiflex Designed to move brick packages and to connect each machine filling line. Frame and side rails in stainless steel. PTO shaft with teflon. Guides in round reinforcing steel, fixed with screws. Group operates through drive gear motor. Group of tools to counterbalance feature fence for safety and prevention of accidents. Guides with a radius of rotation of 30°, 45°, 90° and 180° with an average radius of 150 mm, mounted on ball bearings. Supports are adjustable in height. Mounting bolts are made of stainless steel. Block Group Packaging Of Finished Products Cbp70 Cardboard Packer Packaging format: 6 x 2. Production: 7000 bags an hour. Power consumption: 7 kW per hour. Air consumption: 22 square meters an hour. Recommended Maintenance Kit Additional set of equipment: perforating unit for applying traffic on TBA 8, equipped with a special program. Applicator opening package.
