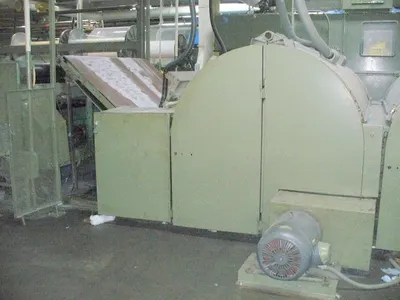

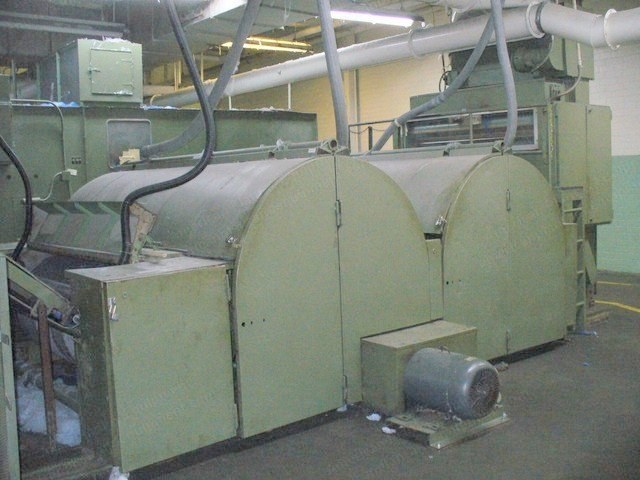

Krupp Spinnbau, Nonwoven Production Line for Blankets, 2030mm Working Width, 25 HP Main Motor

Krupp Spinnbau, Nonwoven Production Line for Blankets, 2030mm Working Width, 25 HP Main Motor

Description

  1. Overview

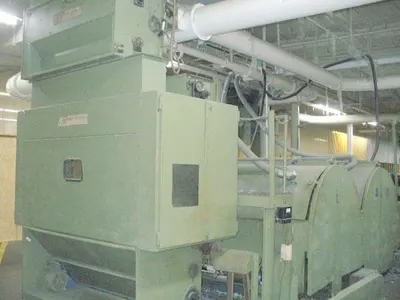

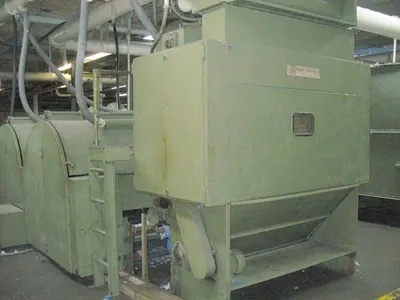

    1. Consisting of a fiber control feeding box with condenser

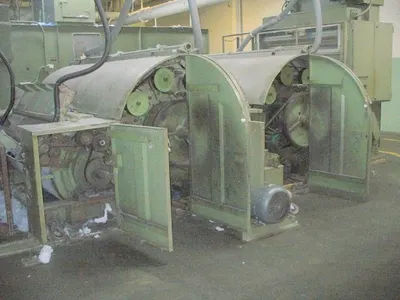

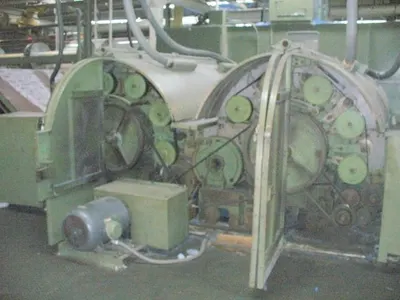

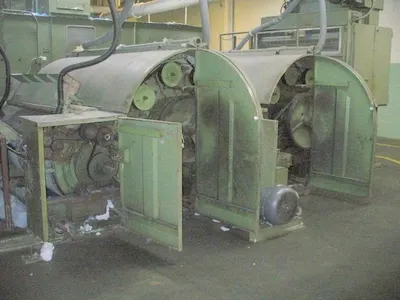

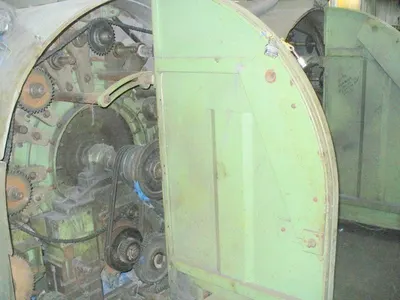

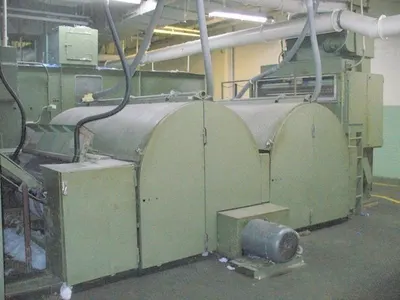

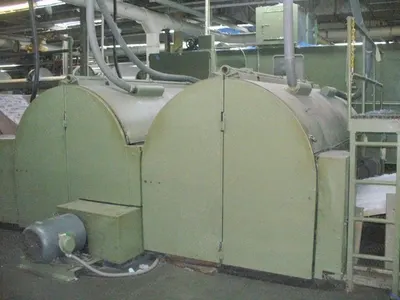

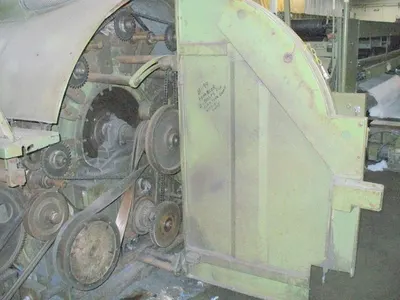

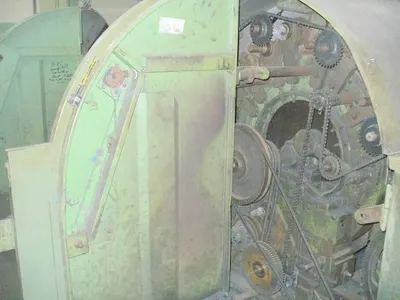

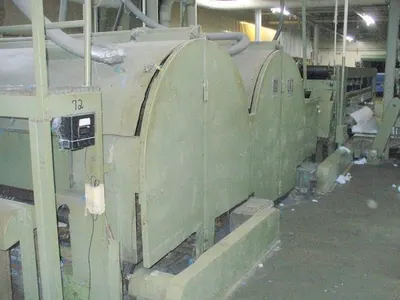

    2. Two Krupp Spinnbau garnet cards
    3. One crosslapper
    4. One set of press rollers

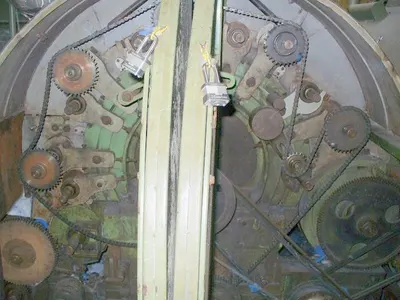

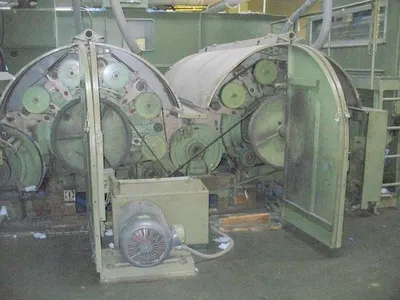

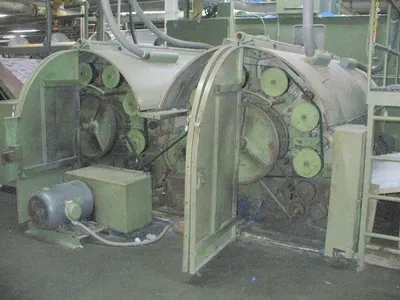

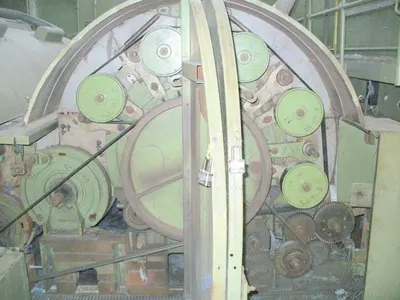

  2. First Garnet Card
    1. Working width: 6 ft (1830 mm)
    2. One feed roll
    3. One lickerin: 12 in (310 mm) diameter
    4. One main cylinder: 40 in (1020 mm) diameter
    5. One doffer: 20 in (510 mm) diameter
    6. Five workers: 8 in (200 mm) diameter
    7. Five strippers: 5 in (120 mm) diameter
  3. Second Garnet Card
    1. Working width: 80 in (2030 mm)
    2. One feed roll
    3. One lickerin: 16 in (410 mm) diameter
    4. One main cylinder: 40 in (1020 mm) diameter
    5. One doffer: 32 in (810 mm) diameter
    6. Five workers: 8 in (200 mm) diameter
    7. Five strippers: 5 in (120 mm) diameter
  4. Main Motor
    1. 25 hp
    2. 230/460 volts
    3. 60 hz
    4. 3 ph
    5. 1760 rpm

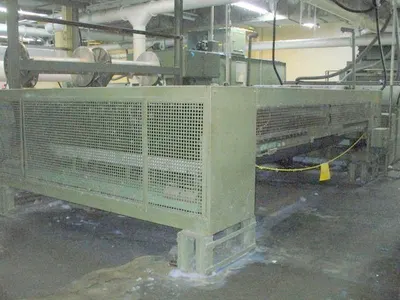

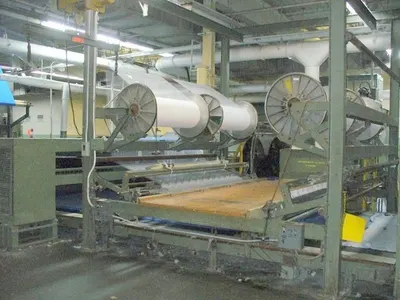

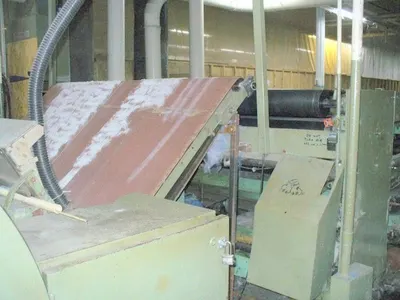

  5. Crosslapper
    1. Top apron a: width 115.5 in (2920 mm), length 106.5 in (2700 mm)
    2. Top apron b: width 115 in (2920 mm), length 92.5 in (2350 mm)
    3. One bottom apron: width 138 in (3500 mm), length 118 in (3000 mm)
    4. One floor apron: width 118 in (3000 mm), length 30 ft

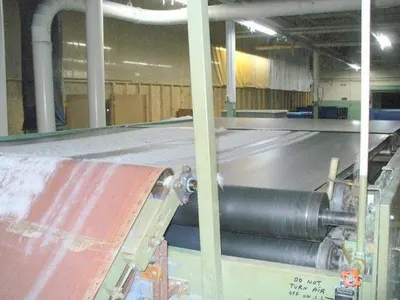

  6. Press Rollers
    1. Width: 128 in (3250 mm)
    2. No edge knives available
