SSM, TW2-W, Digicone Preciflex Precision Package Winder, 1500 m/min, 100-200mm Traverse

SSM, TW2-W, Digicone Preciflex Precision Package Winder, 1500 m/min, 100-200mm Traverse

Description

  1. Overview
    1. Schweiter ssm tw2-w digicone preciflex precision package winder
    2. Combines advantages of random wound and precision wound packages using digicone winding technology
    3. Ratio between double strokes and number of revolutions is kept constant for a certain diameter range
    4. Crossing angle varies only in a range of ± 1°
    5. Avoids areas of patterns with extreme increase of density; density does not change over package diameter
    6. Package stays in a stable structure without ribbons, eliminating slip off risk of complete layers during unwinding of dyed packages
    7. High flexibility to produce made-to-measure cross wound packages
    8. Ergonomic design and innovative technology minimize maintenance and service expenses
    9. Tw2-w and preciflex winding technology system allow winding of various types of yarns
  2. Technical Data
    1. Types of winding: digicone or precision
    2. Mechanical speed: up to 1500 meters per minute (process speed depends on process parameters)
    3. Package shape: freely programmable
    4. Traverse length: 100 mm to 200 mm; infinitely variable
    5. Take-up package diameter: up to 250 mm
    6. Package weight: 5 kg
    7. Supple package diameter: up to 300 mm
    8. Yarns: staple yarns, textured filament yarns
    9. Count: ne 3 to 80 (nm 5 to 135 / 80 to 2000 dtex); other yarn counts on request
    10. Take-up tubes: cylindrical and conical up to 5 degree 57' conicity; max length 230 mm, min. basic diameter 38 mm (smaller diameter on request)

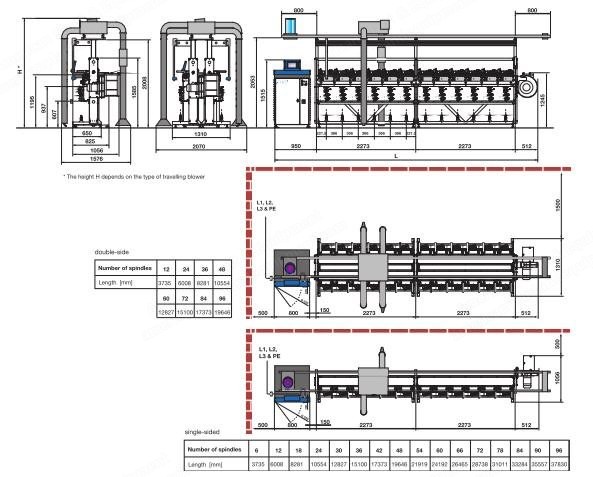

    11. Layout: single or double sided machine
    12. Min. number of spindles per section: 6 (single sided) and 2 x 6 (double sided)
    13. Max number of spindles: 96 (single sided) and 2 x 48 (double sided)
    14. Gauge: 366 mm
    15. Drive: individual
    16. Installed power: ~200 w per spindle
    17. Power consumption: ~100 w per spindle
    18. Blower: 1100 w
  3. Basic Machine Includes
    1. Universal peg for supply packages
    2. Preciflex yarn layering system
    3. Mechanical slub catcher
    4. Individual speed control
    5. Tube holders for a specified type of tube
    6. Adjustable mechanical back pressure system
    7. Machine terminal mt-2 with touchscreen display, central input of winding parameters per machine or per spindle, and storing of recipes
    8. Length measuring system
    9. Mechanical disc tension device or digitens tension control system
    10. Electronic yarn detector
    11. Dust protection blower
  4. Optional
    1. Roll overfeed system, positively driven
    2. Dry waxing device (not possible with digitens)
    3. Traveling blower with suction system
    4. Oiling device
