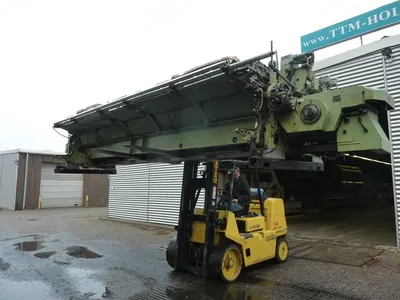

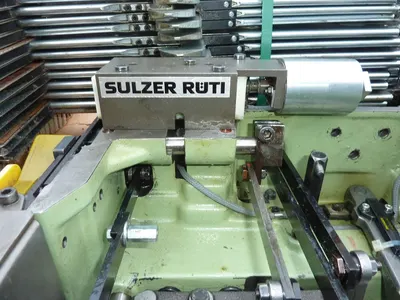

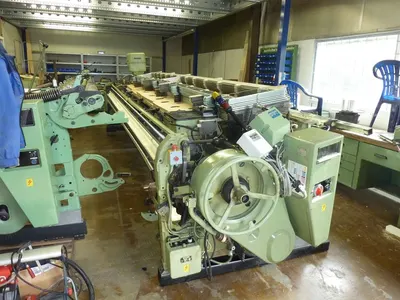

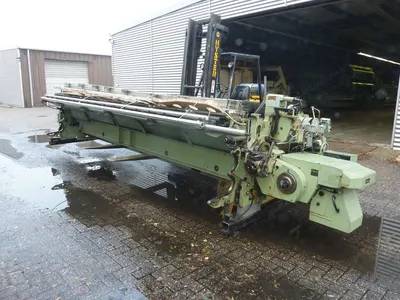

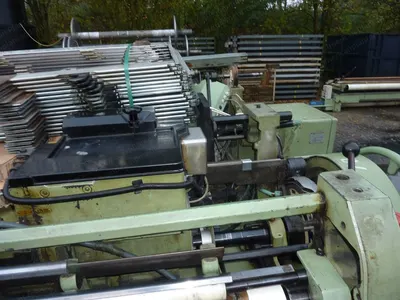

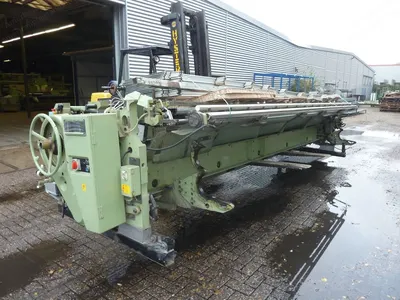

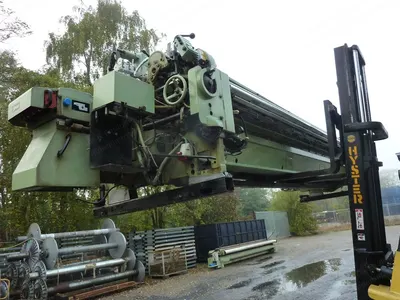

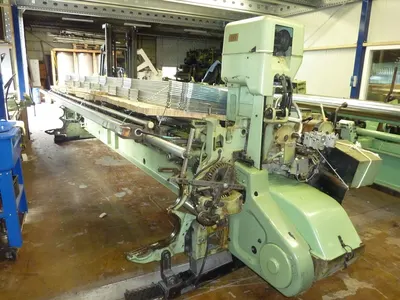

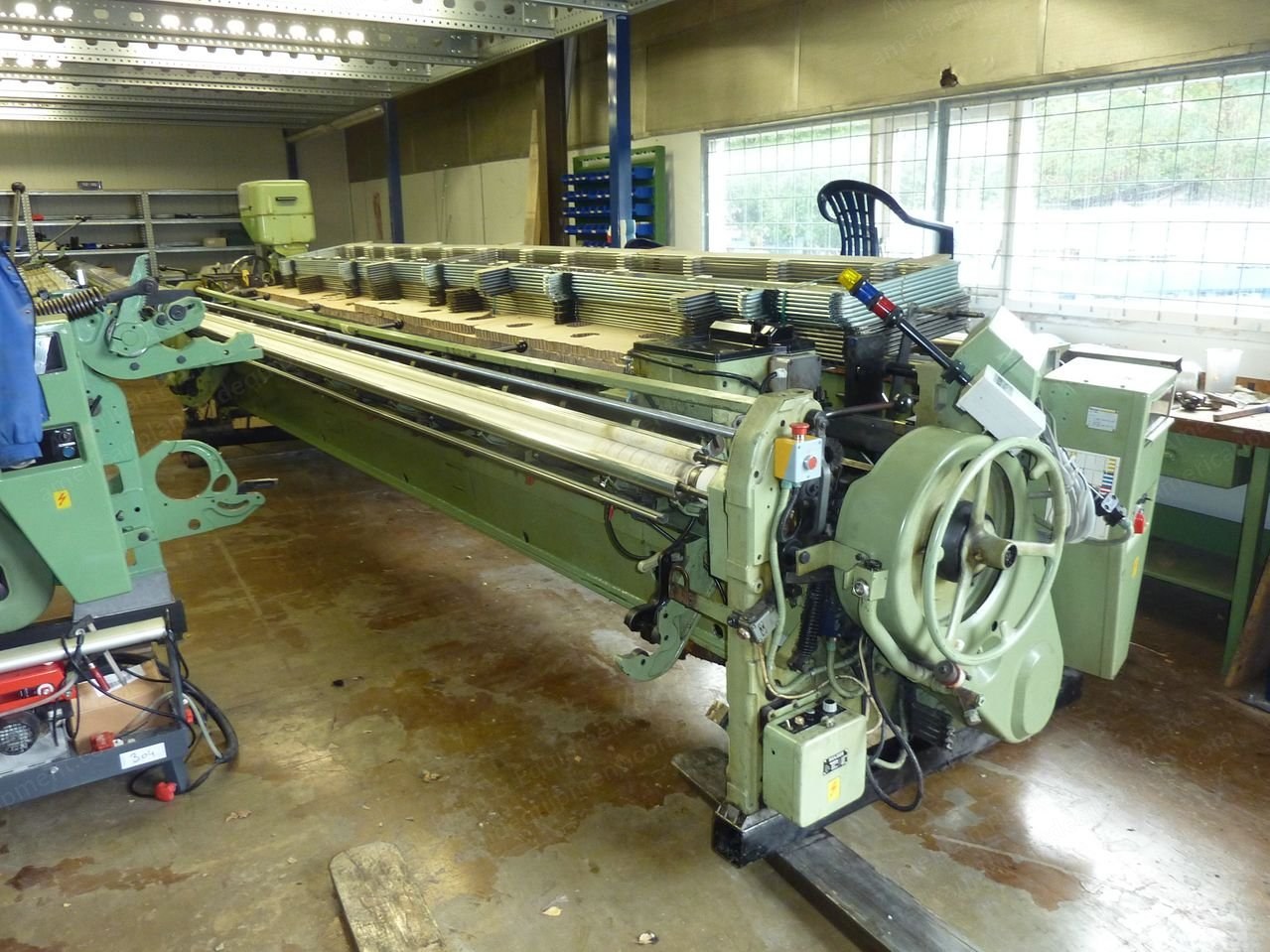

Sulzer, P7100, 4650mm, 4 Colors, Cam Motion and Dobby Looms

Sulzer, P7100, 4650mm, 4 Colors, Cam Motion and Dobby Looms

Description

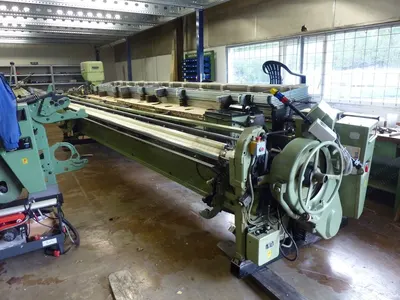

  1. Machine A: Sulzer PU 183” (4650 mm) Loom – 4 Colours (Cam Motion)

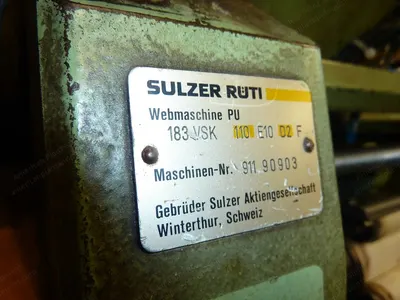

    1. Model: PU 183 VSK 110 E10 D2 F
    2. Cam motion with levers installed: 6+2 pieces
    3. On top mini colour dobby (VSK) for selecting 2 colours
    4. Mechanical warp let off for single beam
    5. Warp tensioning system with floating breast roller system
    6. 8 Grob heald frames
    7. 2 full warp beams, diameter 940 mm
    8. No weft feeders
    9. Side tuckers, no center tucker
    10. Double Loepfe electronic weft insert brakes (2 x 2 pieces)
    11. Sulzer electronic projectile brake
    12. Edge melting system
    13. Weaver bridge and big roll batcher with Neuenhauser drive system
  2. Machine B: Sulzer PU 183” (4650 mm) Projectile Loom – Dobby
    1. Model: PU 183 VSD 110 KR D2 F
    2. With Stäubli mechanical dobby, type KR2 (2400)
    3. 8+2 levers installed
    4. Mechanical warp let off for single beam
    5. Warp tensioning system with floating breast roller system
    6. 8 Grob heald frames
    7. 2 full warp beams, diameter 940 mm
    8. No weft feeders, side tuckers
    9. No center tucker
    10. Double Loepfe electronic weft insert brakes (2 x 2 pieces)
    11. Sulzer electronic projectile brake
    12. Edge melting system
    13. Weaver bridge and big roll batcher with Neuenhauser drive system
