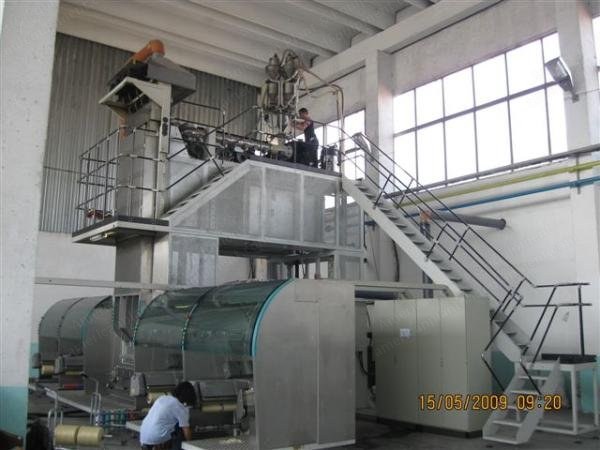

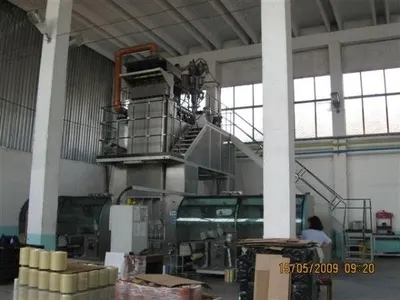

Austrofil, BCF 4x2, 2004, PP BCF Extrusion Line, 90mm Screw, 200 kg/h Capacity

Austrofil, BCF 4x2, 2004, PP BCF Extrusion Line, 90mm Screw, 200 kg/h Capacity Sold

Description

  1. Overview
    1. Extrusion line for BCF Austrofil, year 2004
    2. Monocolor type: BCF 4x2
    3. Suitable for 1100 dtex to 3500 dtex
    4. Max output (depending on yarn titer, dpf, yarn count, etc.): 200 kg/h
    5. Material: PP MFR 10-27 g/10 min
  2. Single Screw Extruder
    1. Screw diameter: 90 mm
    2. Screw length: 28 D
    3. Screw speed max: 160 min-1
    4. Engine power: 80 kW
    5. Drive system: AC engine
    6. Screw/cylinder material: Nitride steel alloy
    7. Number of heating zones (cylinder): 4
    8. Total heating capacity: 42 kW
  3. Spinning Unit
    1. Number of double spinning pumps: 4
    2. Performance of double spinning pump: 2 x 12 ccm/U
    3. Number of spinning packages: 8
  4. Cooling Unit
    1. Horizontal zones: 3
    2. Vertical zones: 4

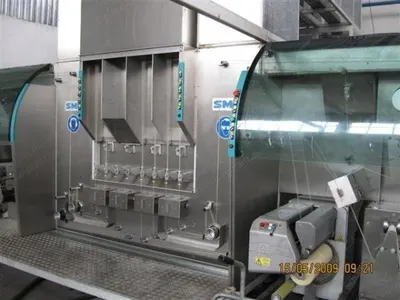

  5. Stretching Unit
    1. Number of stretching units and texturing units: 4
    2. Diameter of godets: 160 mm
    3. Stretching ratio can be variably adjusted

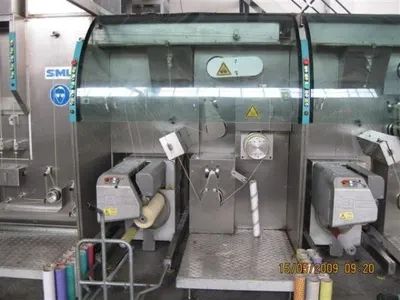

  6. Winder
    1. Number of winders: 4
  7. Application of Spinning Preparation
    1. Recommended spinning preparation (Zschimmer und Schwarz) Fasavin 2763
    2. Schill + Seilacher Limanol C167
  8. Electrical Data
    1. Total connected load of the line approx. 400 kW
    2. Average power consumption during production: 160 kW
  9. Compressed Air
    1. Average consumption of compressed air: 700 Nm3/h
    2. Max consumption of compressed air: 1200 Nm3/h
  10. Water Cooling Device
    1. Cooling performance: 88.5 kcal/h
  11. Condition
    1. In very good condition
    2. Approx. 22,000 working hours
