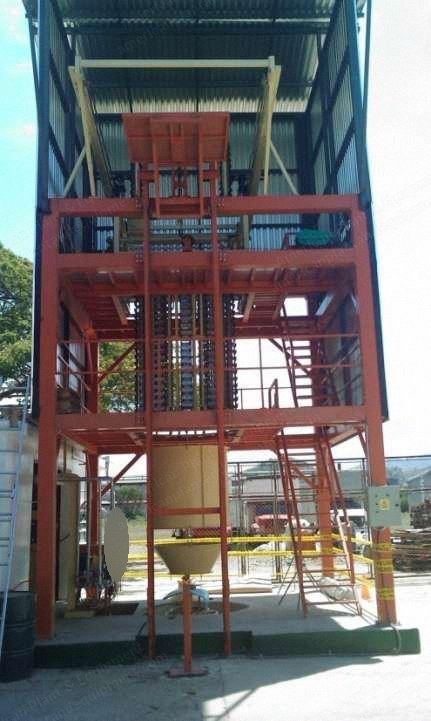

NovaStar, FG144, Vertical PU Foam Production Line, Round Foam, Max Density 26kg/m3, Max Cutting Length 3000mm (New)

NovaStar, FG144, Vertical PU Foam Production Line, Round Foam, Max Density 26kg/m3, Max Cutting Length 3000mm

Description

  1. Overview
    1. Automotive pu foam production line
    2. Makes round foam
    3. Cannot make foam of a density of more than 26 kg per cubic meter
    4. The quality of foam is suitable for the automotive market
    5. EcF-A full automatic vertical pu foam production plant produces pu foam fire protected sponge with columnar shape
  2. Performance
    1. The plant has automatic foaming, automatic clear, automatic cutting with length control and foam block lifter function
    2. The plant uses electromagnetic speed regulating asynchronous motor to control pump speed, controlled by automatic electro circuit system
    3. The control panel has digital display to adjust the speed of pump, using button and switch to operate plant
    4. Can change three different formulas without stopping production
    5. The plant equips material temperature meter, amperemeter, voltmeter, room temperature meter
    6. The mixing head uses frequency control of motor speed, equip high and low pressure alarm and auto-stop device
    7. The EcF-A plant requests moving the foam block to elevator by worker; the elevator moves the foam block down to the ground
    8. Option automatic clamp device to move the foam block to elevator fully automatically
    9. The plant equipped with cold and warm water device to constant temperature of PPG and TDI by manually operated valve; option automatic constant temperature device
  3. Consisting Of
    1. 8 tanks
    2. Pre-mix ground tank: one pre-mix ground tank with 0.8 m³
    3. Cold and hot water device: one set 8 hp cold and hot water device for PPG and TDI temperature control
    4. Control system: foaming pump using electromagnetic speed regulating asynchronous motor to control rate of flow; mixing head using frequency motor to control speed; plant using normal circuit, button and digital panel to control plant to automatic operation; control system can change three different formulas without stopping production when foaming
    5. Block cutter system: block cutting device and elevating device auto-synchronous, using serrated blade and tri-optoelectronic switch to set cutting length, can change length at any time; cutting system equipped counter; max cutting length is 3000 mm
    6. Lifting system: top platform has elevator system, moving the foam block to the ground; foam block was moved to elevator by manual; option automatic clamp device to move the foam block to elevator fully automatically
    7. Mixing head: power 7.5 kW; max speed (inverter control of motor speed) 6000 rpm; inverter Delta; output 20-48 L/min
    8. Option foaming diameter: diameter 1200 mm, foaming density 10-35 kg/m³; diameter 1380 mm, foaming density 10-30 kg/m³; diameter 1450 mm, foaming density 10-25 kg/m³
    9. Power: 480 V, 3 phase, 60 Hz
