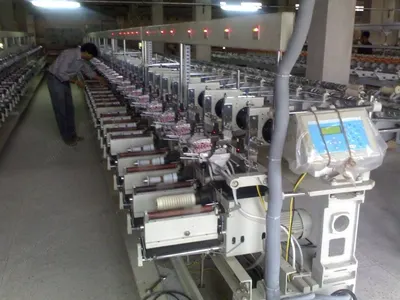

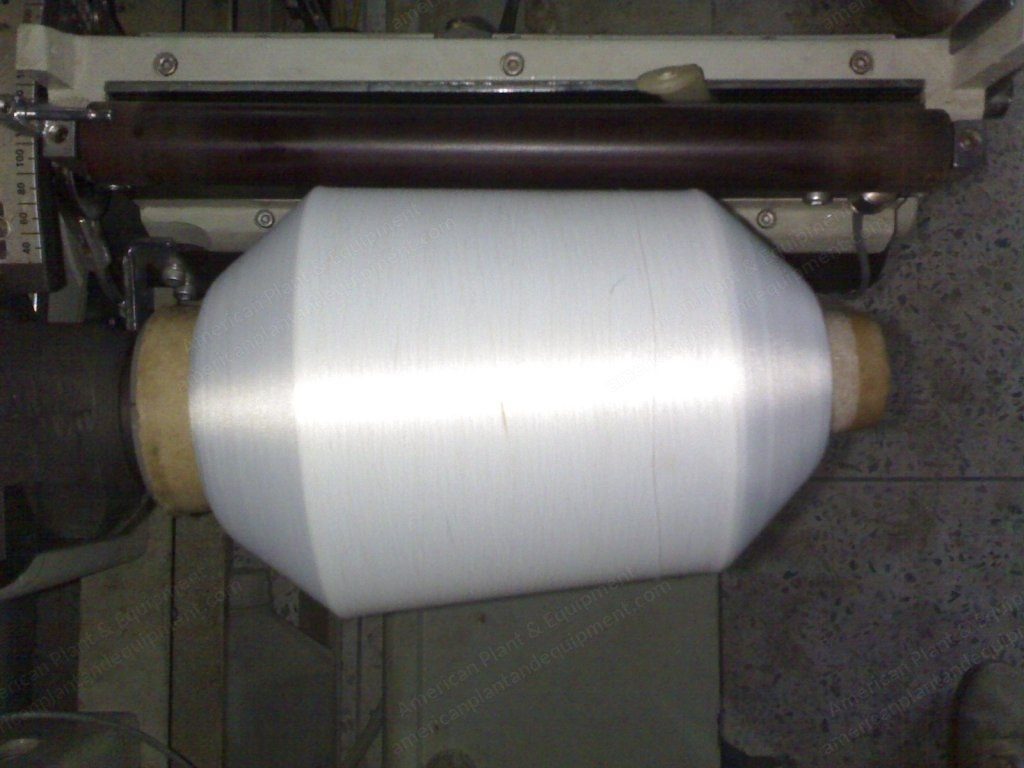

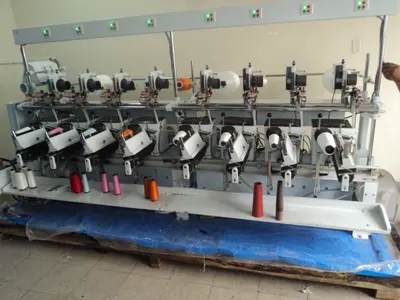

For producing precision-wound cone of polyester filament yarns at constant yarn speed through smart controller
Spindle Drive and Control
Each spindle is independently driven by a separate motor of 0.5 hp controlled by an individual frequency inverter
Individual starting/stopping of each spindle with visual display
Yarn Path and Tension
Self-adjusting lattice type yarn tensioner with setting for reducing tension with increase in package diameter
Over feed attachment on each position
Manually adjustable ceramic yarn clearer
Yarn lubrication attachment permitting continuous variation of oil dose, with oil level control, oil filter, distributor and oil vessel with the help of oil pump
Winding Specifications
Conicity 3 deg. 30 min
Yarn crossing ratio of 5.06 (included); other crossing ratio gears (6.36) can be supplied on option
Length of traverse – 8" (200 mm)
Disturber mechanism for periodically displacing the yarn at the edges during the winding operation to ensure perfect soft cheese formations, three-phased speed vee-belt drive
Sensors and Stop Motion
Electronic non-contact yarn sensors for sensing the presence of yarn
Automatic stop motion in case of yarn breakage with visual display
Auto Length Controller System
Cpu with higher processing speed
Liquid crystal display unit with advanced features
Shift utility
Report for maximum 50 shifts
Calculation of density and length
Data feeding with password protection
Memory recipe with yarn winding formats
