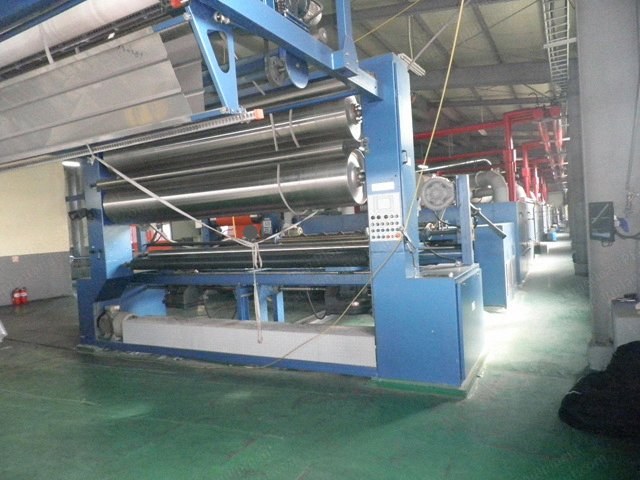

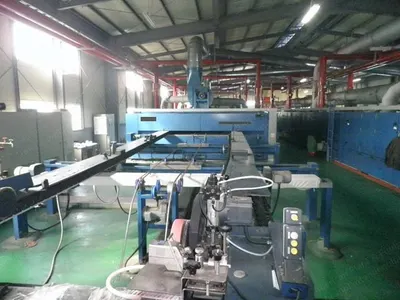

Eh-Wha, 2008, Gas Tenter, 3400mm, 10 Chambers, Pin Chain

Eh-Wha, 2008, Gas Tenter, 3400mm, 10 Chambers, Pin Chain

Description

  1. Overview
    1. 10 chambers
    2. Width: 3400 mm
    3. Year: 2008
    4. Roller width: 3600 mm
    5. Horizontal chain pin type
    6. Cloth speed: max, 100 m/min
    7. Gas heating system
    8. Electric power: 3 phase x 60 Hz x 380 V

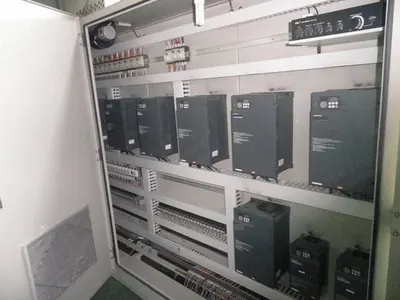

    9. Inverter driving system

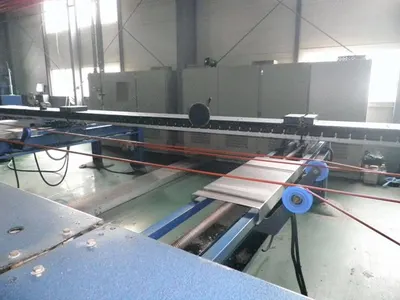

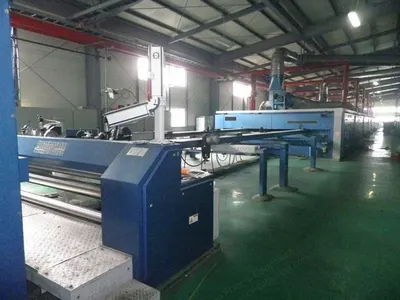

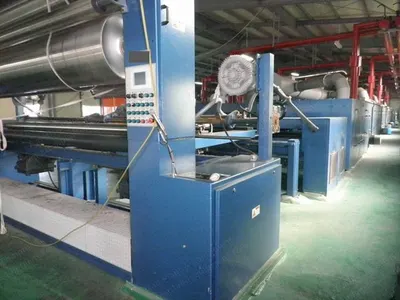

  2. Entrance
    1. Guide ring
    2. Tension bar
    3. Textar guider

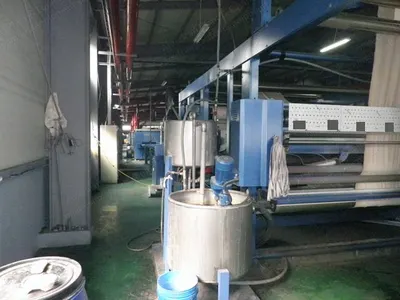

    4. 2 bowl padding mangle
    5. Auto overfeed: electronic control type overfeed device

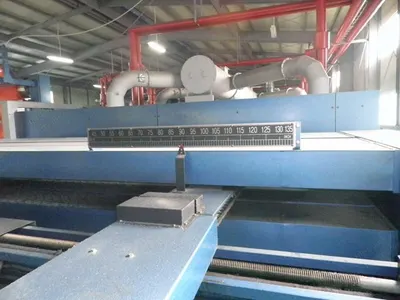

    6. Rail guider with automatic position control detector
    7. Selvedge uncurler
    8. Over feed tensioner
    9. Salvage keeper
    10. Rail safety device
    11. Screw expansion roll

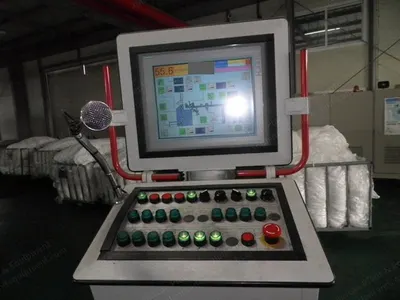

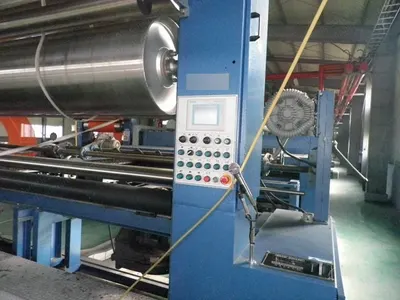

    12. Touch screen t.v. monitor system

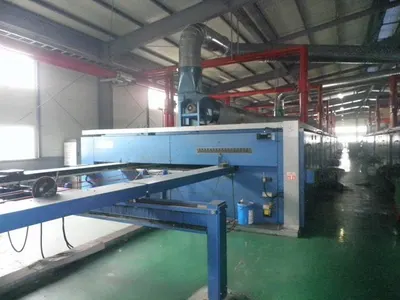

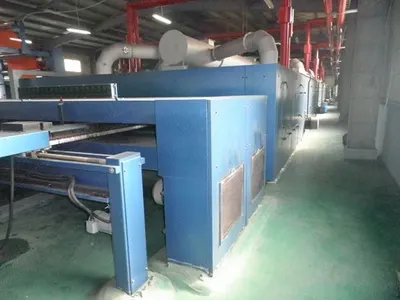

  3. Dry And Heat Setting Chamber

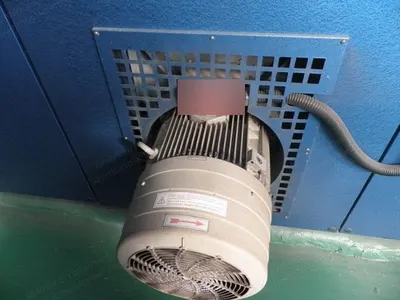

    1. 10 hot air circulation fan and motor
    2. Air floating system hot air injection nozzle
    3. Heating exchanger
    4. Exhaust duct with fan motor
    5. 10 gas burner (Maxson, USA)
  4. Cooler
    1. Air cooling fan and nozzle

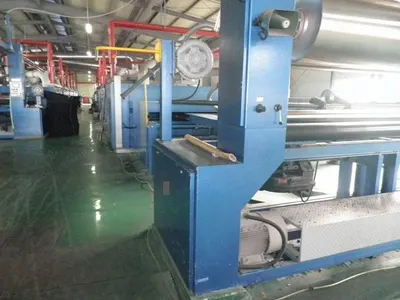

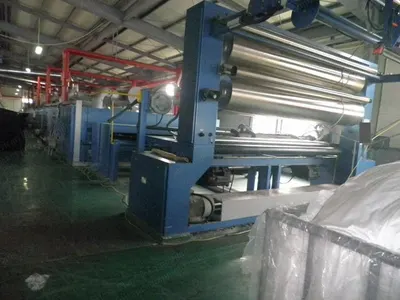

  5. Main Drive
    1. Driving arrangement

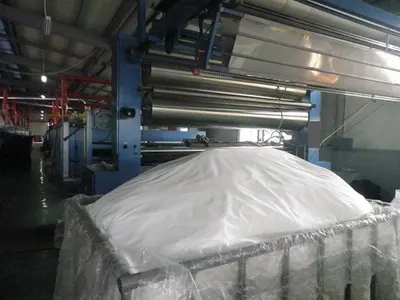

    2. 2 bowl cooling cylinder
    3. Plaiting down device
    4. Main control panel
